Dare Truss Bridges

Home | Old PWD Truss Bridges | McDonald Truss Bridges | Allan Truss Bridges | de Burgh Truss Bridges | Dare Truss Bridges | Other Bridges


The final type of timber truss bridges are the Dare truss bridges.  In 1903, Harvey Dare took the Allan truss design and updated it to include a steel bottom chord like the de Burgh truss but tweaked it to eliminate the pins of de Burgh's design.  The result stronger and maintenance was easier. Dare trusses are pretty much an Allan truss with a steel bottom chord and from a distance, look exactly the same. Dare trusses were built from 1905 to 1936 with 44 built in this period.

Statistics
Number built:    44
Number remaining:    16
Number to be preserved:    7

Bridge Name
Date Built
# of Spans
Location
Waterway Name
Status
To be preserved?
Bendemeer
1905
1
Bendemeer
Macdonald River
Preserved
Yes, as footbridge
Briner
1908
1
East of Grafton
Coldstream River
Not rebuilt
Yes
Bulga
1912
2
Bulga
Wollombi Brook
Partially rebuilt
No
Camerons
1930
1
Upper Rouchel
Rouchel Brook
Not rebuilt
Not sure - this is a council bridge
Colemans
1908
2
Lismore
Leycester Creek
Rebuilt
Yes
Coonamit
1922
2
South of Moulamein
Wakool River
Rebuilt
No
Coorei
1906
1
Dungog
Williams River
Partially rebuilt
No
Gee Gee
1929
1
Swan Hill - Barham Rd
Wakool River
Partially rebuilt
No
Junction
1930?
1
Upper Rouchel
Rouchel Brook
Not rebuilt
Not sure - this is a council bridge
Korns Crossing
1916
1
West of Murwillumbah
Rous River
Not rebuilt
No
Minneys
?
1
Clarence Way
?
Closed
No
New Buildings
1921
3
New Buildings
Towamba RIver
Partially rebuilt
Yes
Rawsonville
1916
2
West of Dubbo
Macquarie River
Not rebuilt
Yes
Scabbing Flat
1911
2
South of Geurie
Macquarie River
Not rebuilt
Yes
Sportsmans Creek
1911
2
Lawrence
Sportsmans Creek
Not rebuilt
No
Warroo
1909
1
50km west of Forbes
Lachlan River
Not rebuilt
Yes

Bendemeer Bridge

Back to top
This bridge was the first Dare type truss to be built.  It was constructed in 1905 over the Macdonald River in Bendemeer and carried the New England Highway till a bypass was built in the 1980s. The bridge has been preserved as a pedestrian bridge. I passed through Bendemeer after sunset so my photos were taken using long exposures with some lit with a torch.

Bendemeer1

View of the bridge from the upstream north side.

Bendemeer2

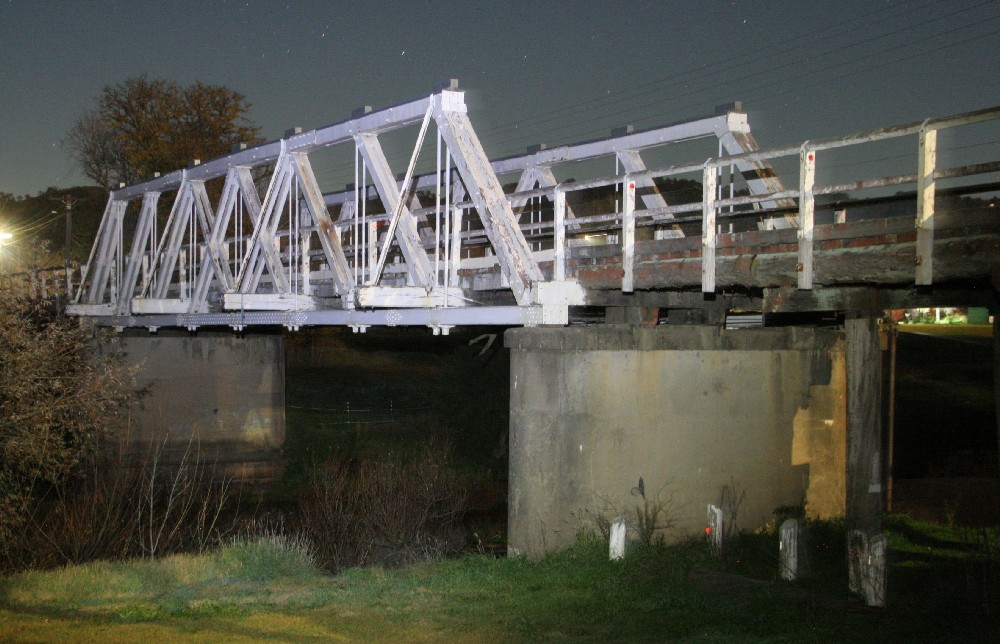

 View from downstream north side

Bendemeer3

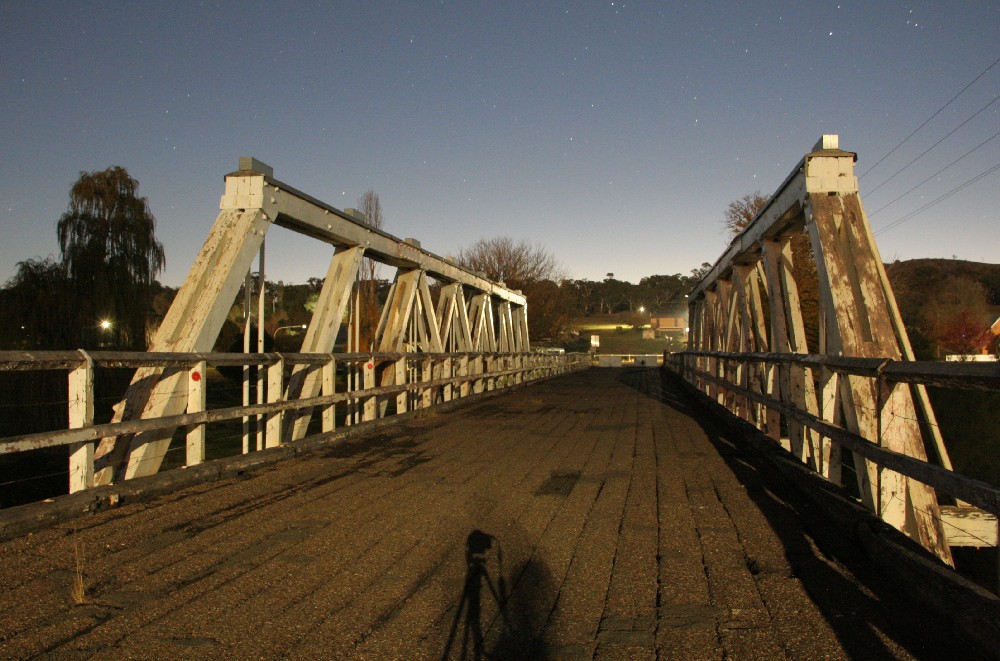

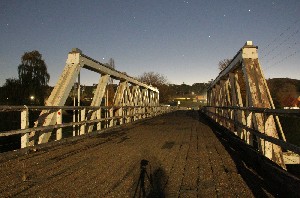

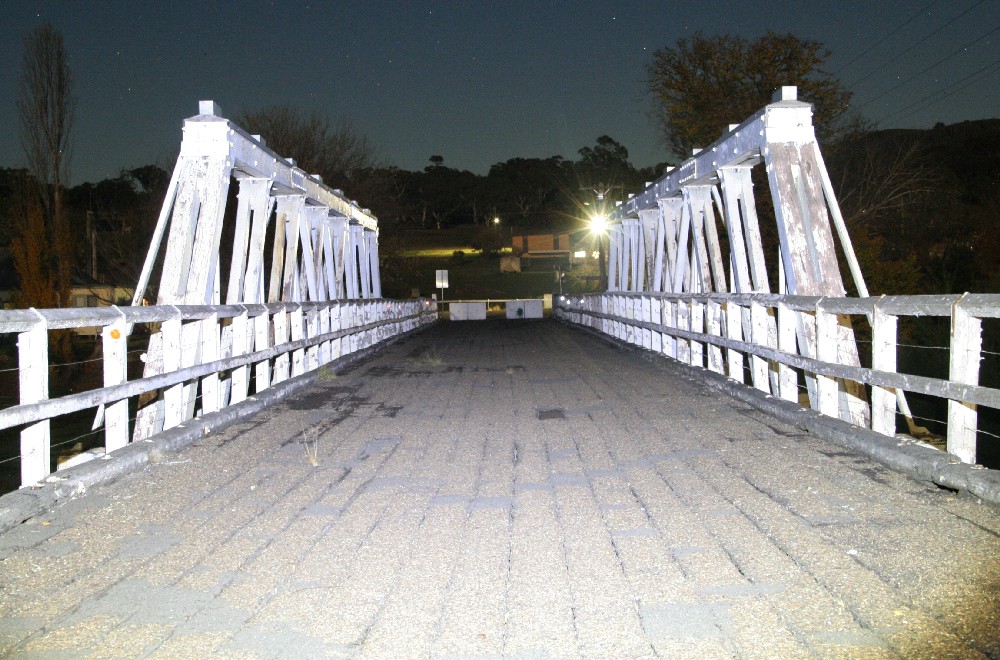

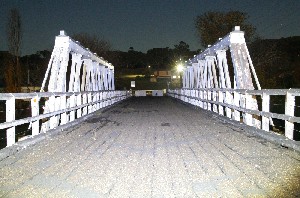

View of the original deck.




Briner Bridge

Back to top
Briner Bridge was constructed in 1908 over the Coldstream River.  It is located on Coldstream Tce, east of Ulmarra and about 23 east of Grafton. This bridge has had the sloped weather shielding installed on all parts of the truss.  This detracts from its looks a bit.  However, the day I was here I had perfect weather and light angles for photography of this bridge! The bridge is pretty much original with the rattly, clanking deck that makes driving over it much fun for a bridge enthusiast.

Briner1

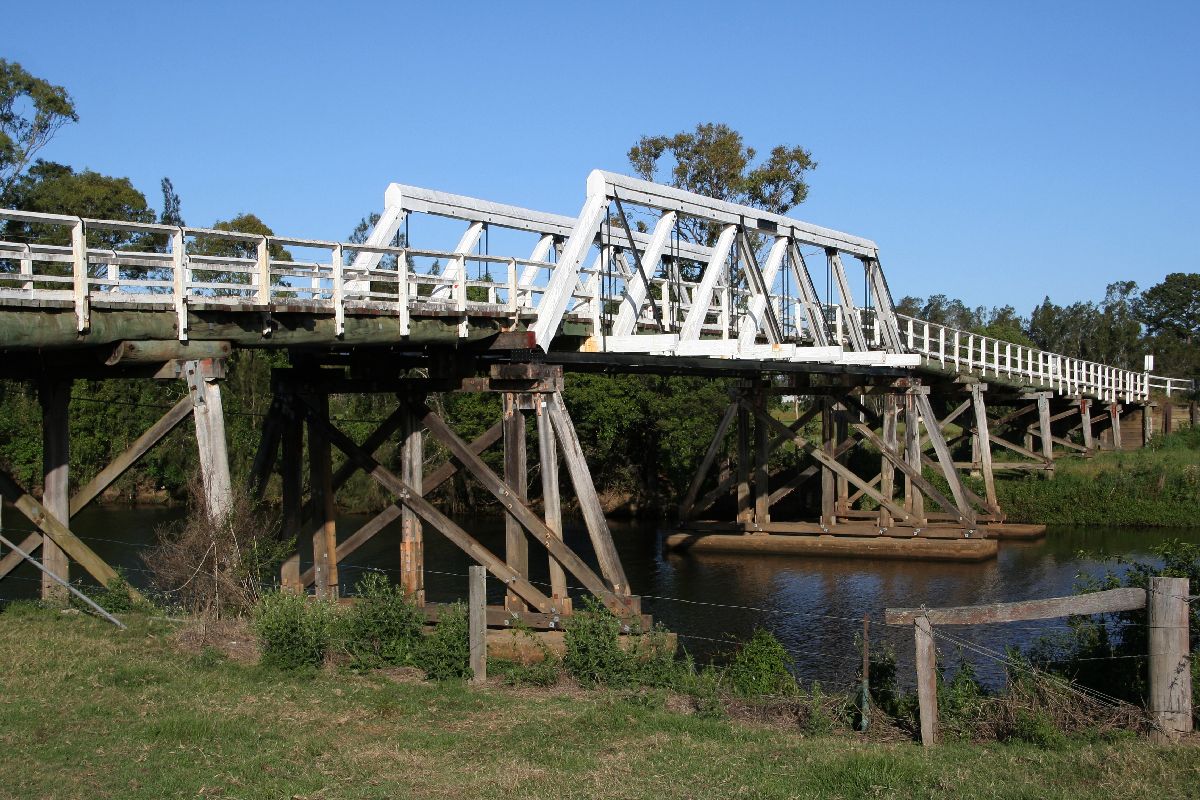

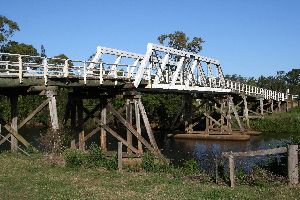

View of the bridge from the south west side.

Briner2

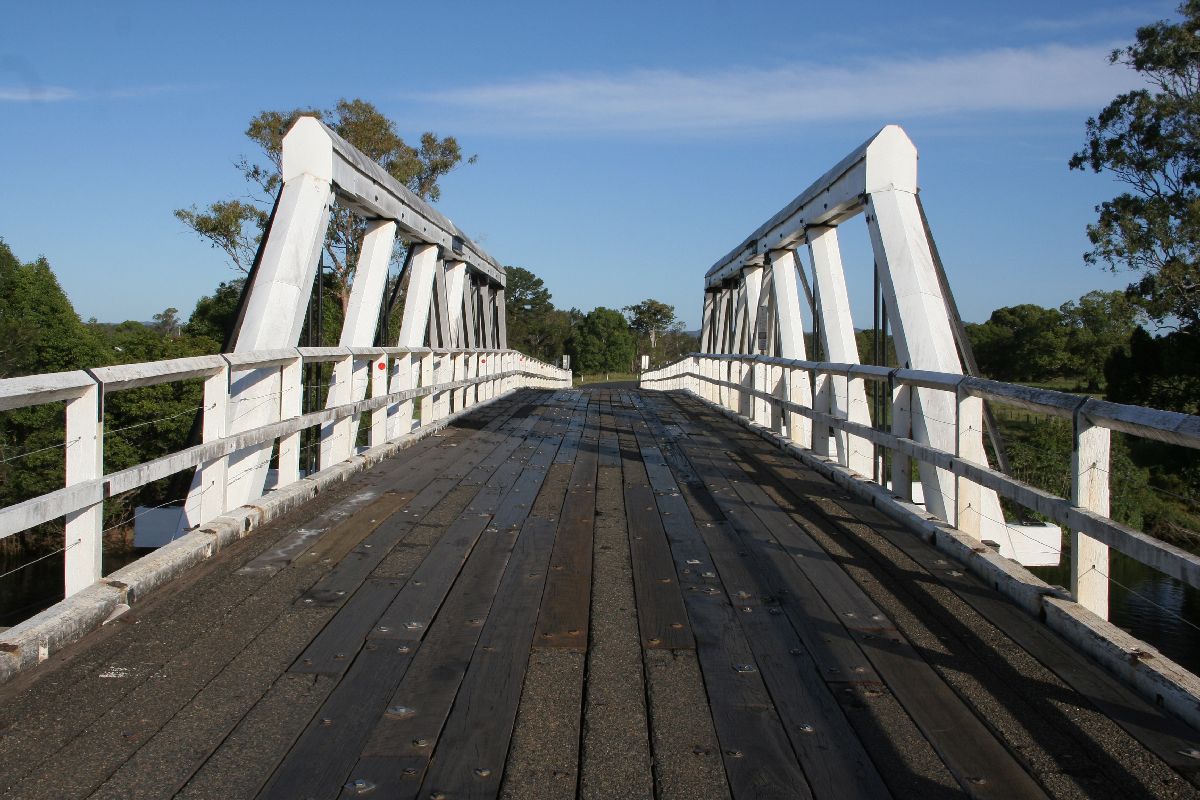

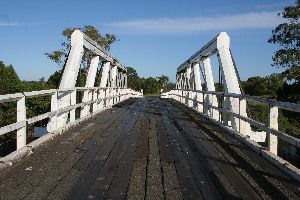

View from the west end.

Briner3

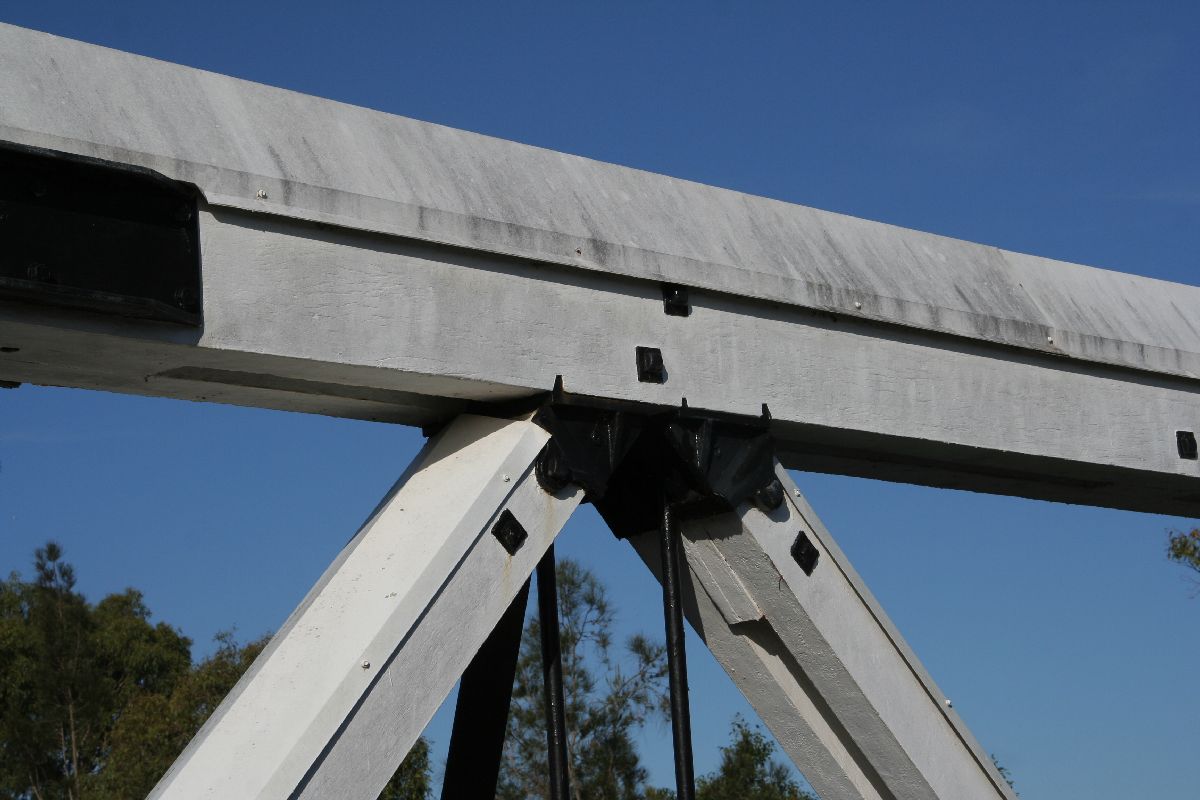

Detail of the truss and weather shielding..

Briner4

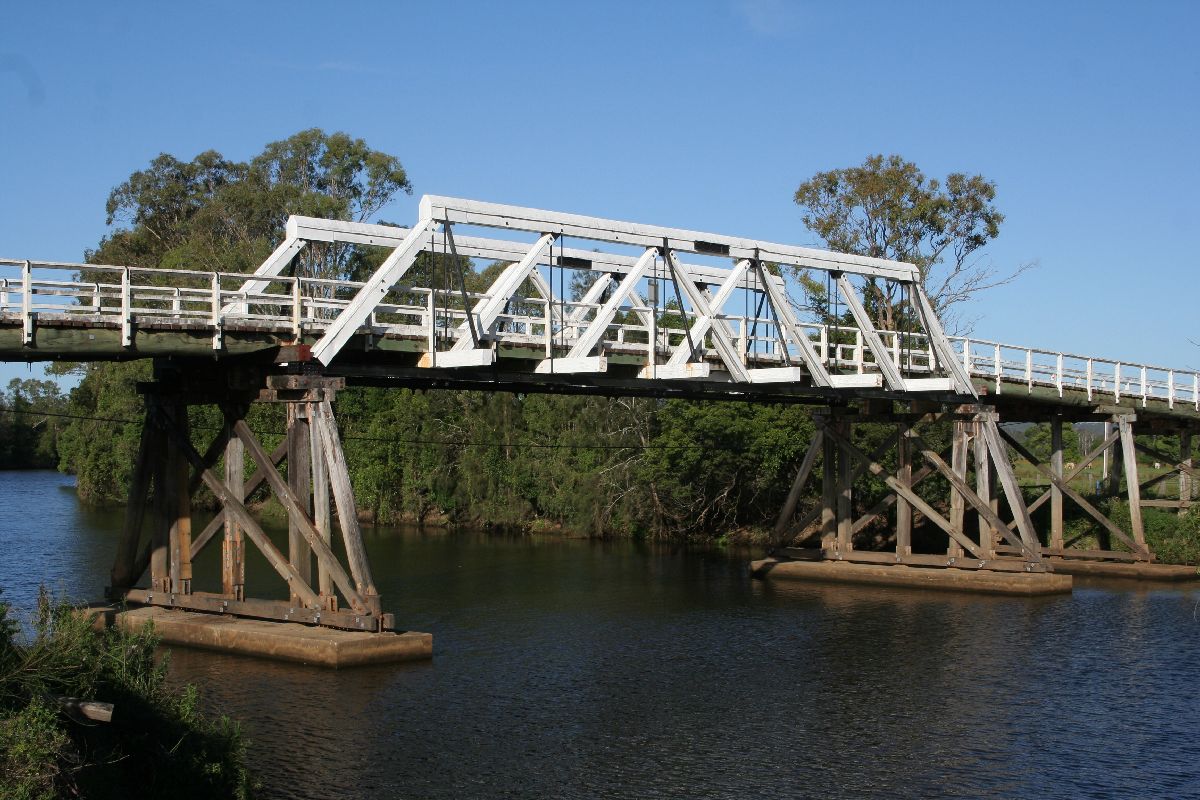

View from the south west side.

Briner5

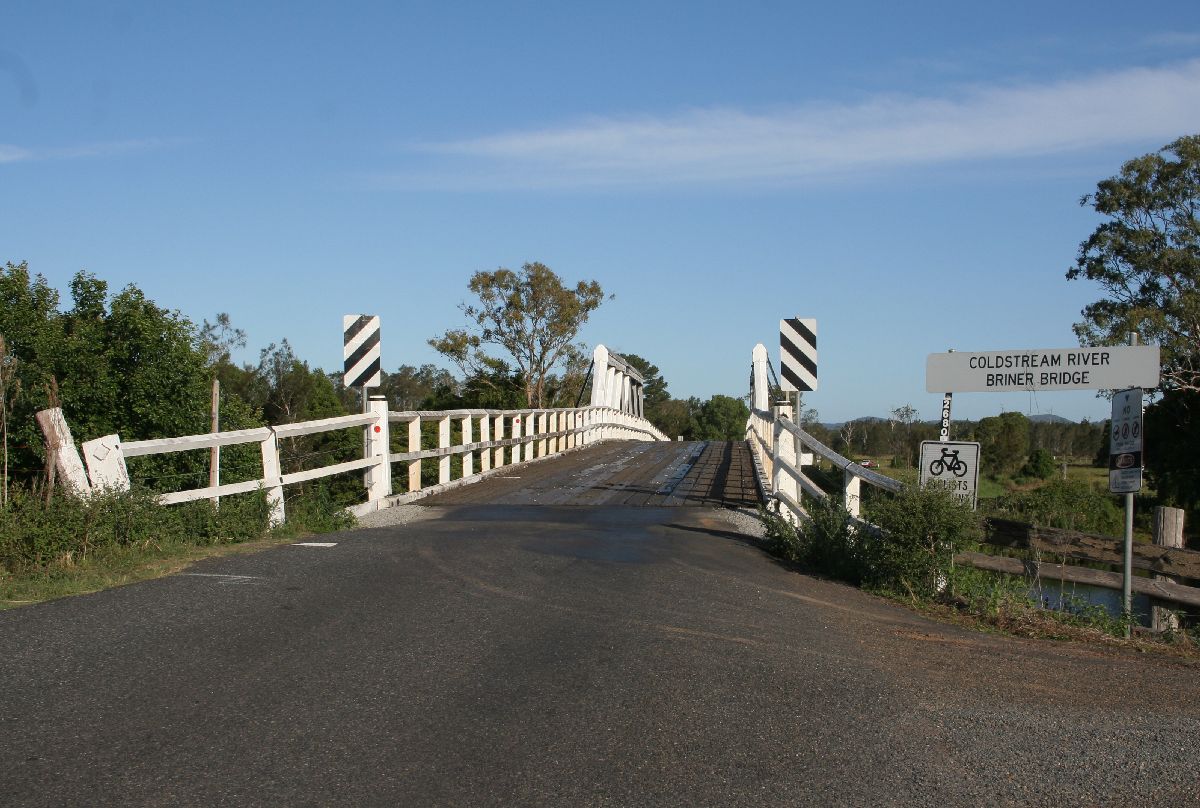

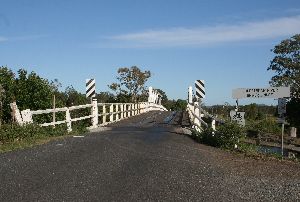

View from the west end.

Briner6

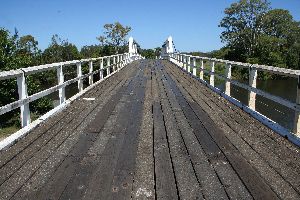

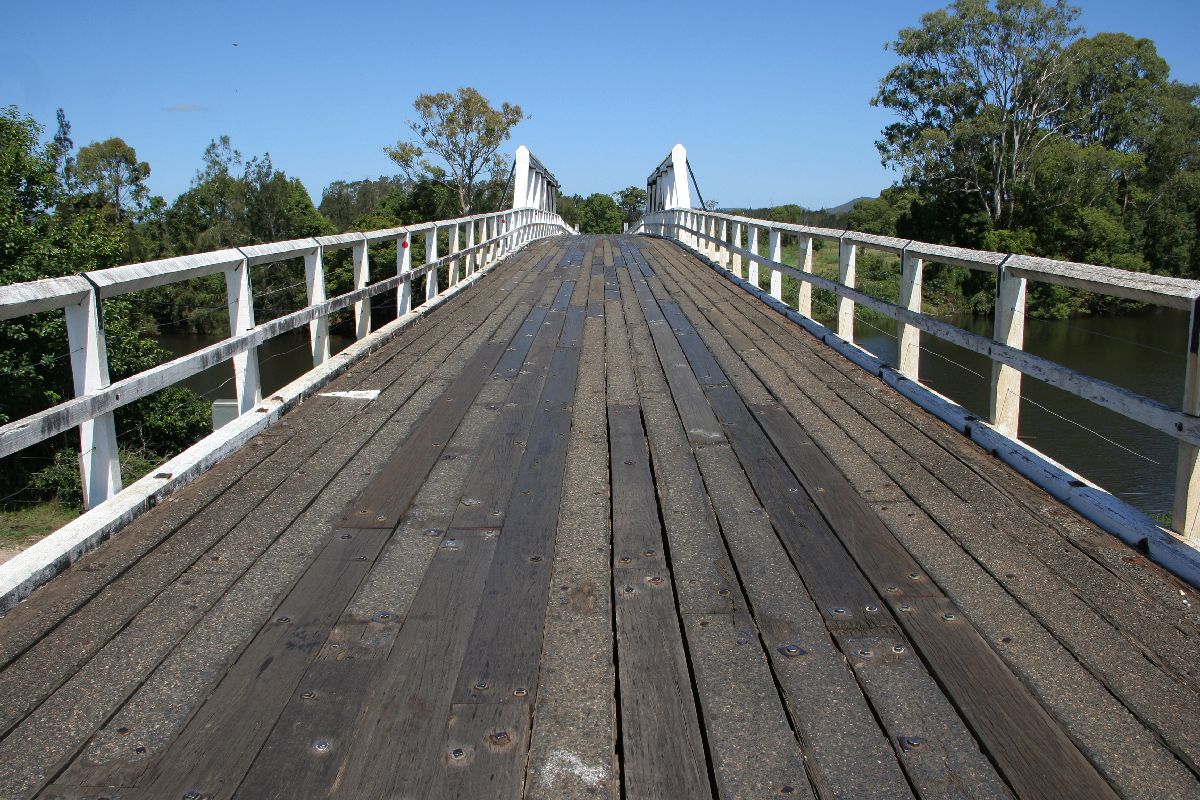

View of the deck. This bridge still has the original style deck planking.




Bulga Bridge

Back to top
This bridge is located on Putty Road, just north of the locality of Bulga. It is a two span bridge crossing Wollombi Brook and was built in 1912. It has the longest truss spans of a Dare truss of 31.9 metres (105 feet). The bridge has had heavy maintenance carried out which included placing new bitumen on the deck and repainting.  The bridge looks good as a result especially as it does not have weather shielding installed. This bridge is not going to be preserved.

Bulga1

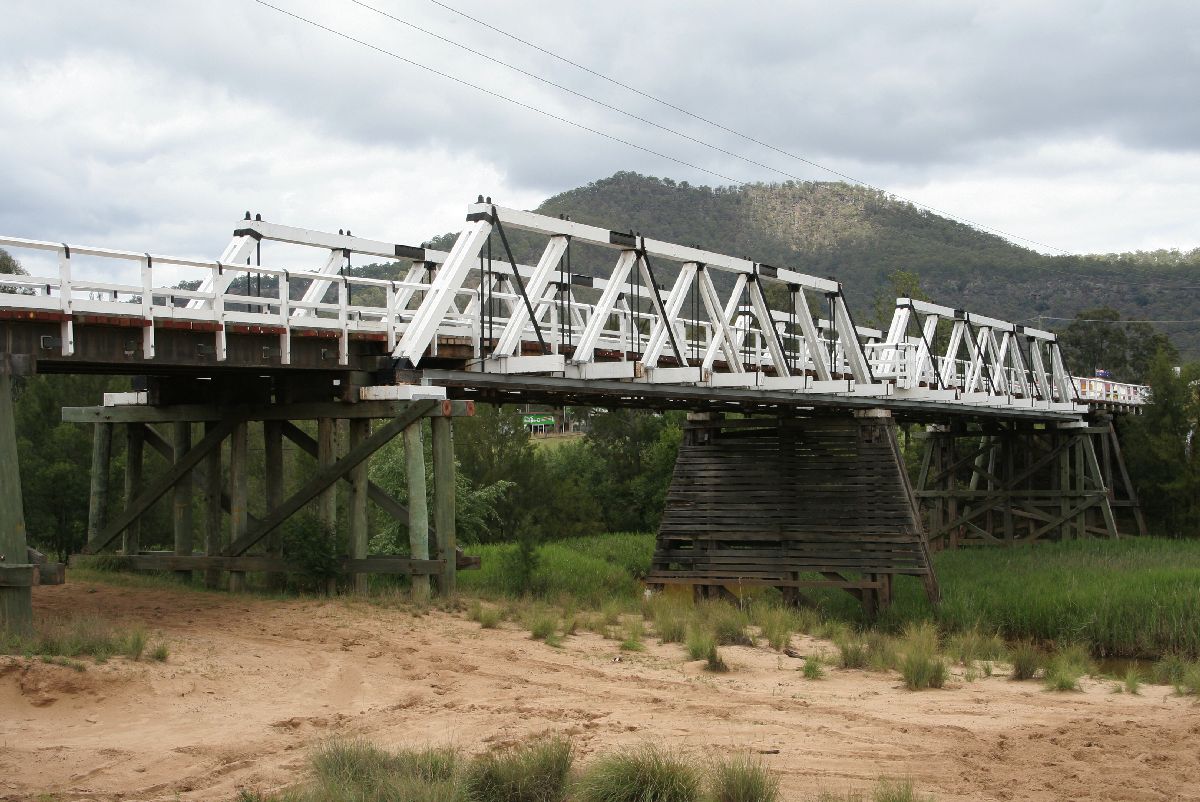

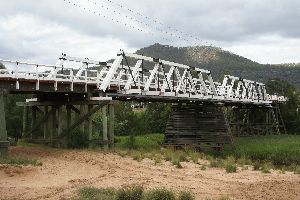

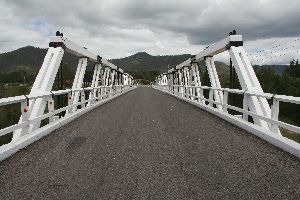

View of the bridge from the north east side.

Bulga2

View from the east end.

Bulga3

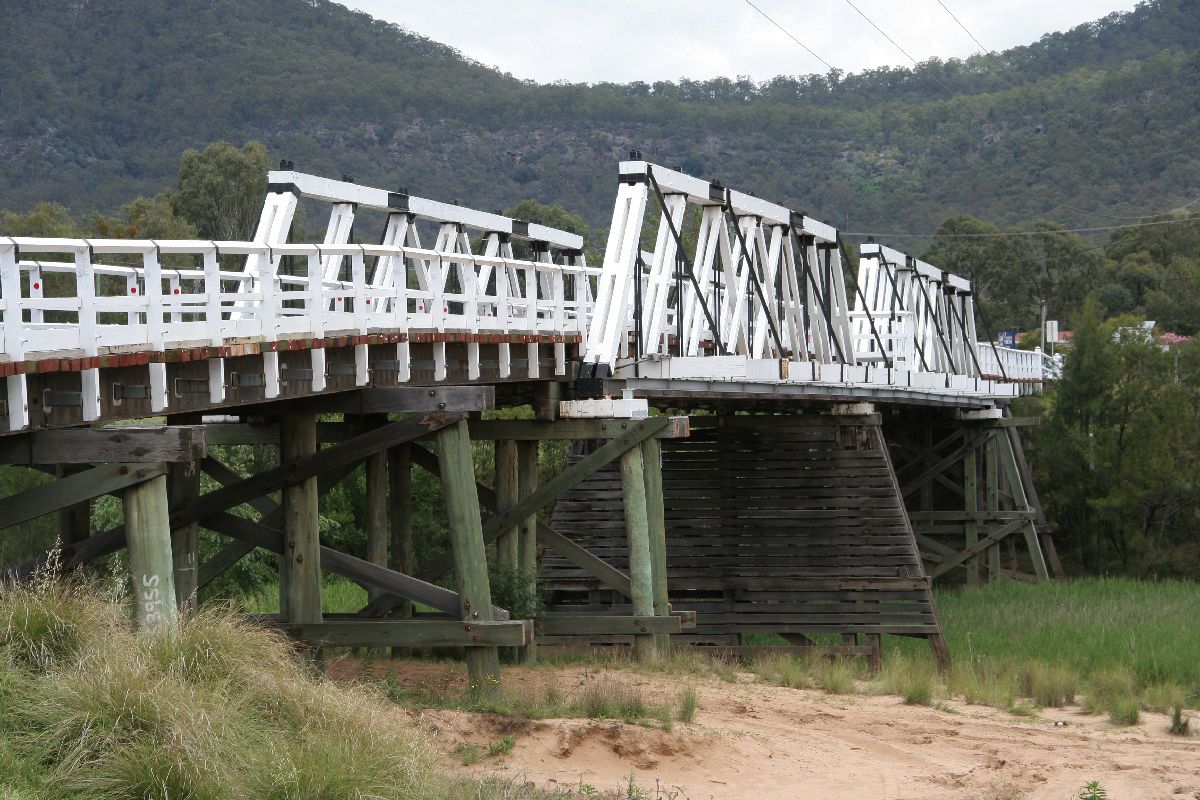

Closer view from the north east side.

Bulga4

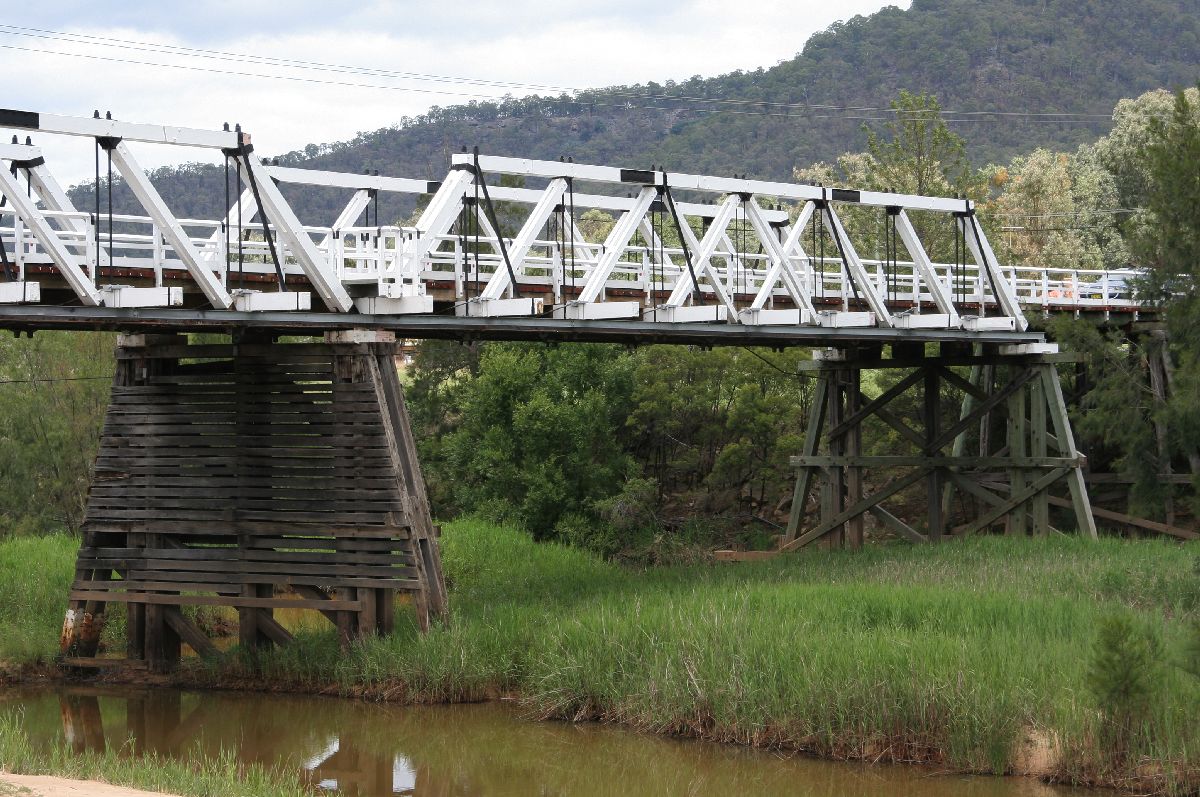

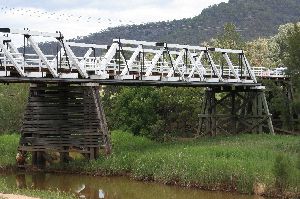

Close view of one of the trusses.

Bulga5

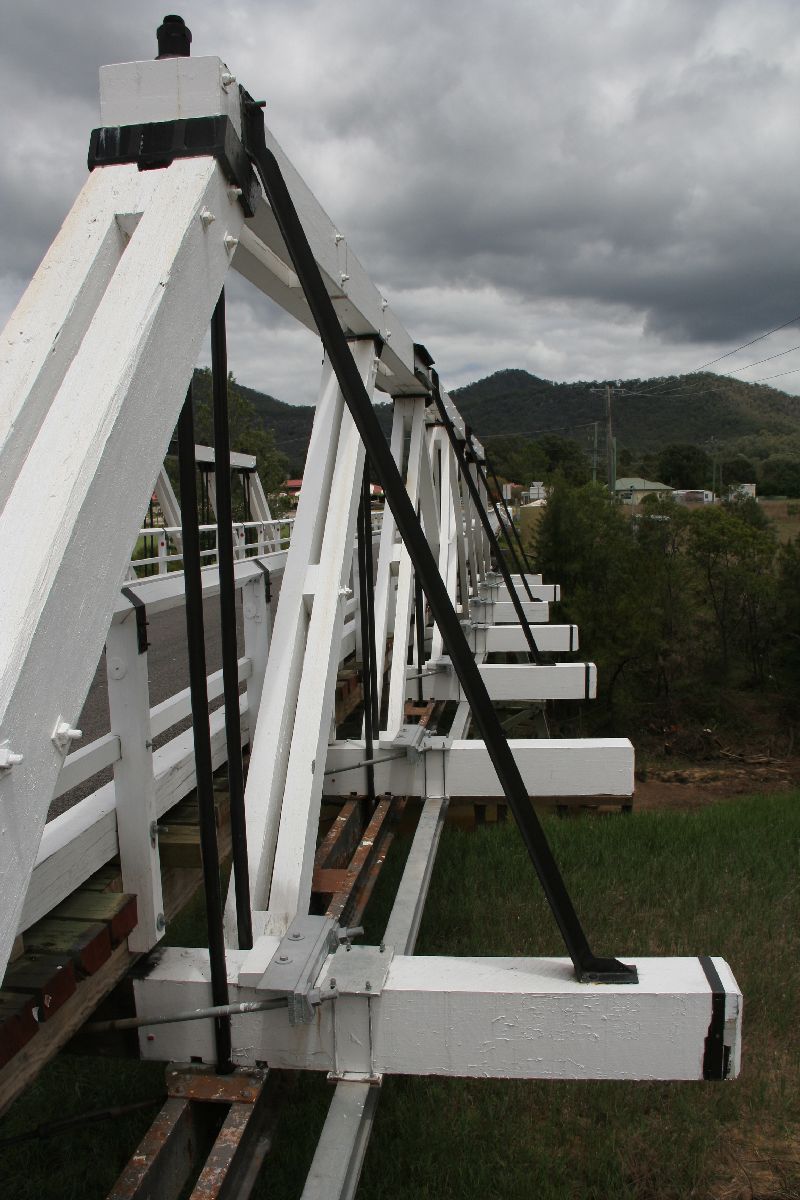

Detail of the bottom chord. The outer rail is used to suspend maintenance gantries.

Bulga6

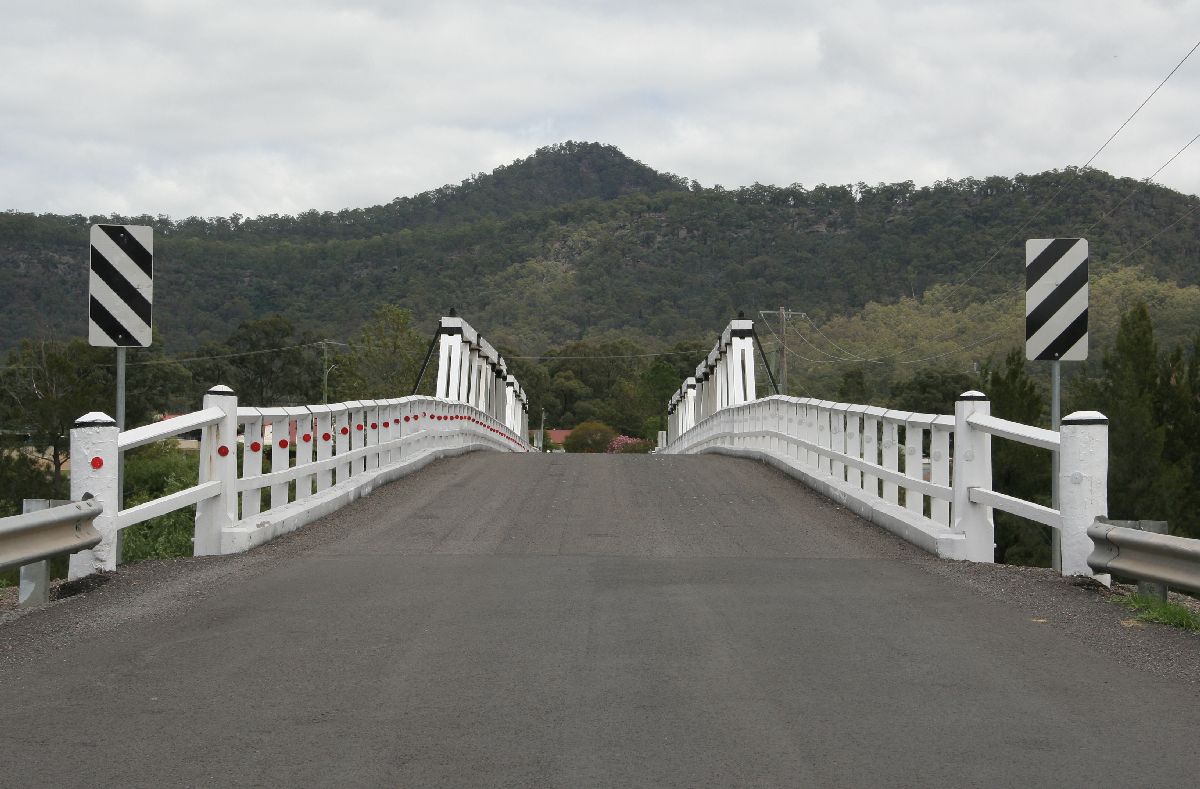

View from the east end. The bridge has quite a hump which makes it difficult to see traffic coming the other way.

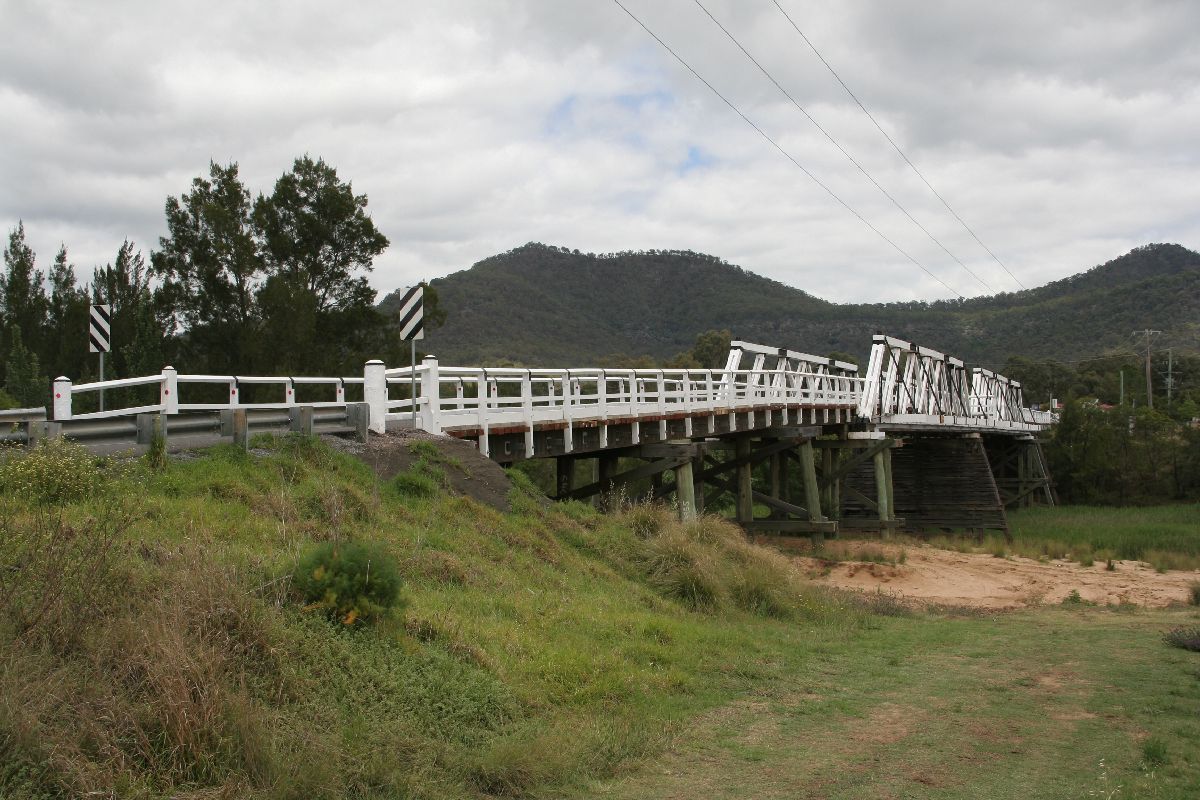

Bulga7

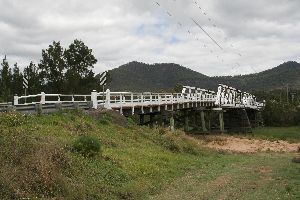

View of the bridge with approaches from the east side.

Bulga8

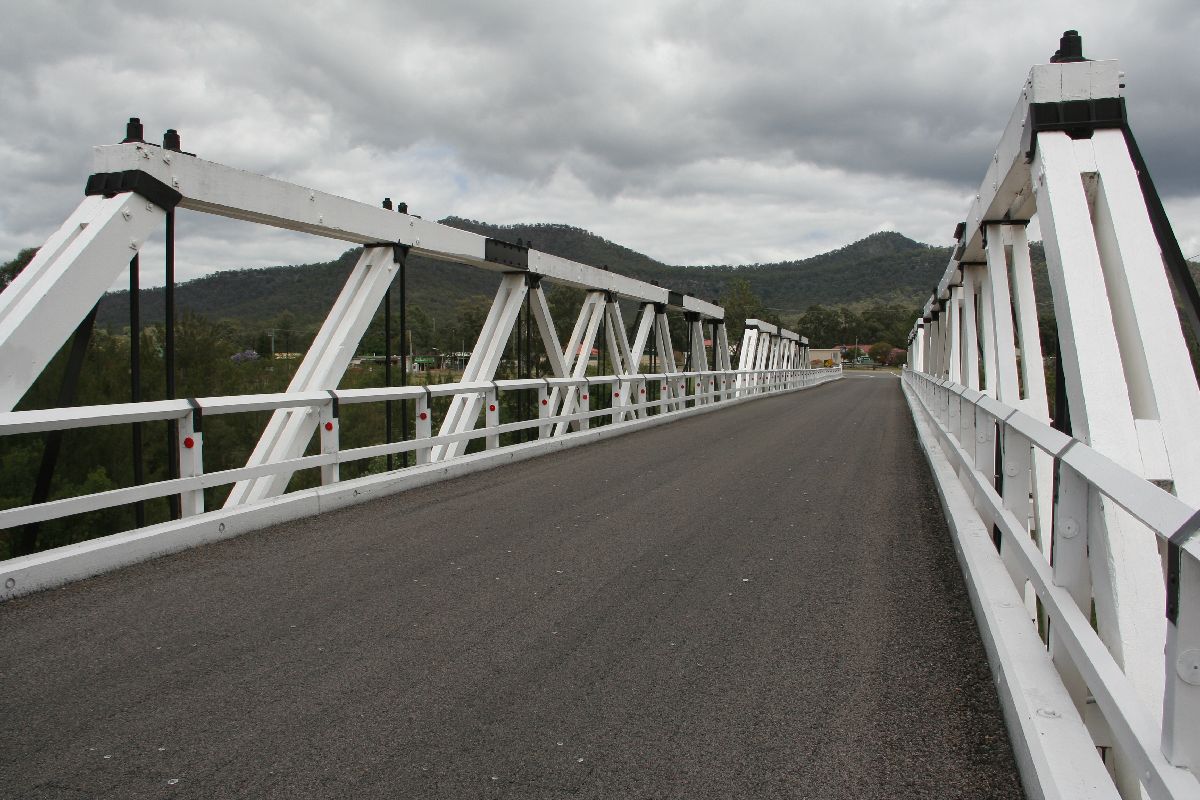

View of the deck and trusses.




Cameron Bridge

Back to top
Cameron Bridge is a single span bridge located on the road to Upper Rouchel (Rouchel Road) about 22km east of Aberdeen. It crosses Rouchel Brook and was built in 1930. This bridge is a council owned bridge, I am not sure if it is going to be preserved.  It is completely original and was built with concrete piers.

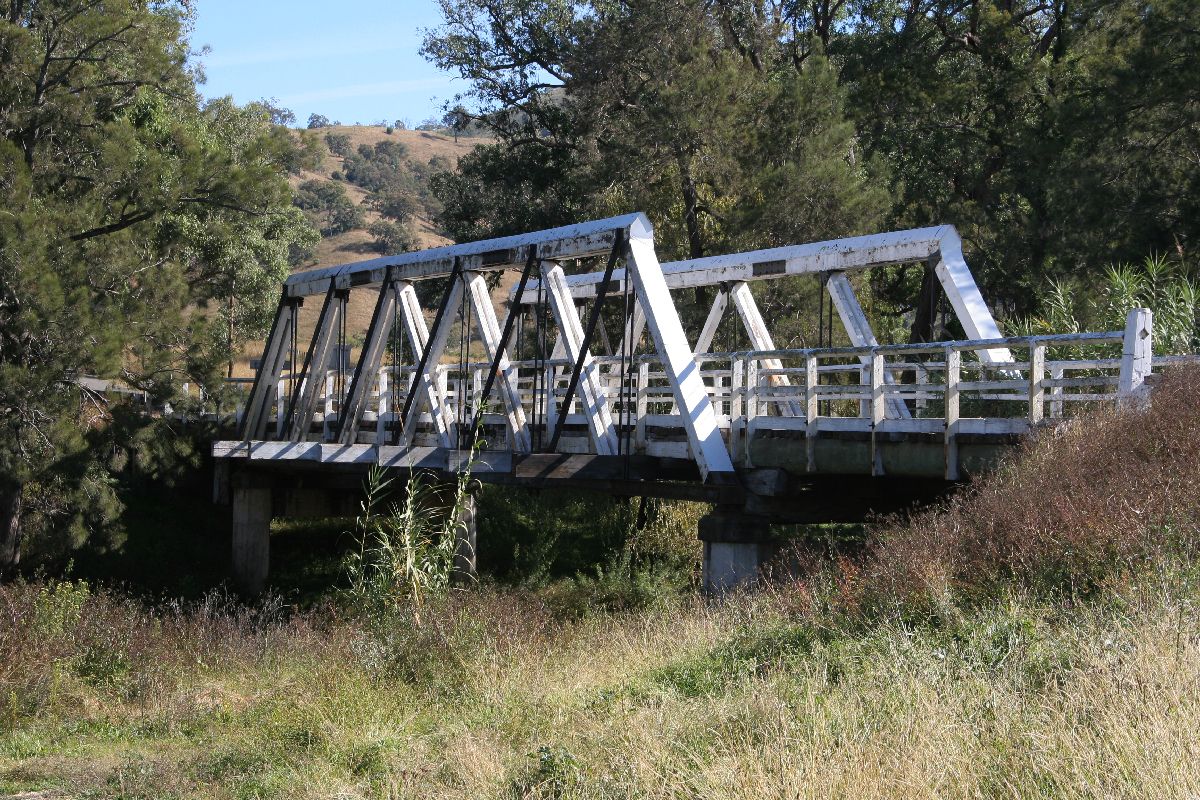

Cameron1

View of the bridge from the north east side.

Cameron2

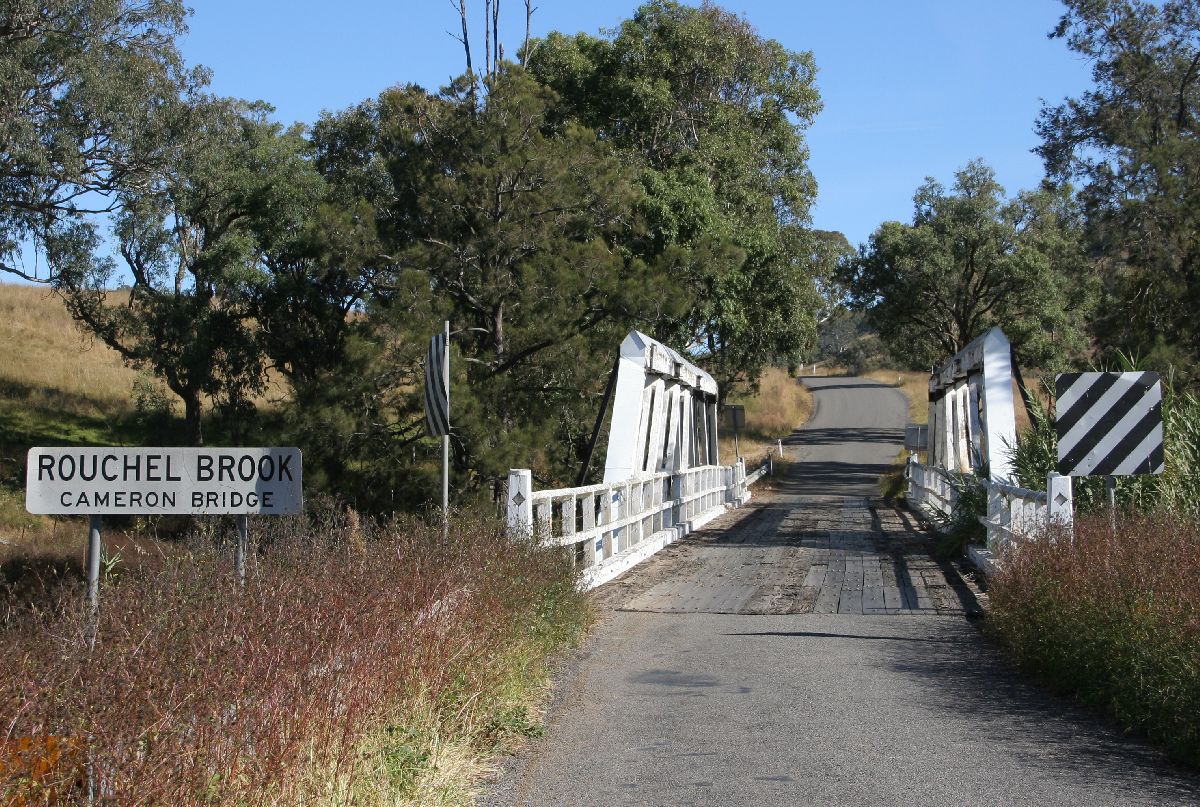

View from the east end.

Cameron3

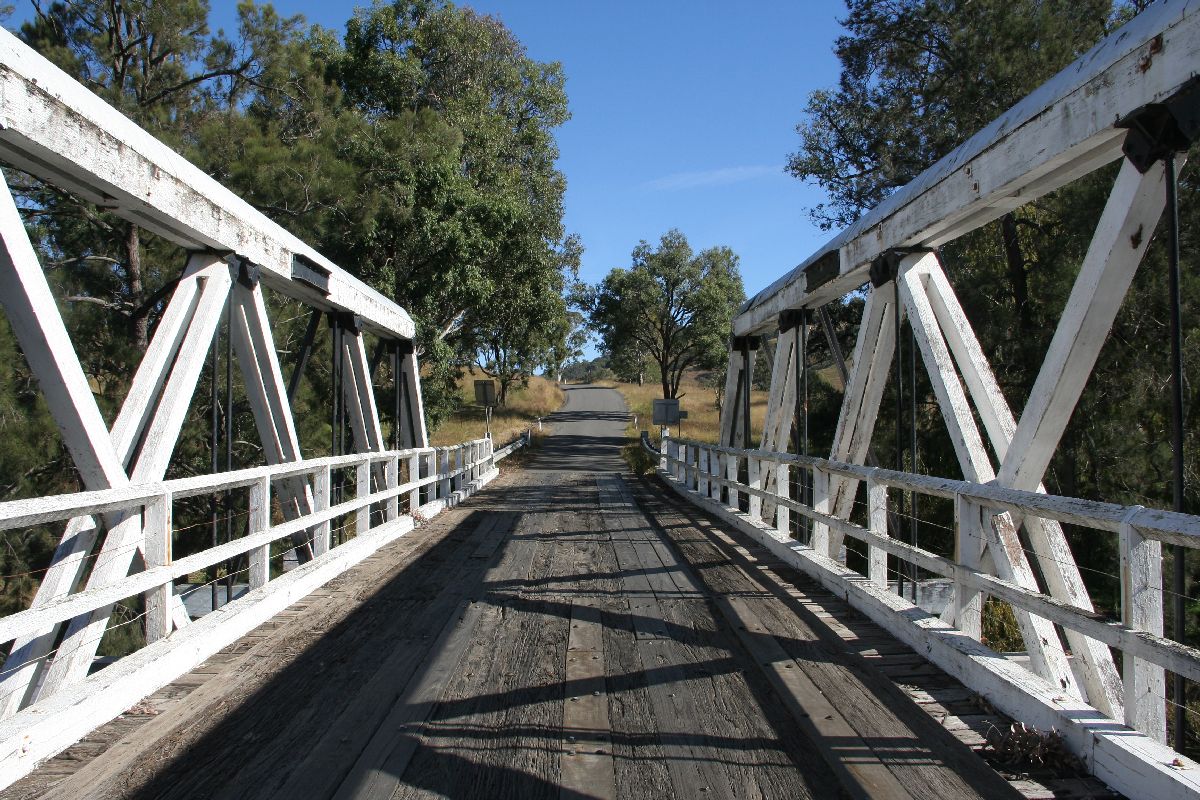

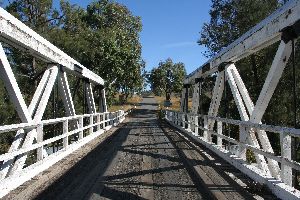

View of the deck and trusses.

Cameron4

Detail of the steel bottom chord.

Cameron5

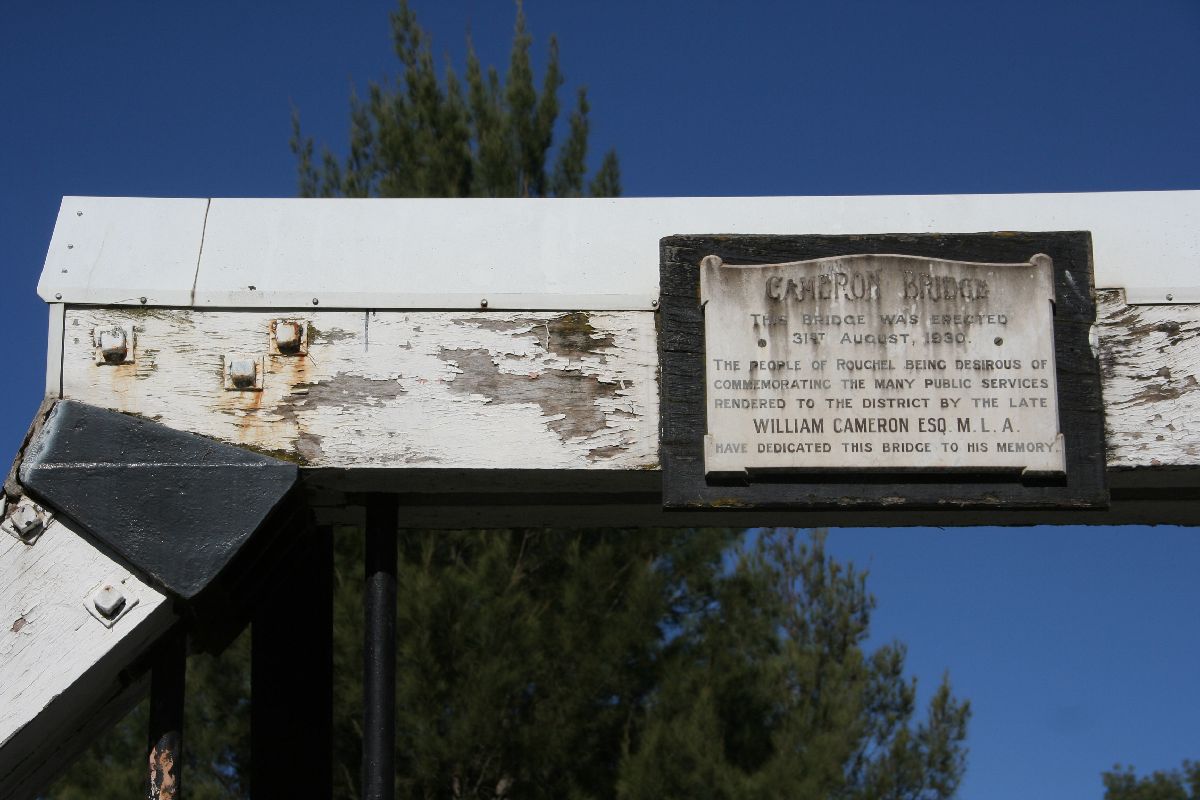

Information plaque.

Cameron6

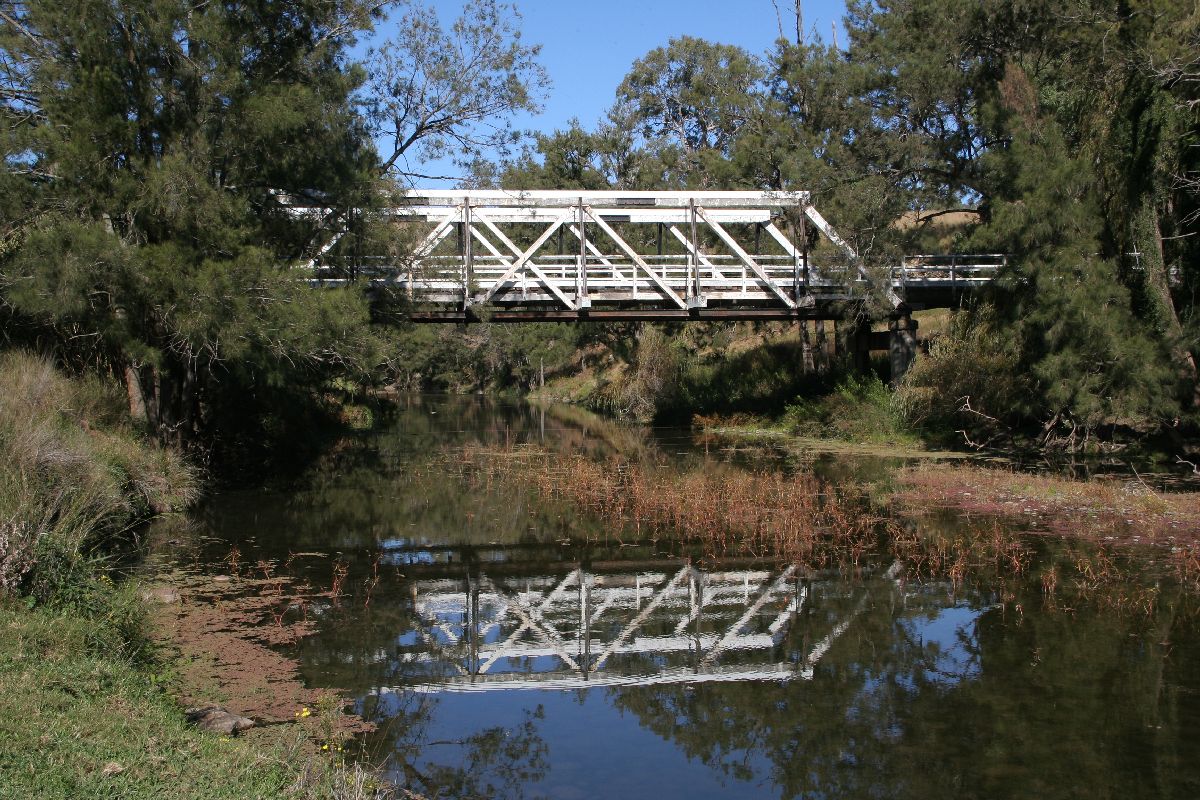

Side view of the truss and the river.

Cameron7

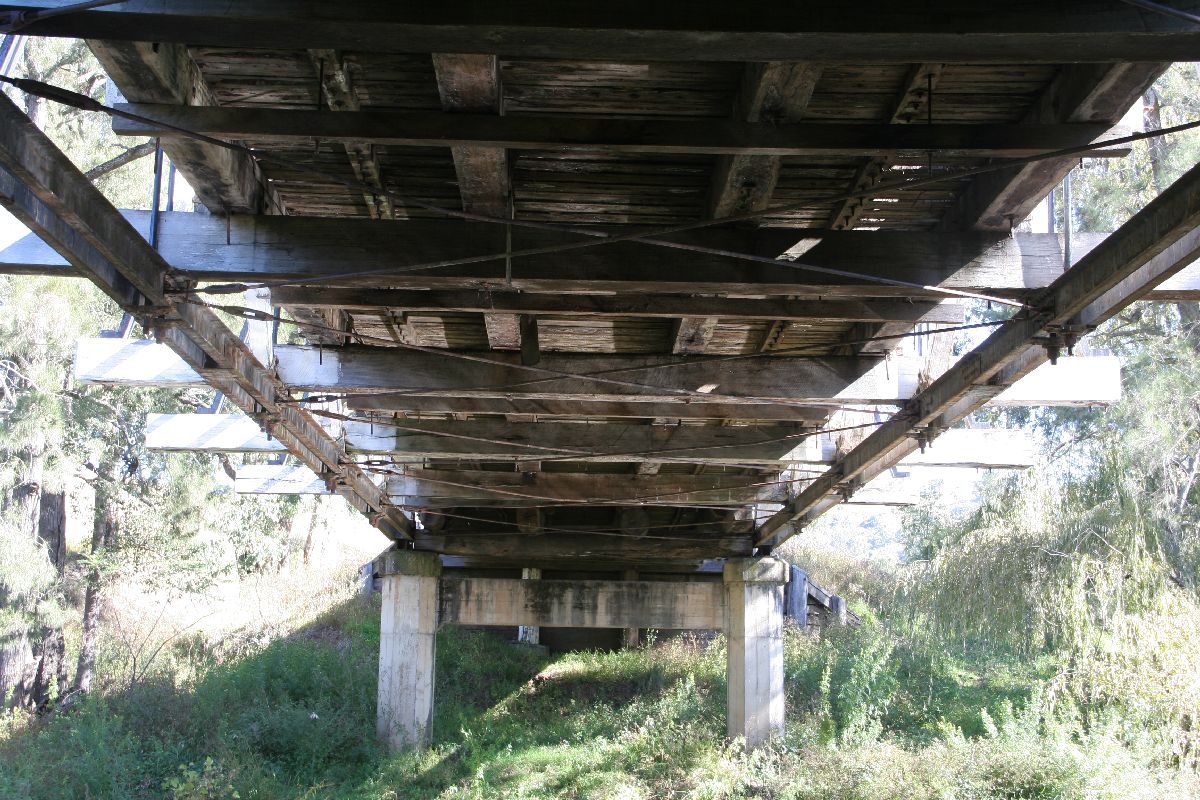

View of the underside showing the concrete piers.

Cameron8

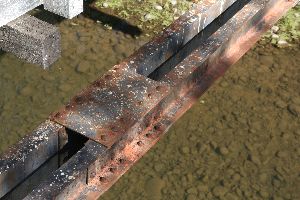

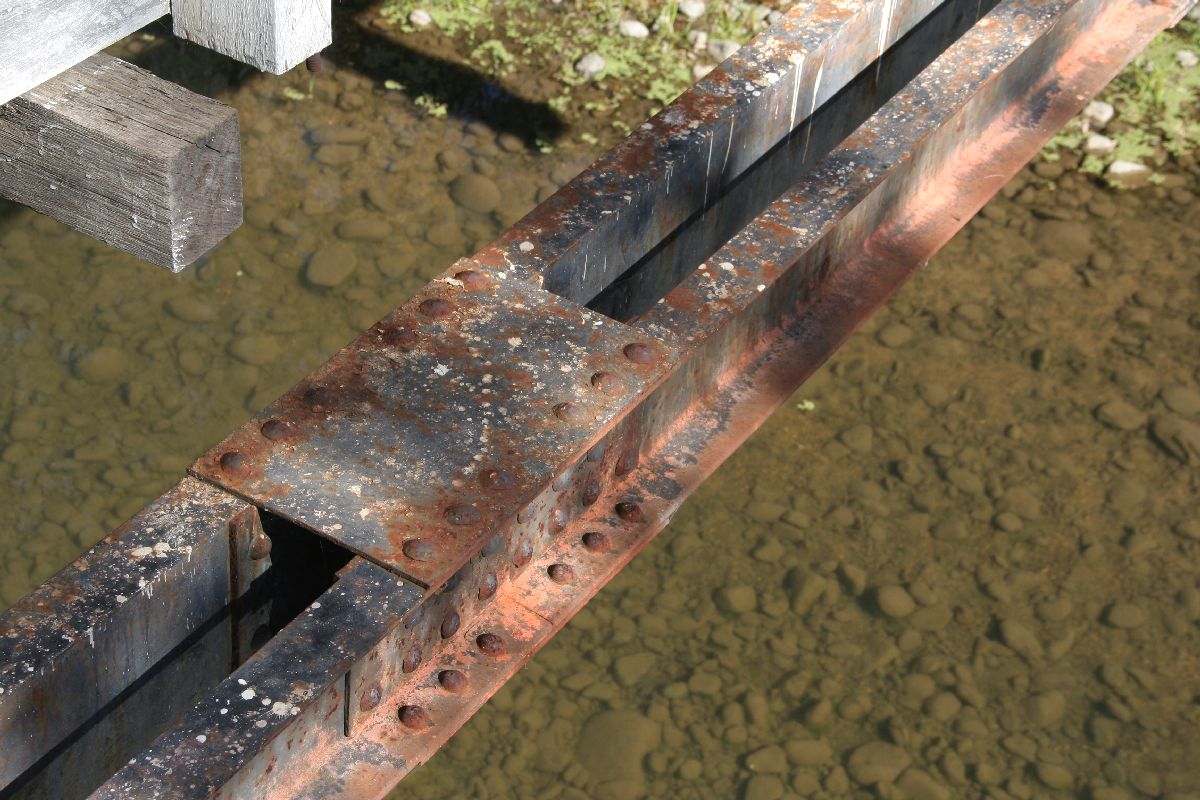

View of the riveted bottom chord.




Colemans Bridge

Back to top
This bridge crosses Leycester Creek on Union Street in Lismore. It is a two span bridge built in 1908. The bridge replaced an Old PWD truss at the same site and reused the centre iron pier. The bridge is the only timber truss bridge with a two lane deck. There is a footpath on either side of the bridge with curved sway braces to clear it.  This gives the bridge quite a different appearance from the side. This bridge is going to be preserved.

Colemans1

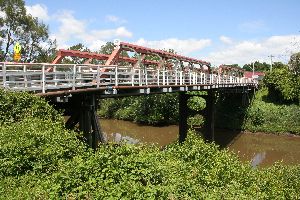

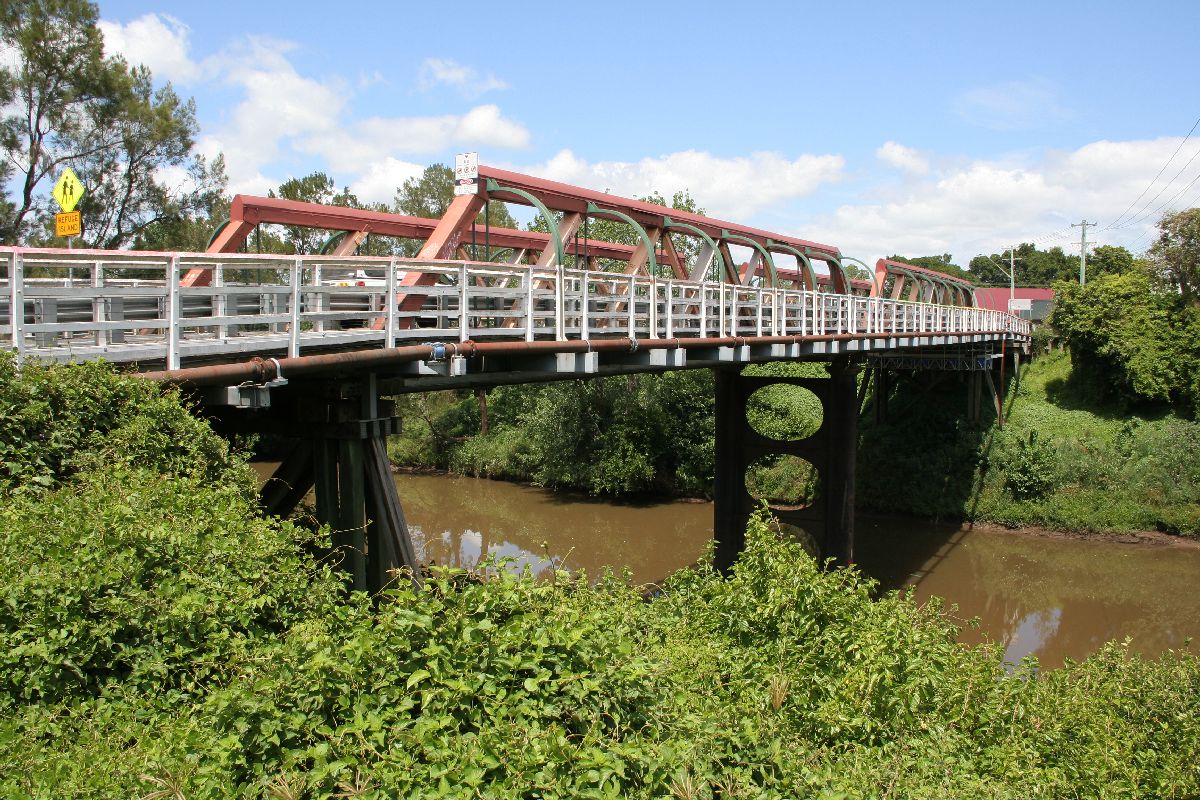

View of the bridge from the east side.

Colemans2

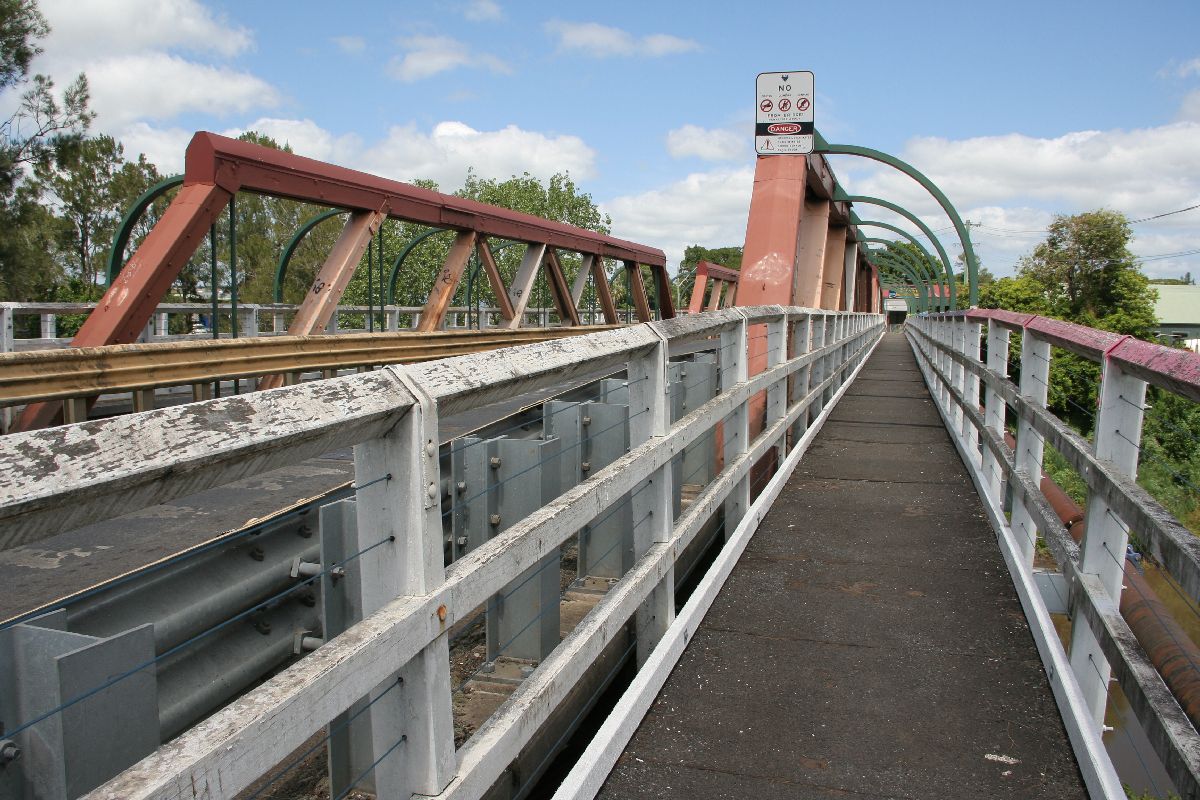

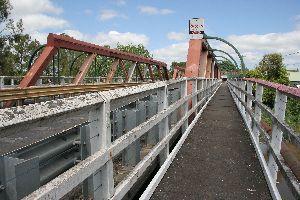

View from the east on the footpath. The curved sway braces are visible in this view.

Colemans3

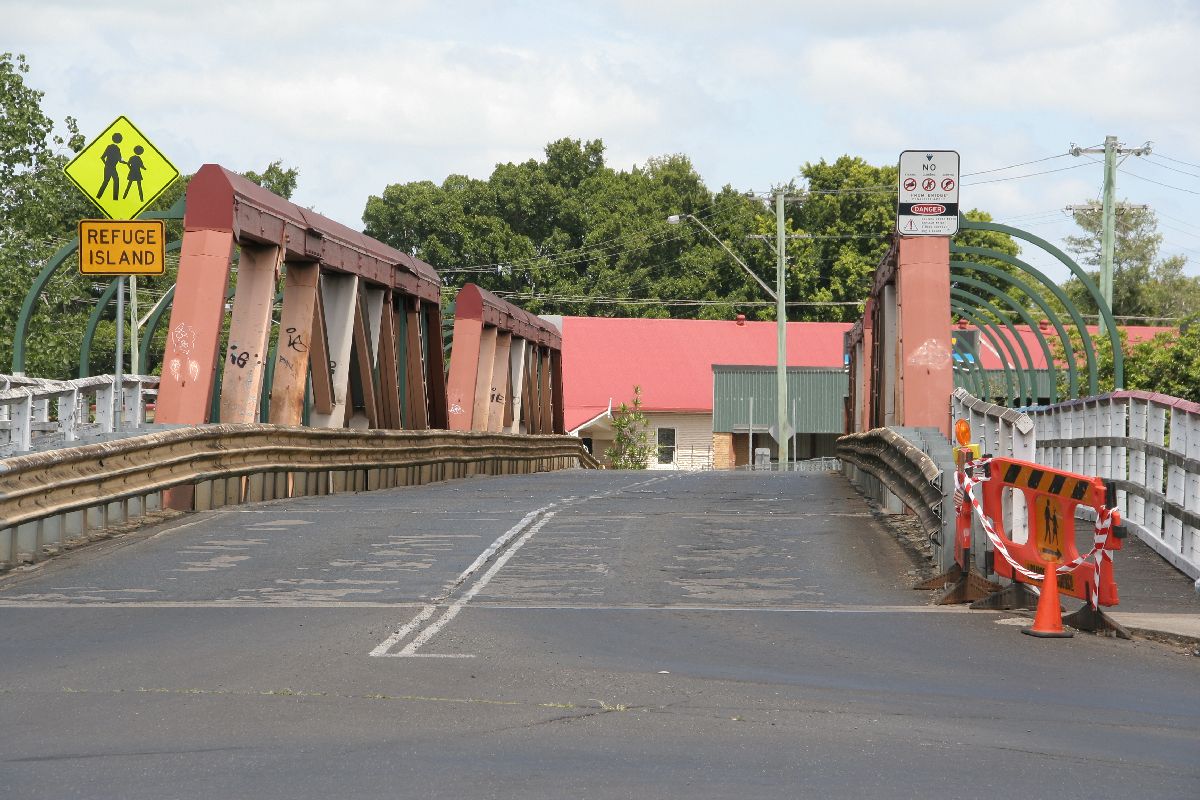

View from the east end showing the two lane deck.

Colemans4

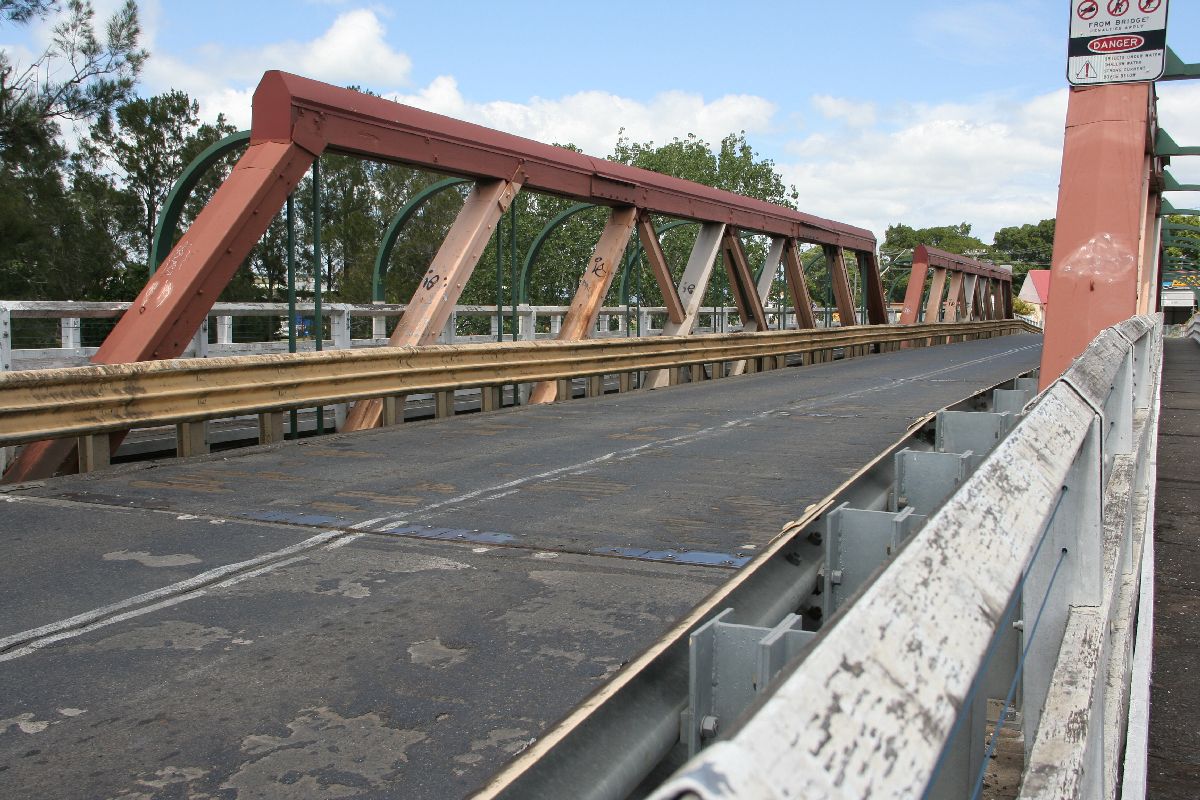

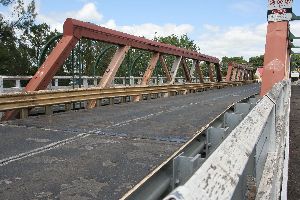

View of the trusses.

Colemans5

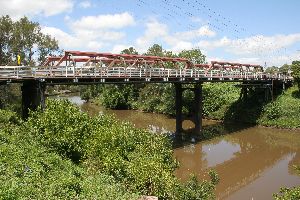

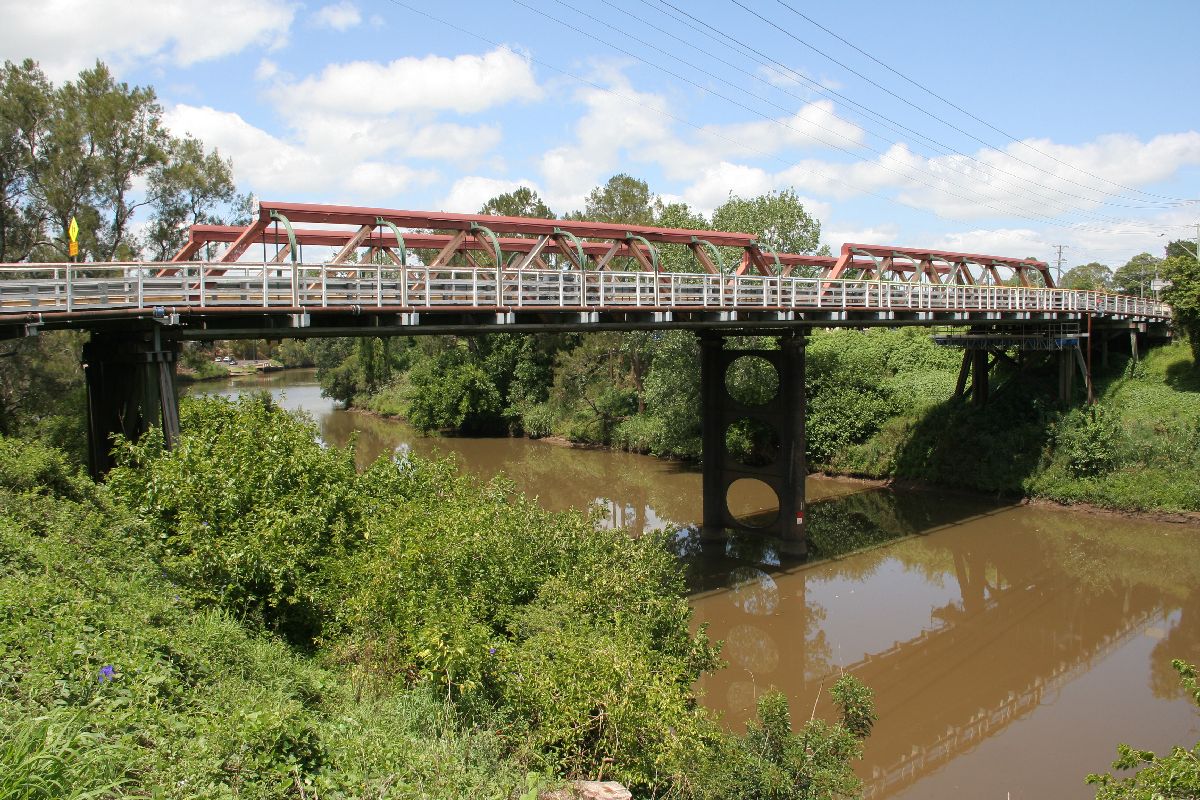

Nearly side on view.



Coonamit Bridge

Back to top
Coonamit Bridge is a two span bridge was built in 1929 over the Wakool River.  It is located on Moulamein Road about 30km north of Swan Hill. It is quite interesting as it is not on the list of bridges to be preserved but it has been rebuilt from the ground up. Almost everything was replaced.  About the only parts reused from the original bridge are the steel bottom chords and the iron footings.  The new main bridge piers are steel, while the approach span piers are timer.  The result is a mix of modern bridge with old timber truss!

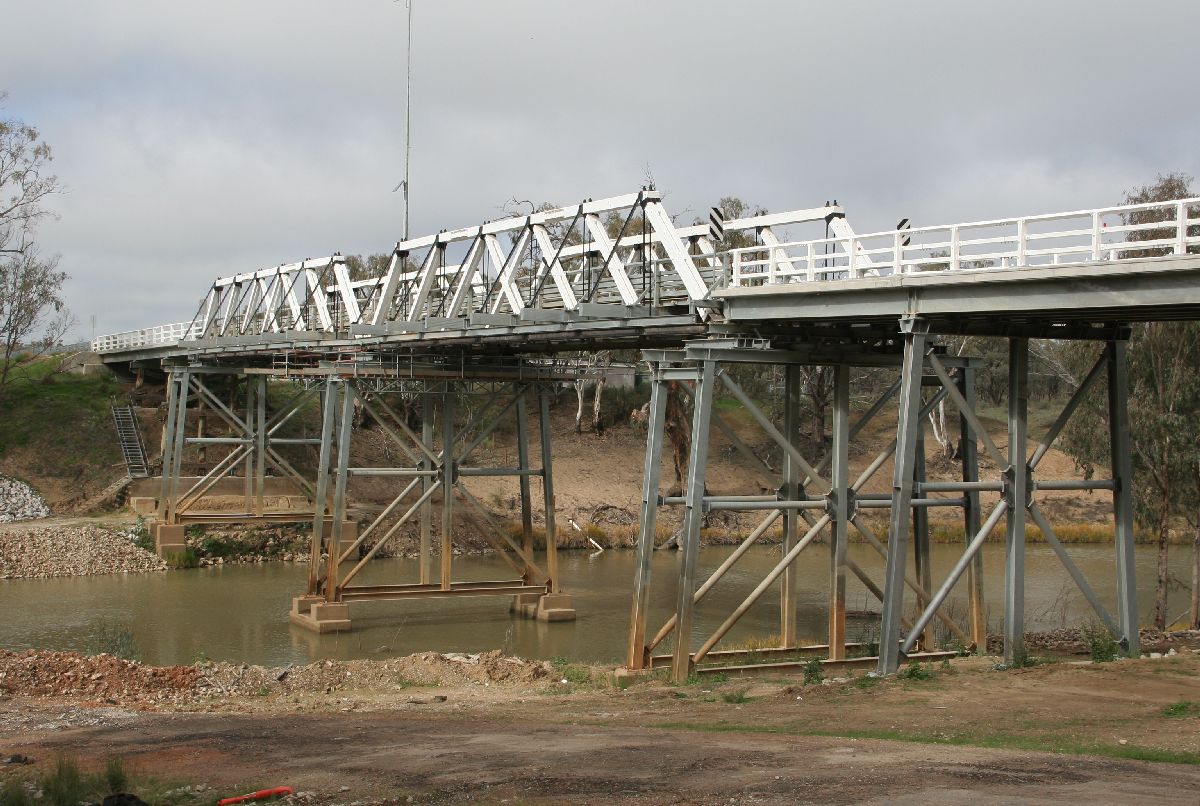

Coonamit1

View of the bridge from the west side.

Coonamit2

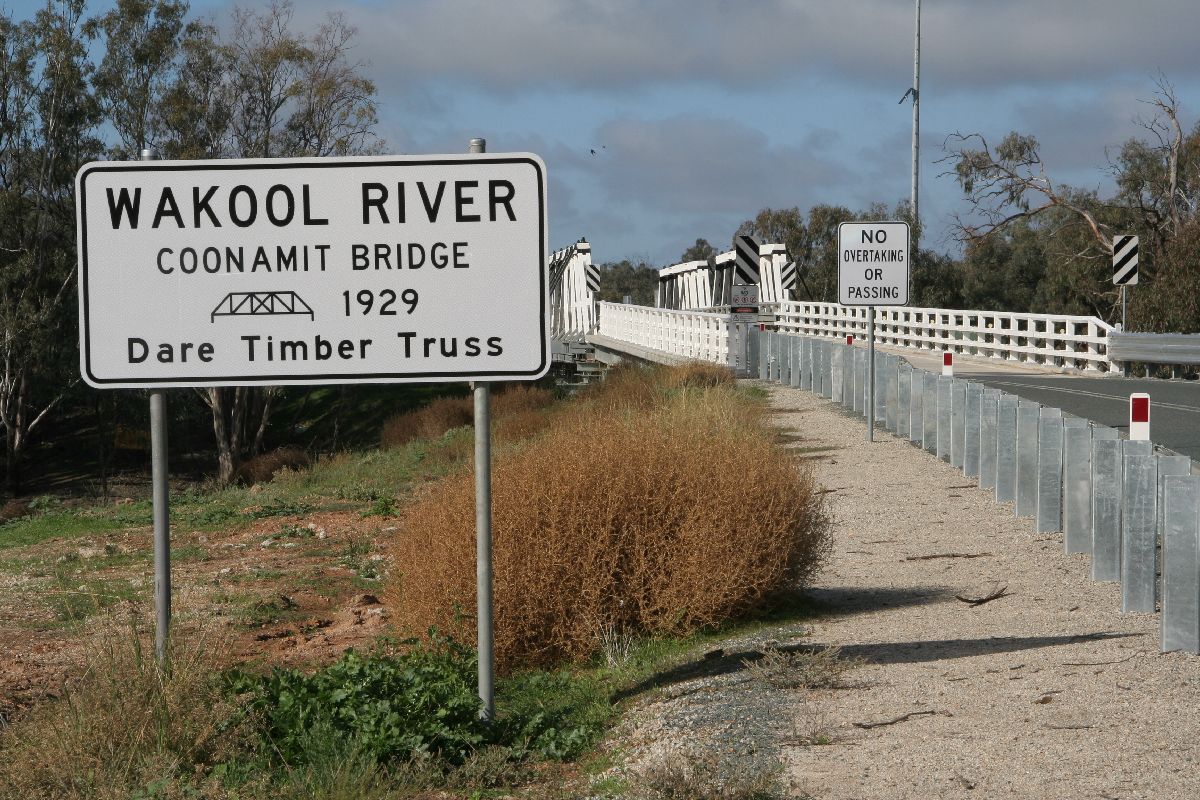

View from the west end with sign.

Coonamit3

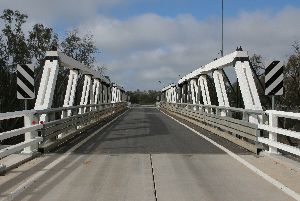

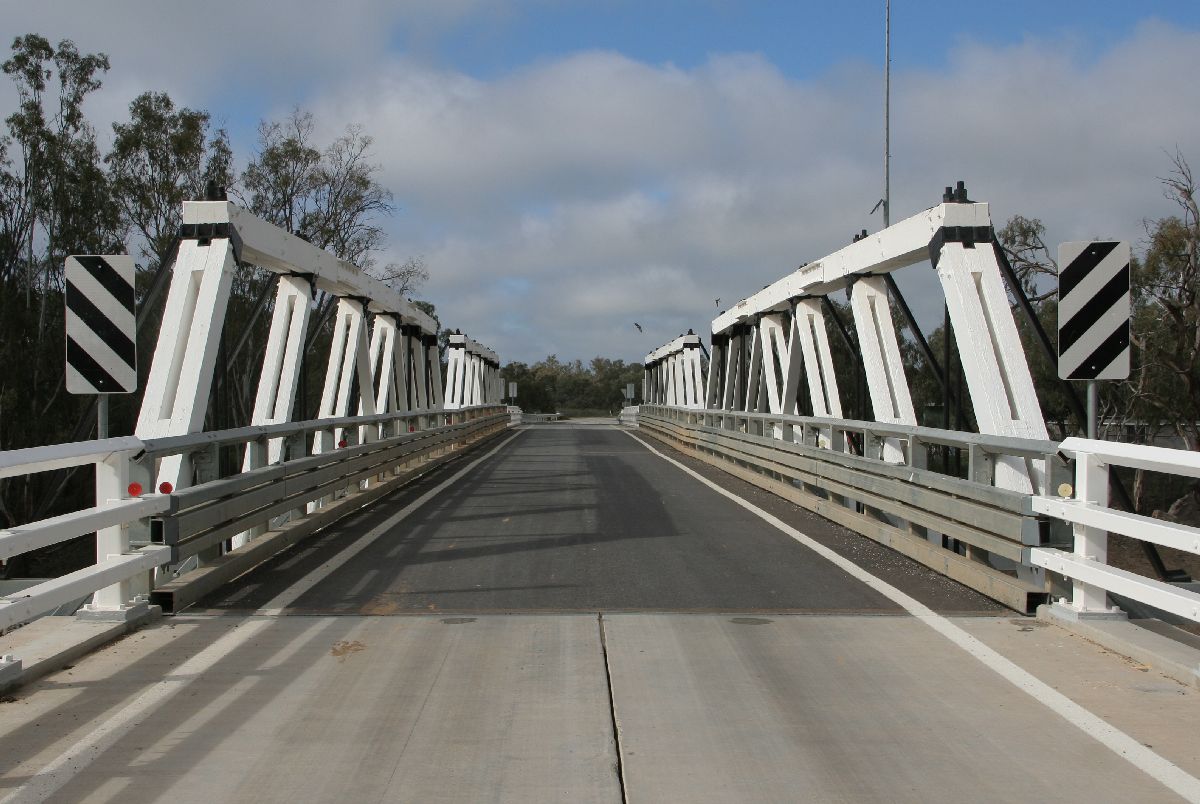

View from the west end showing the concrete approach span decks and the stress laminated truss deck.

Coonamit4

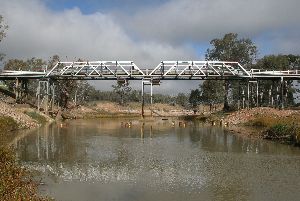

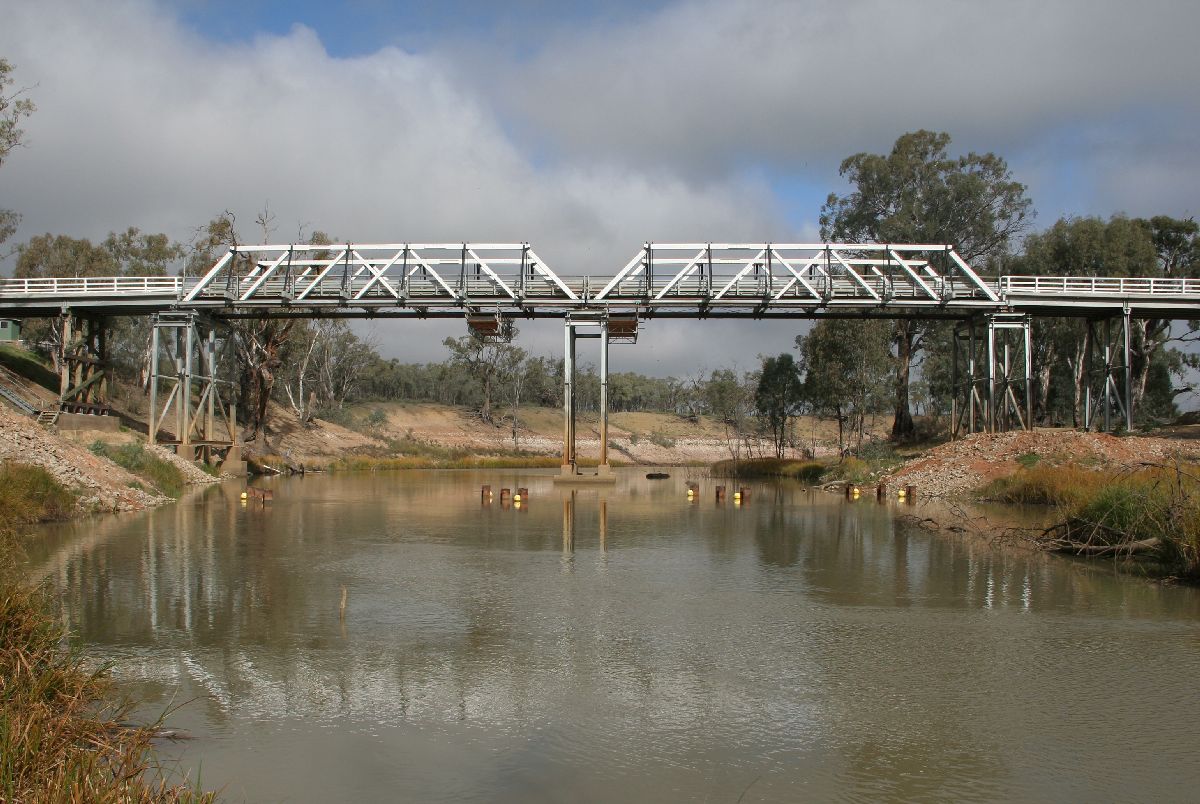

Side view of the bridge and Wakool River.

Coonamit5

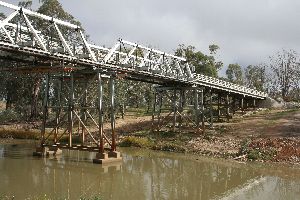

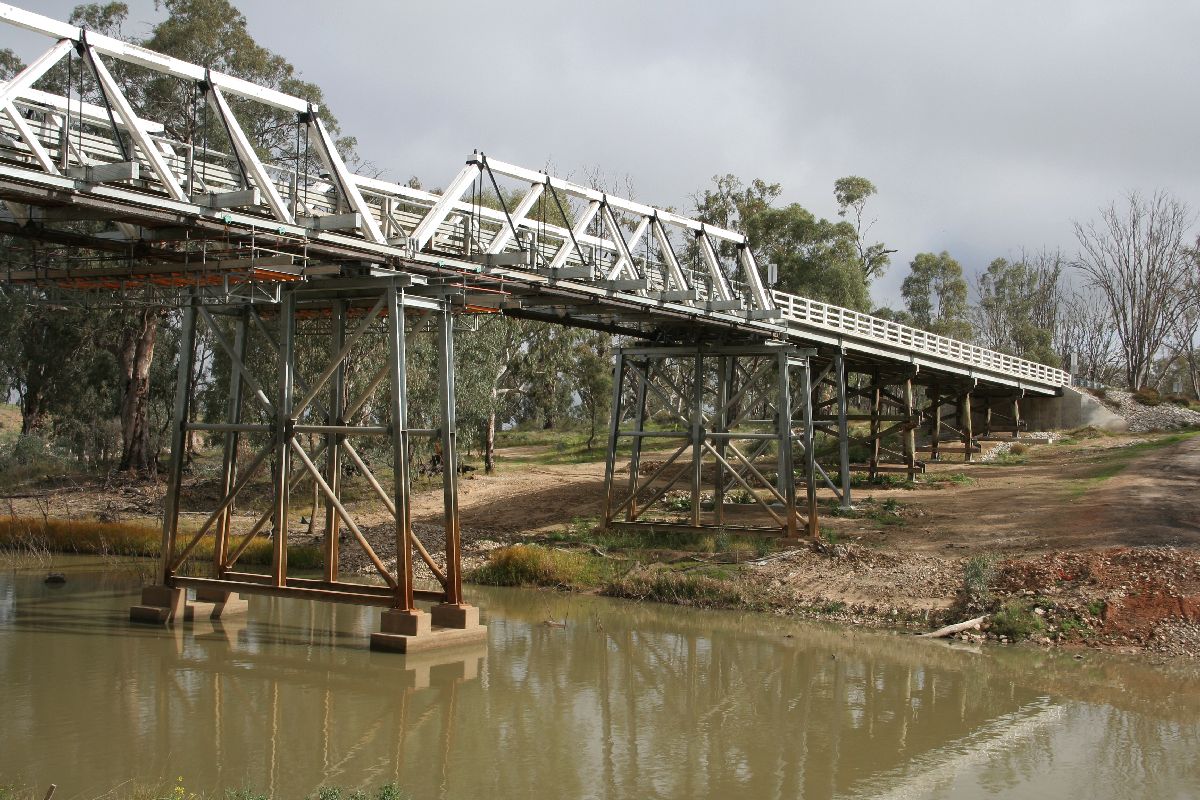

View of the bridge showing the steel main piers and the timber approach piers.

Coonamit6

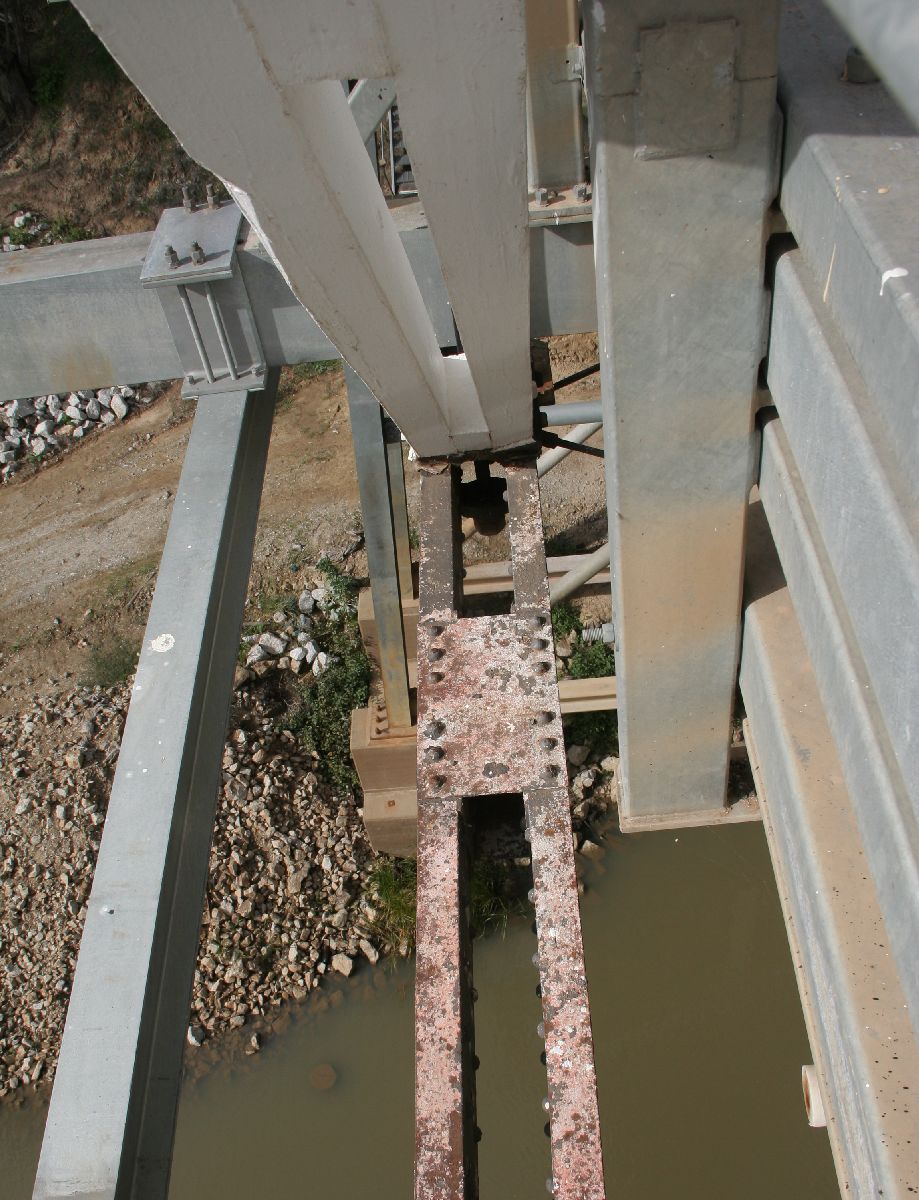

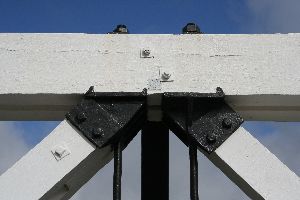

Detail of the riveted steel bottom chord and the maintenance gantry rail.

Coonamit7

Before the rebuilt, the trusses had weather shielding.  This has not been reinstalled.

Coonamit8

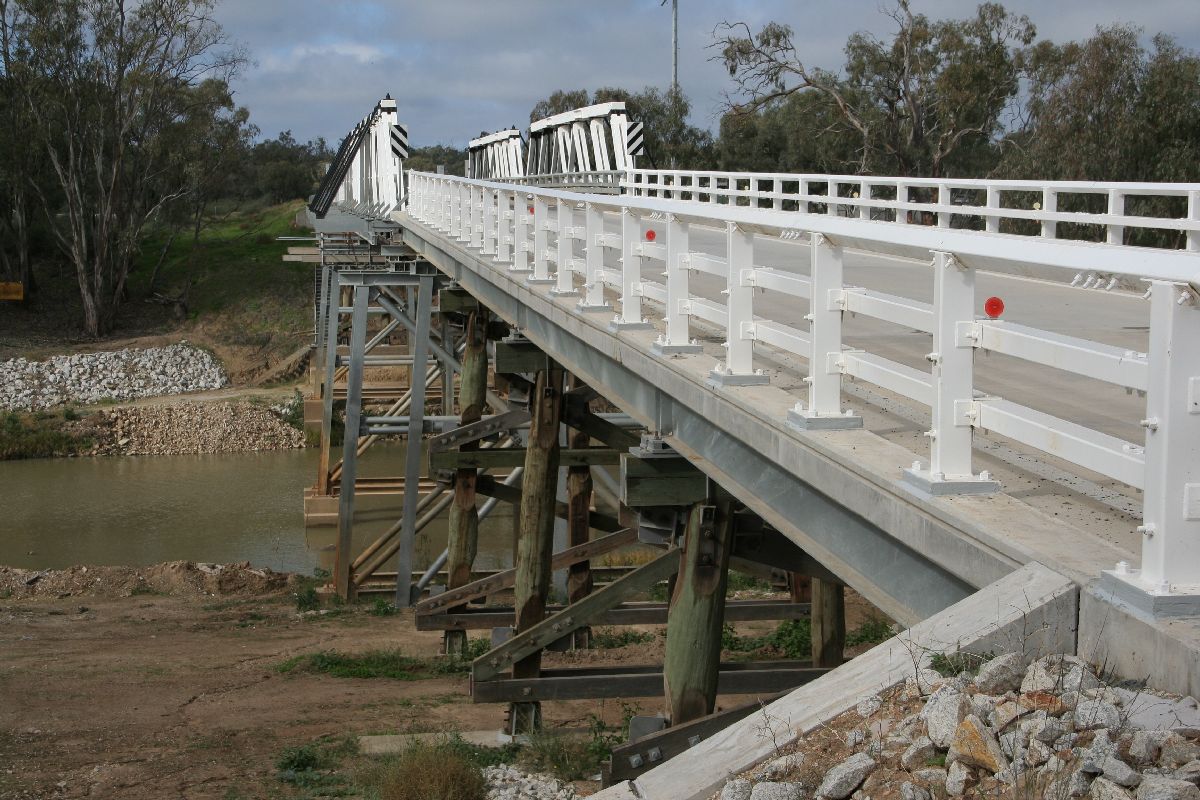

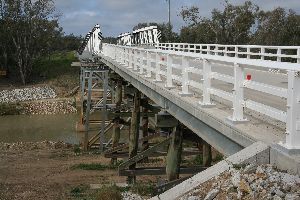

Close view from the west end showing the concrete approach decks.

Coonamit9

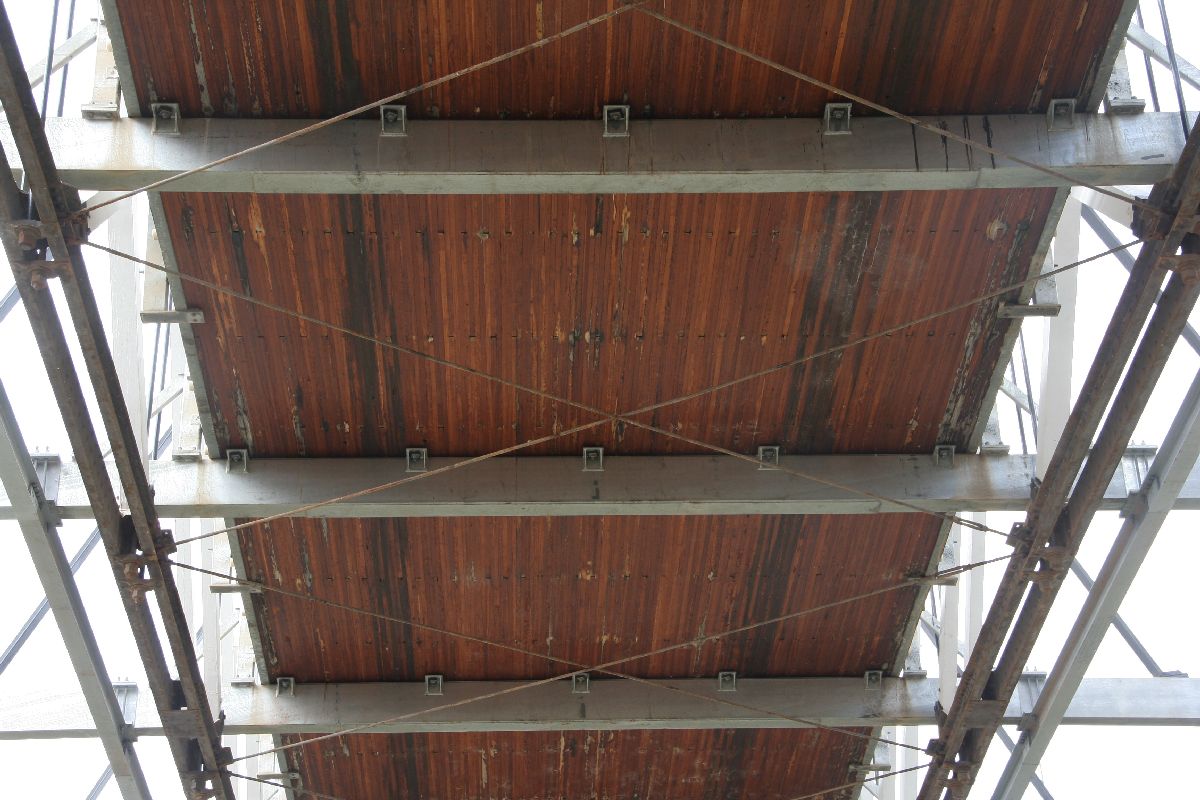

Underside view of the truss showing the stress laminated timber deck.



Coorei Bridge

Back to top
This bridge was constructed in 1906 over the Williams River. It is located on Stroud Hill Road on the north east edge of Dungog. This bridge is mostly original and is not going to be preserved.  It is located next to a small park.

Coorei1

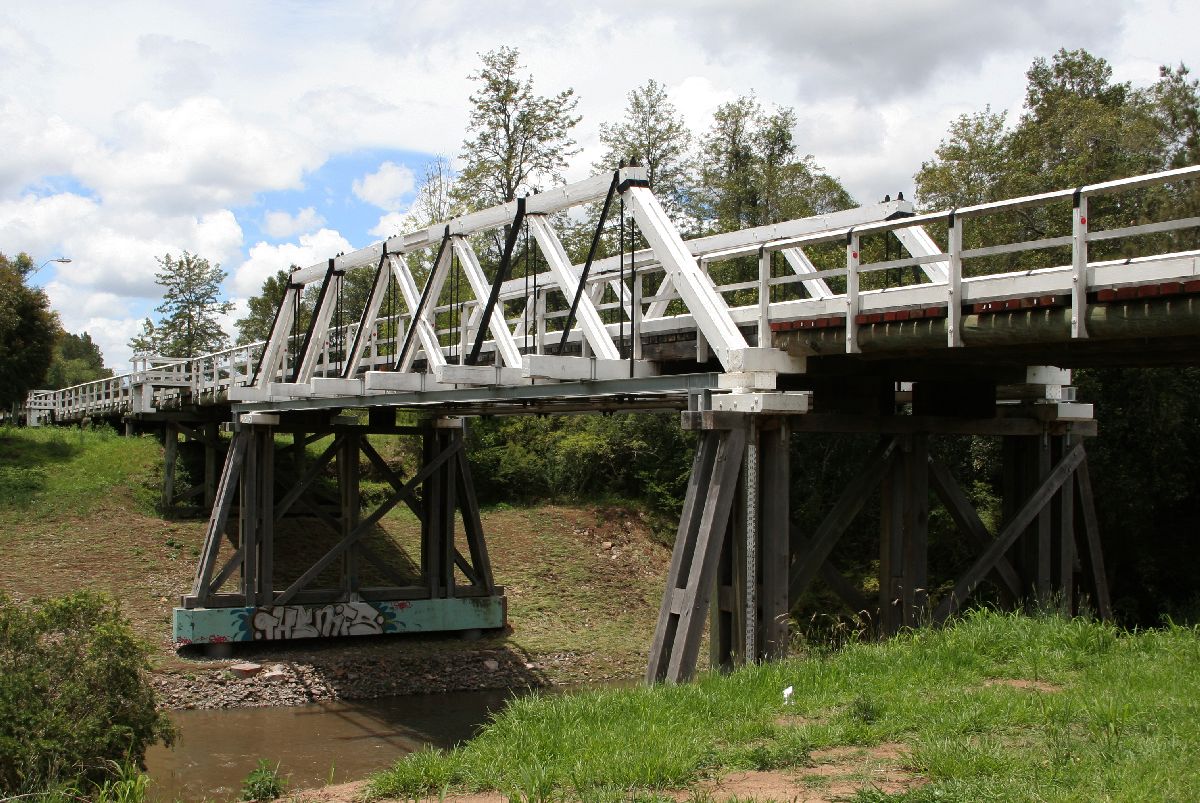

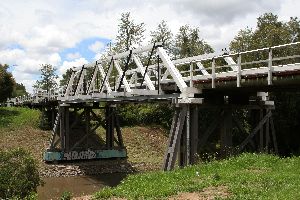

View of the bridge from the south west side.

Coorei2

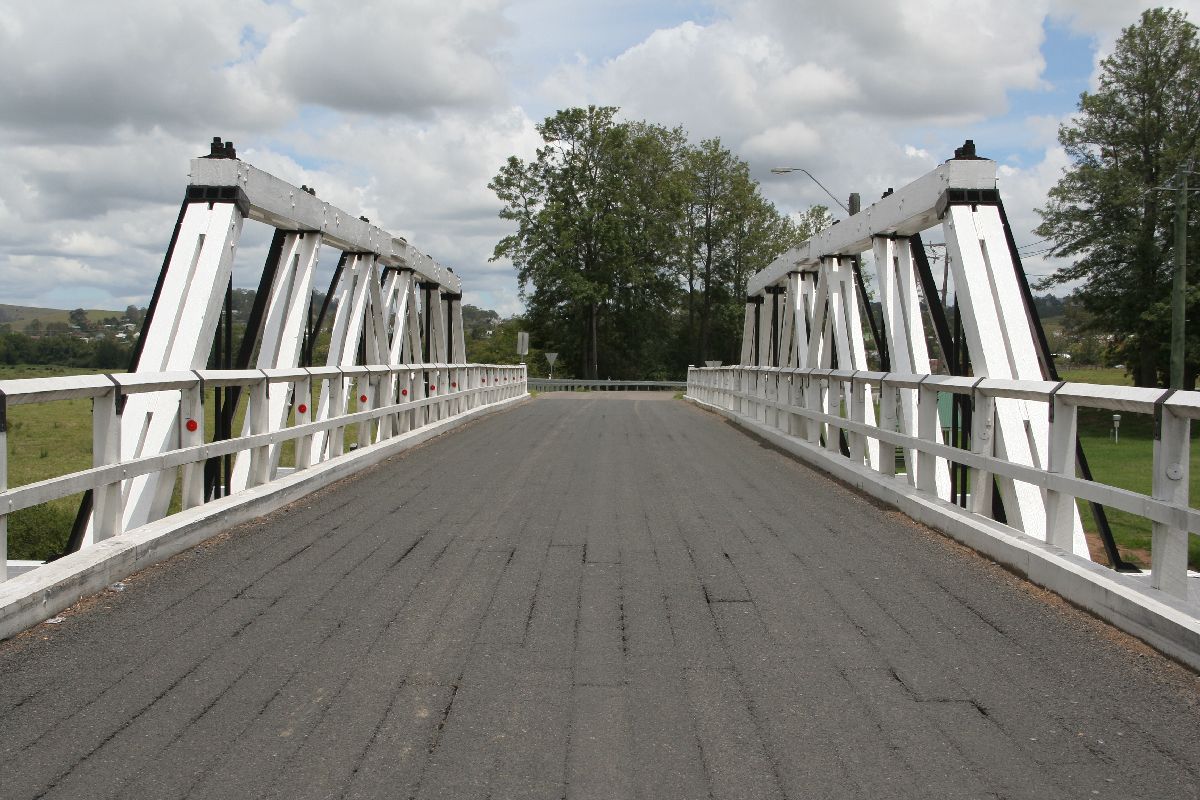

View of the deck and trusses from the north end.

Coorei3

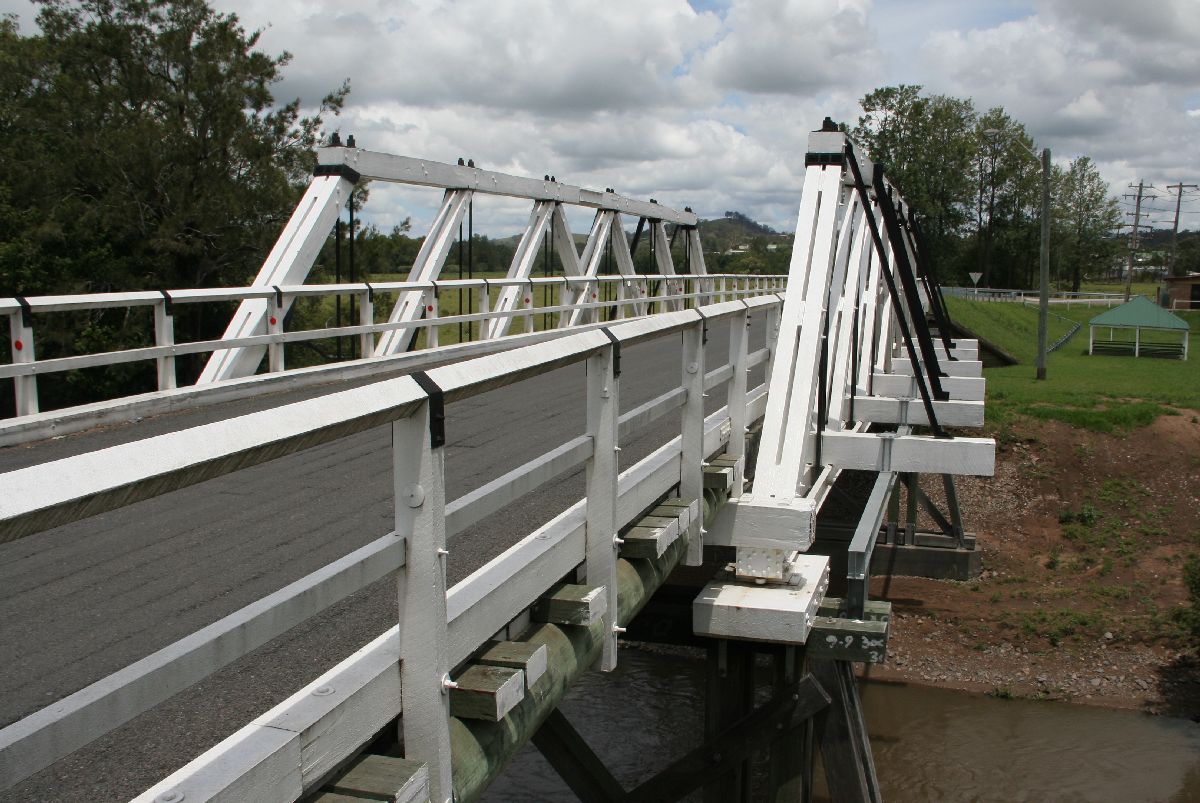

View from the north end from the pedestrian alcove.

Coorei4

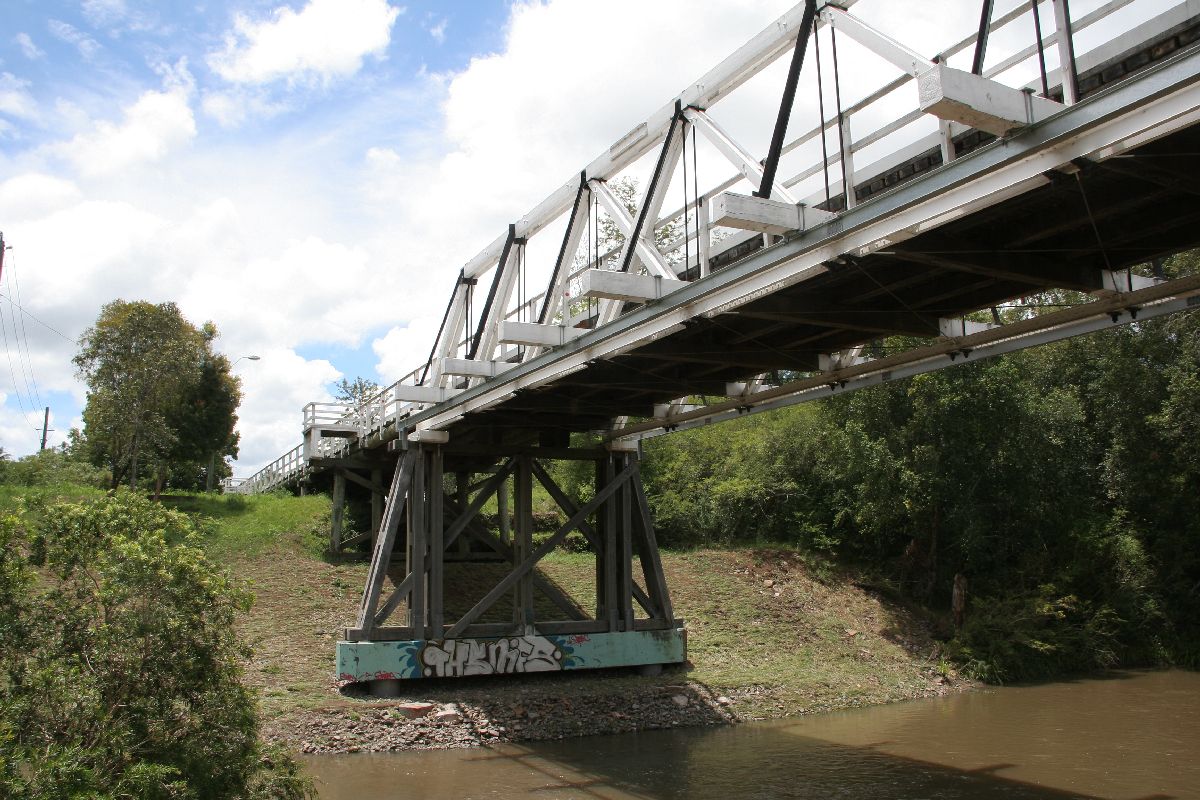

Close view from the south side.

Coorei5

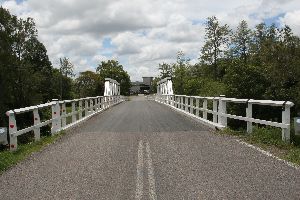

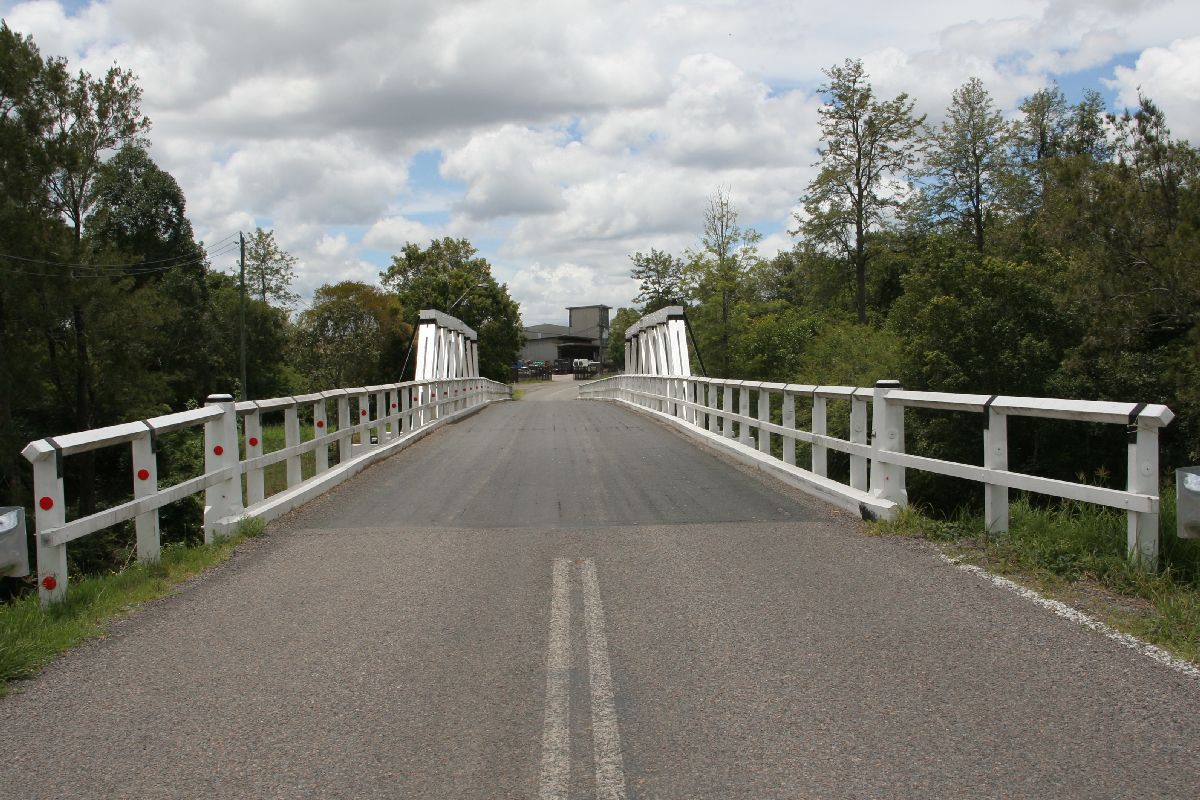

View of the bridge from the north end.

Coorei6

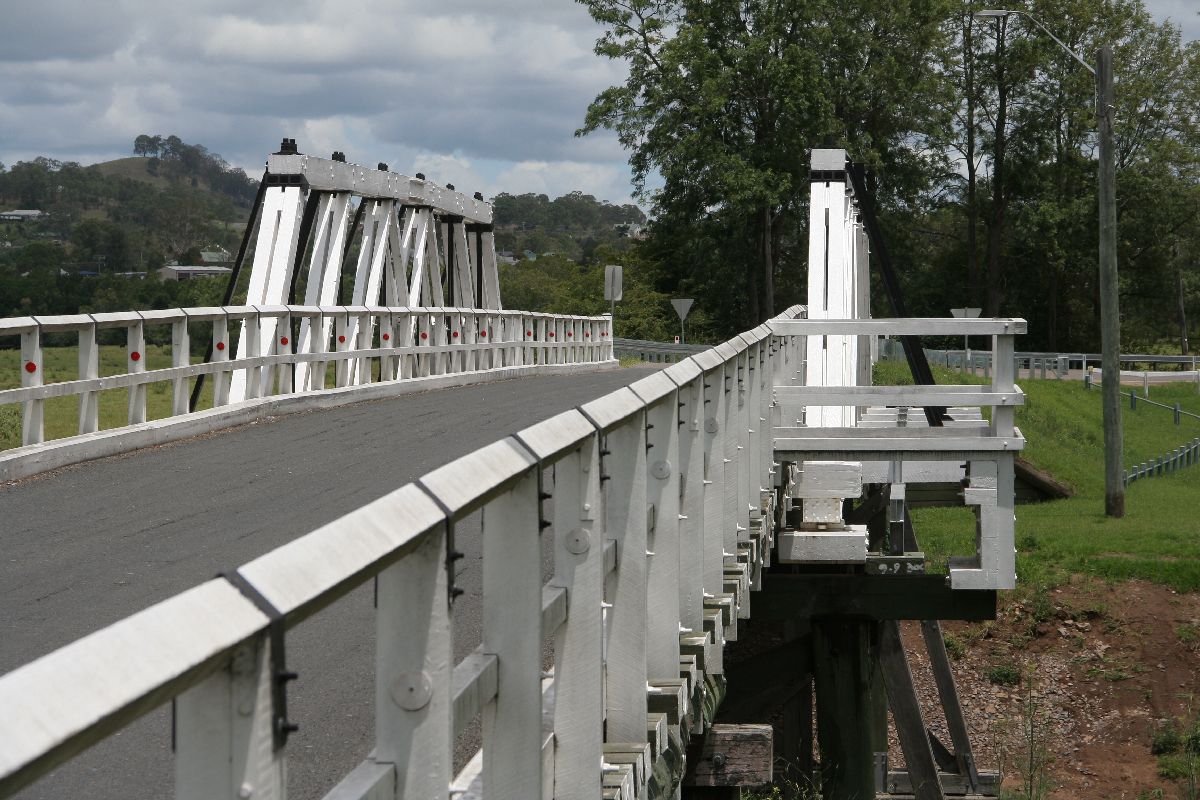

View showing the original railing and the pedestrian alcove.

Coorei7

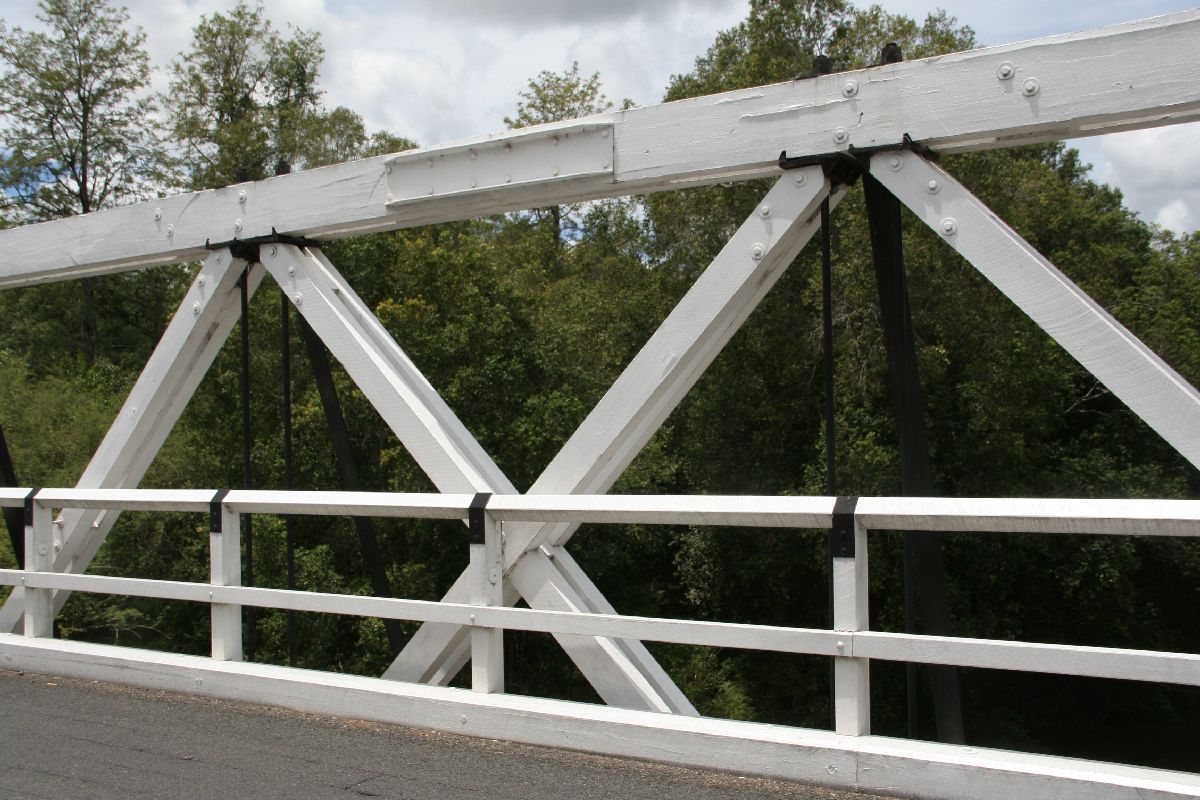

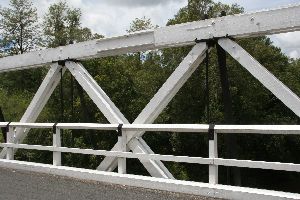

Detail of the truss.

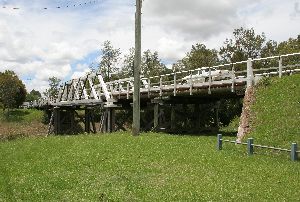

Coorei8

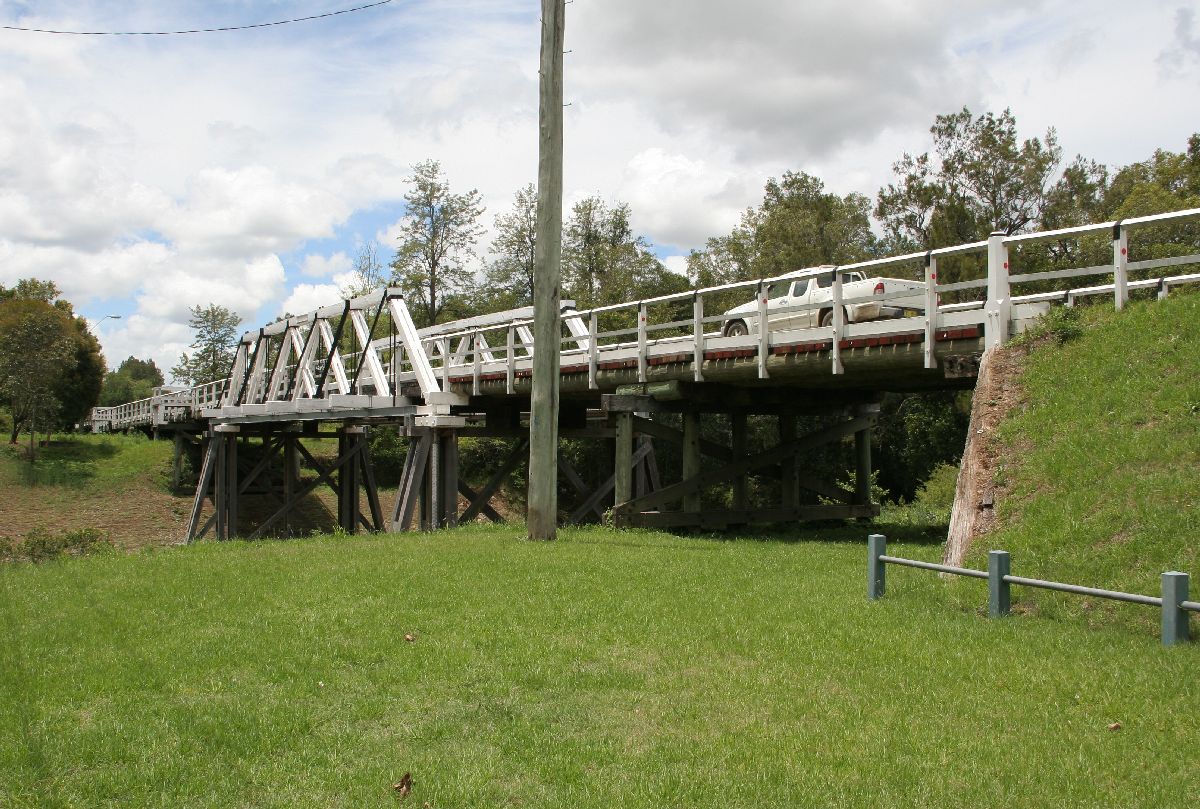

View of the whole bridge from the park.



Gee Gee Bridge

Back to top
Gee Gee Bridge is located on the Swan Hill - Barham Road, 36km east of Swan Hill in a beautiful, peaceful area. The single span bridge crosses the Wakool River and was built in 1929. The bridge has undergone maintenance recently which included repainting the bridge in white - it would be nice if not all the truss bridges were painted in this colour.

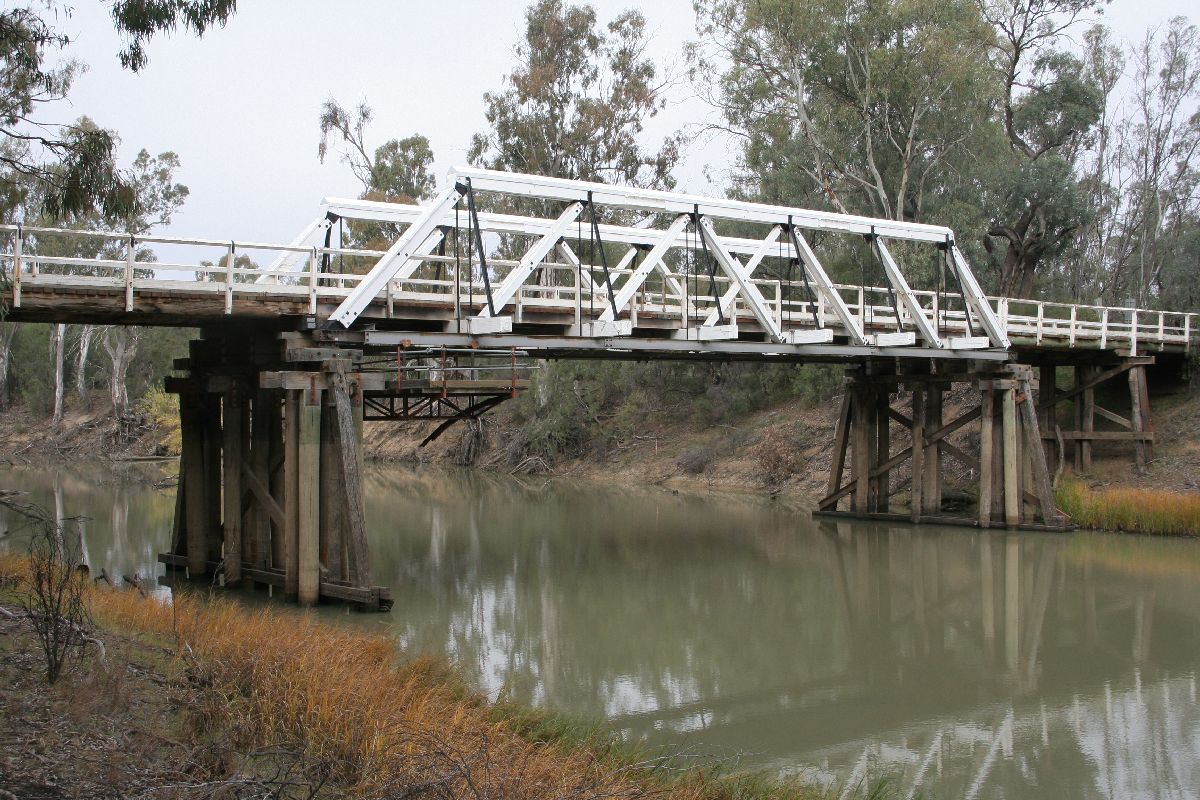

GeeGee1

View of the bridge from the north east side.

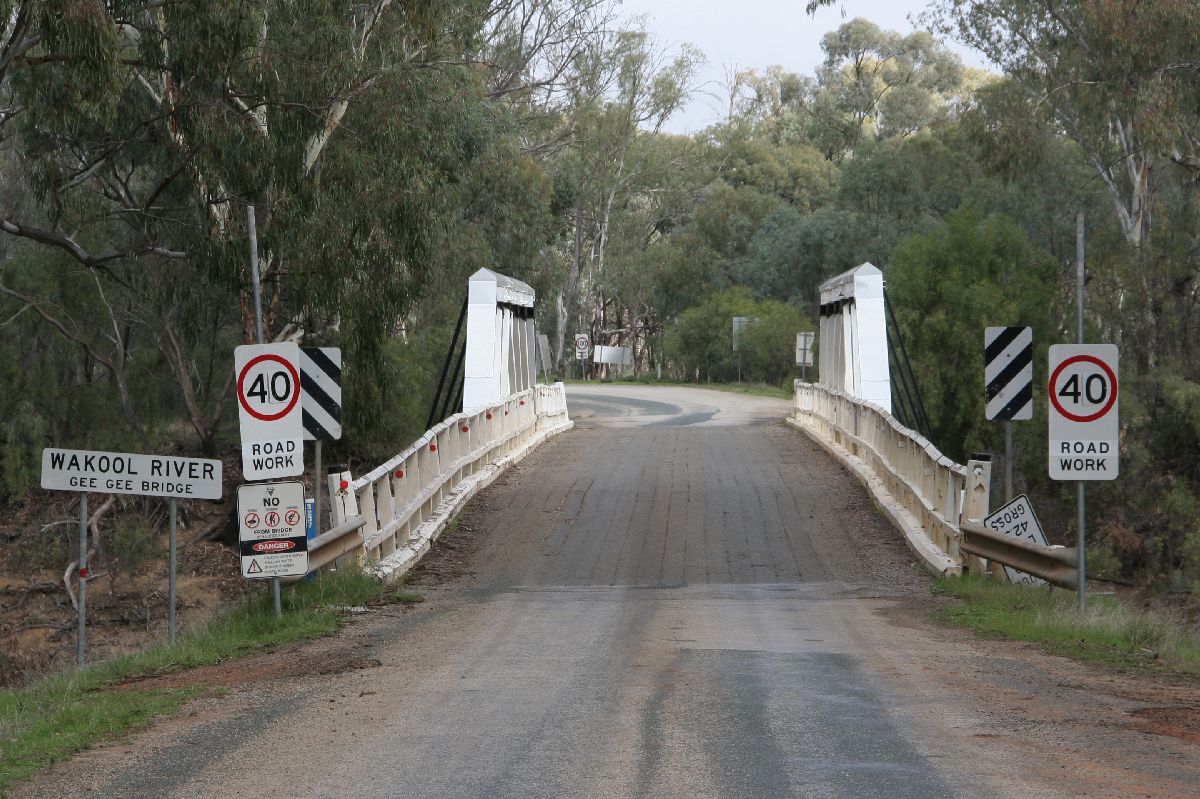

GeeGee2

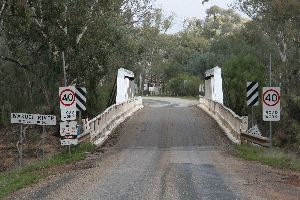

View from the north end.

GeeGee3

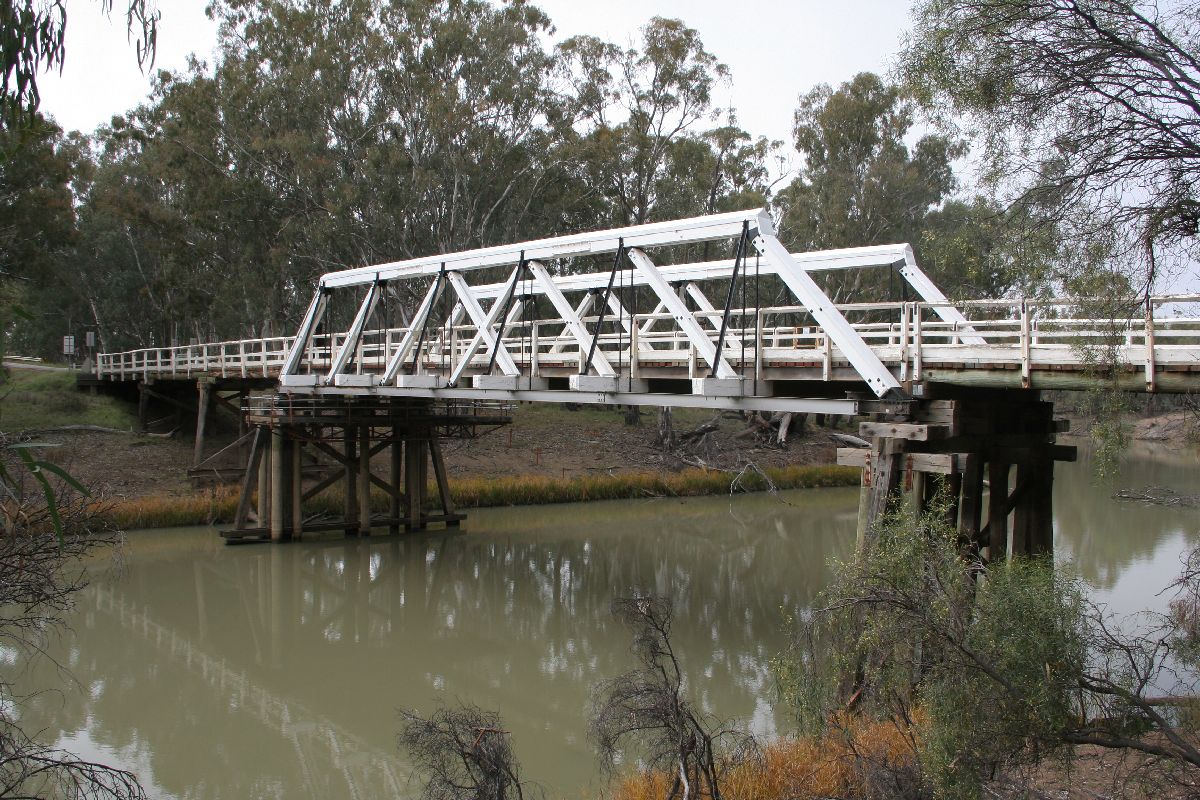

View from the south east side.

GeeGee4

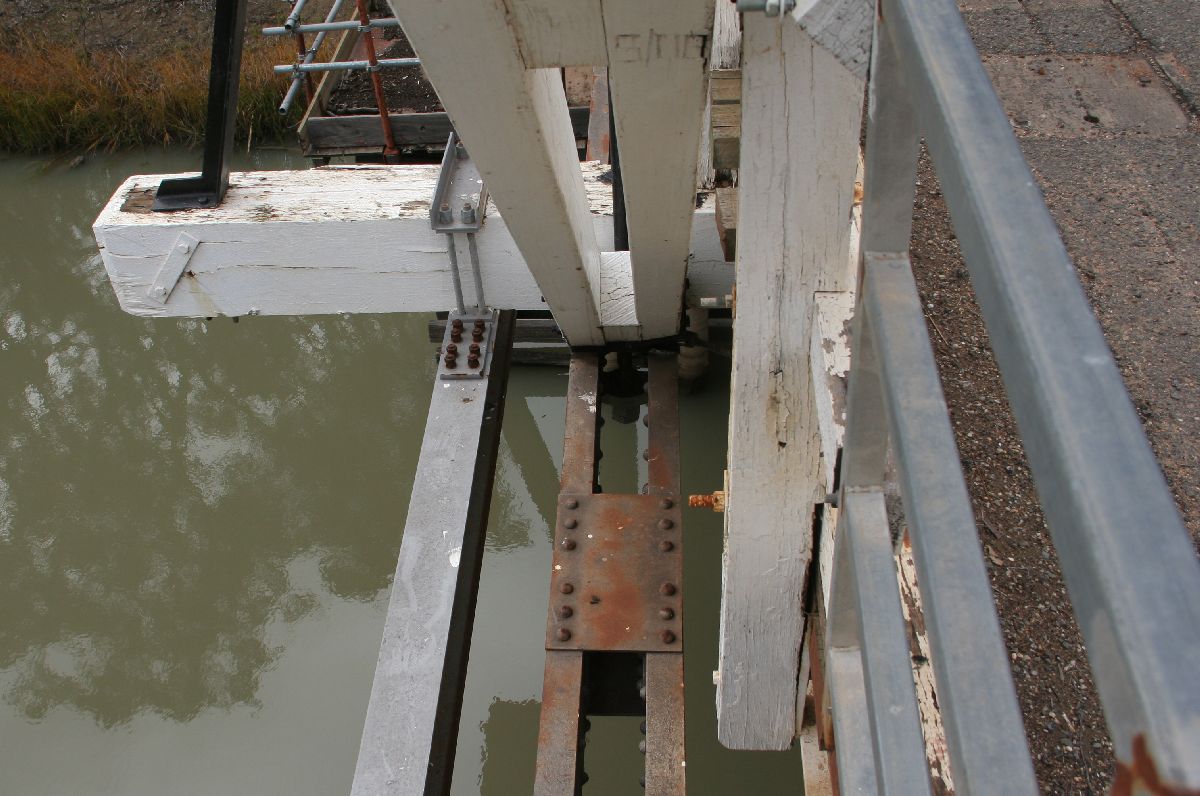

Detail of the bottom chord.

GeeGee5

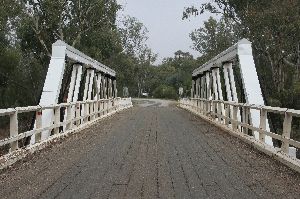

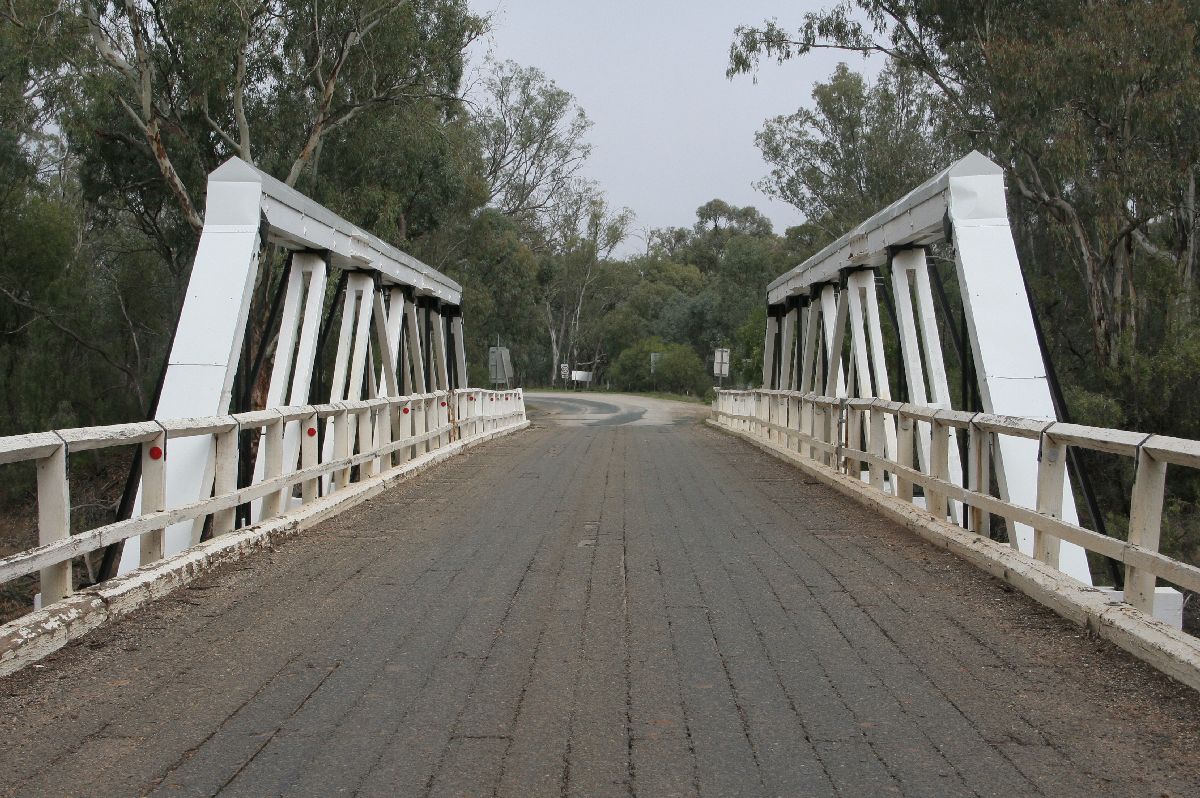

View of the bridge deck and trusses.

GeeGee6

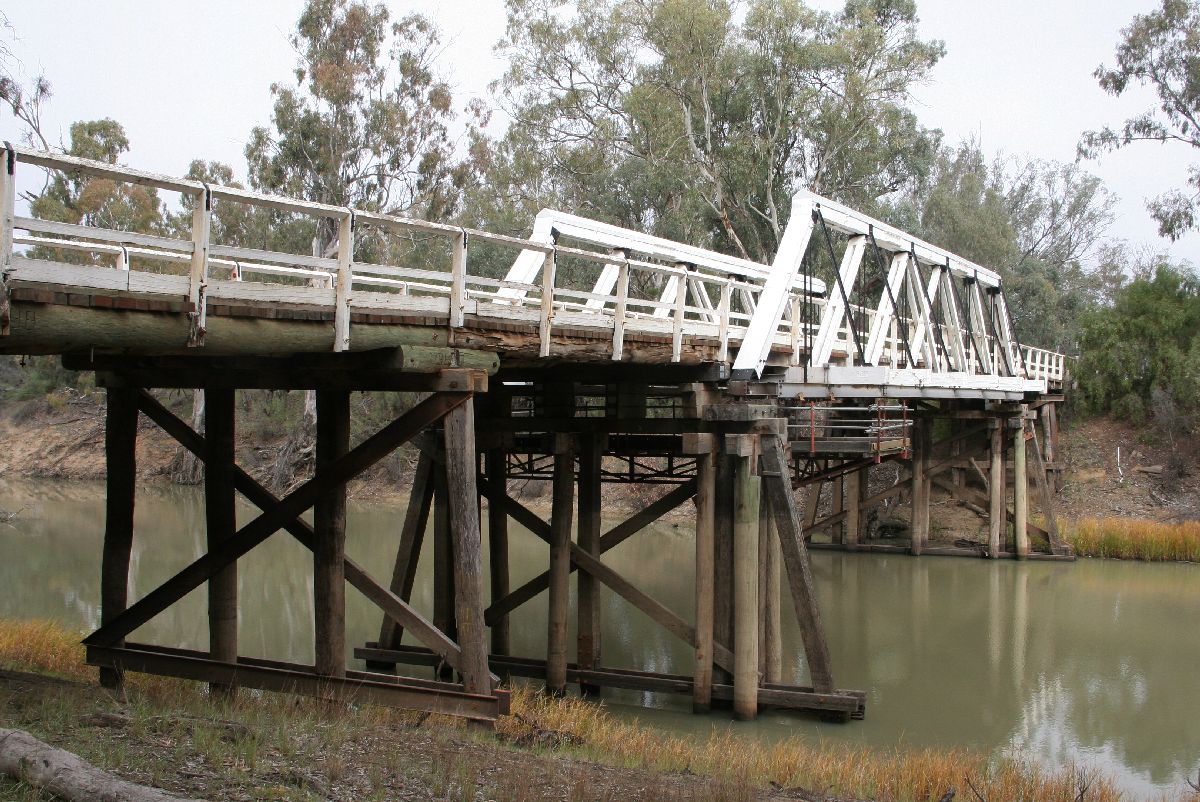

Closer view from the north east side.



Junction Bridge

Back to top
This bridge is located on Davis Creek Road, about 2km east of Upper Rouchel. This bridge was likely built around the same time as the nearby Cameron Bridge and it crosses the same waterway.  Junction Bridge has the same type of concrete piers, but it has low profile trusses.  It is unique in that it has crosswise planks on the deck.  This bridge is a council owned bridge so I'm not sure if it will be preserved or not.

Junction1

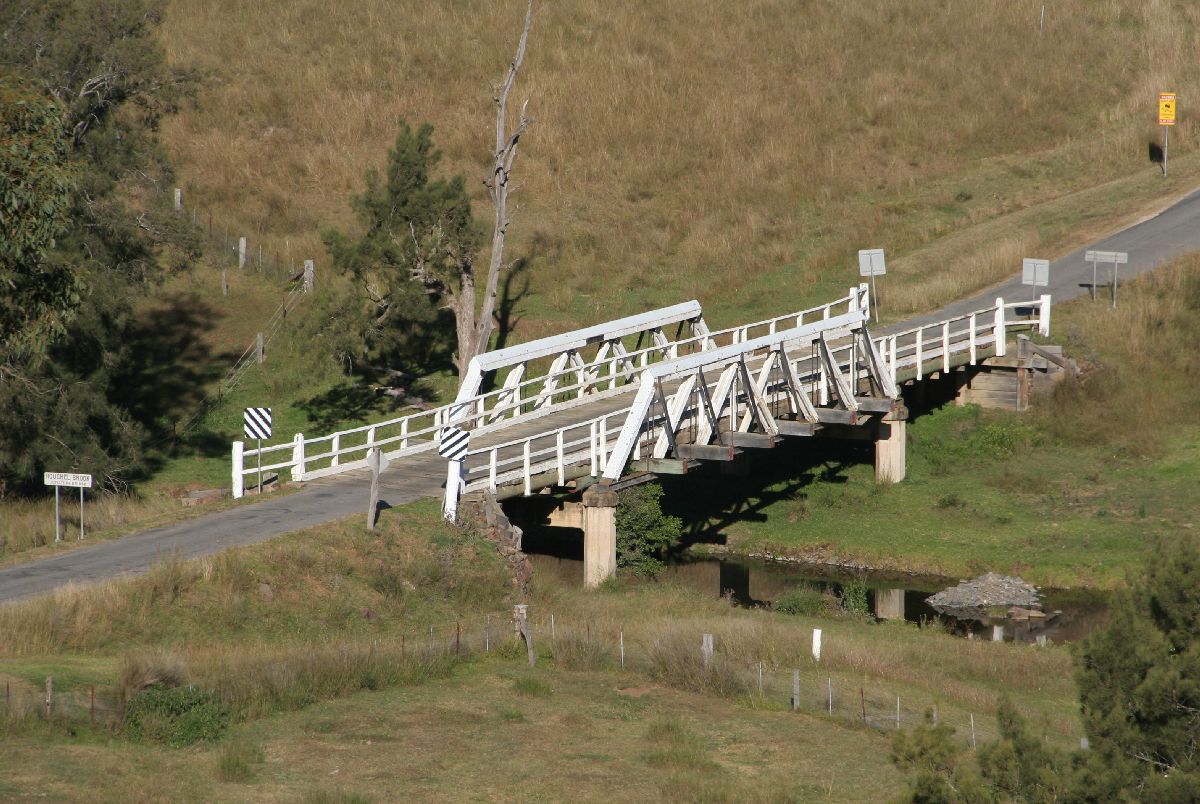

View of the bridge from the hill the road crosses between the bridge and Upper Rouchel.

Junction2

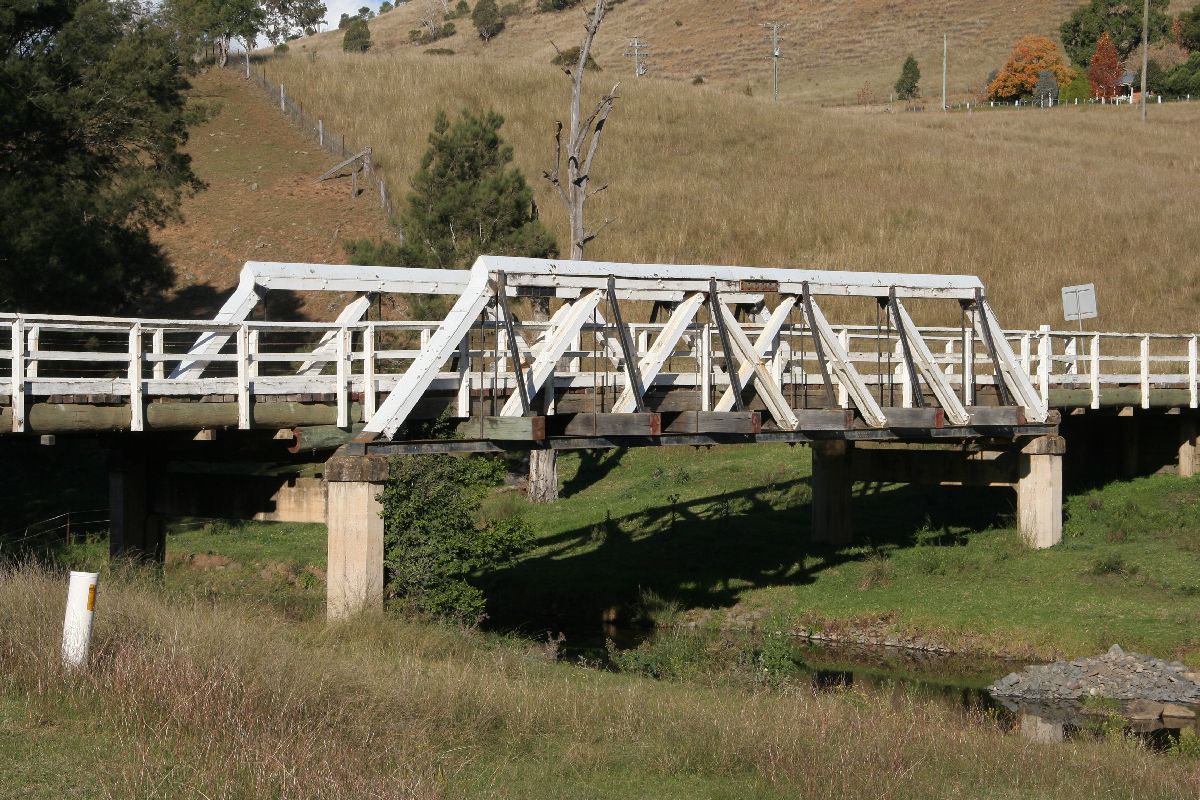

View from the north side.

Junction3

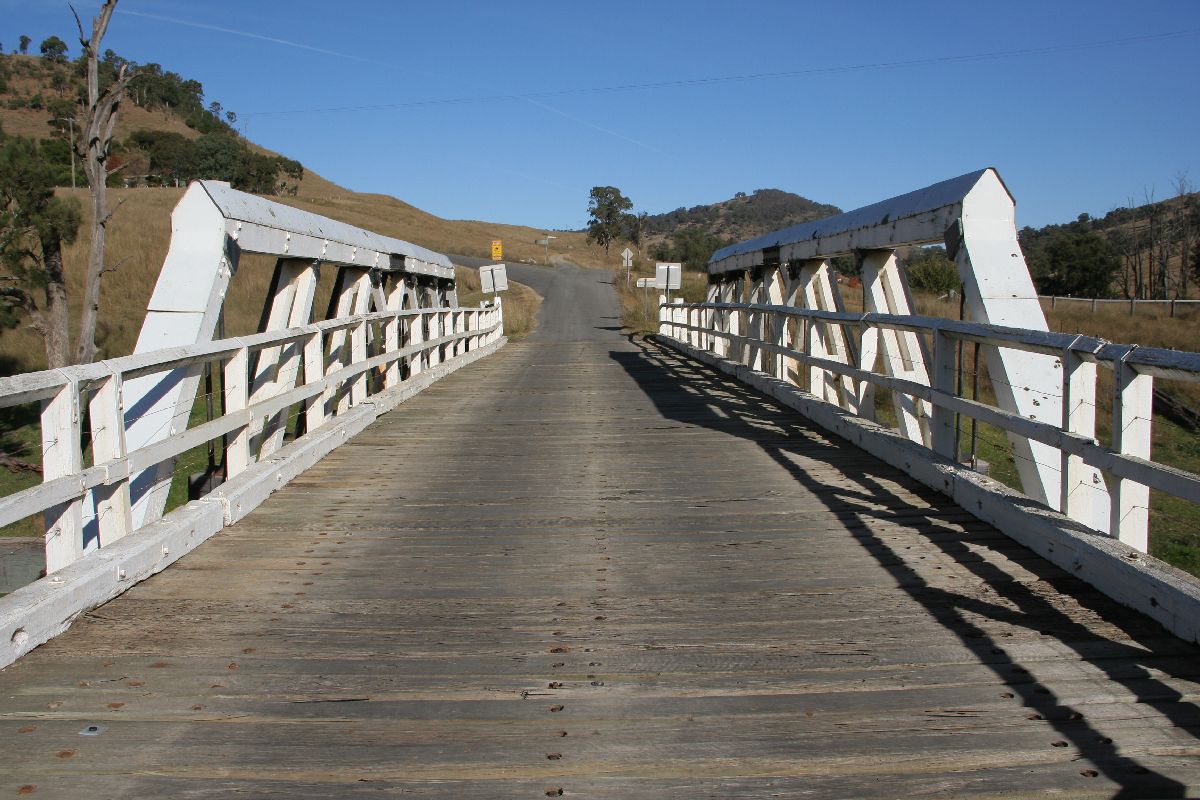

View from the north end.

Junction4

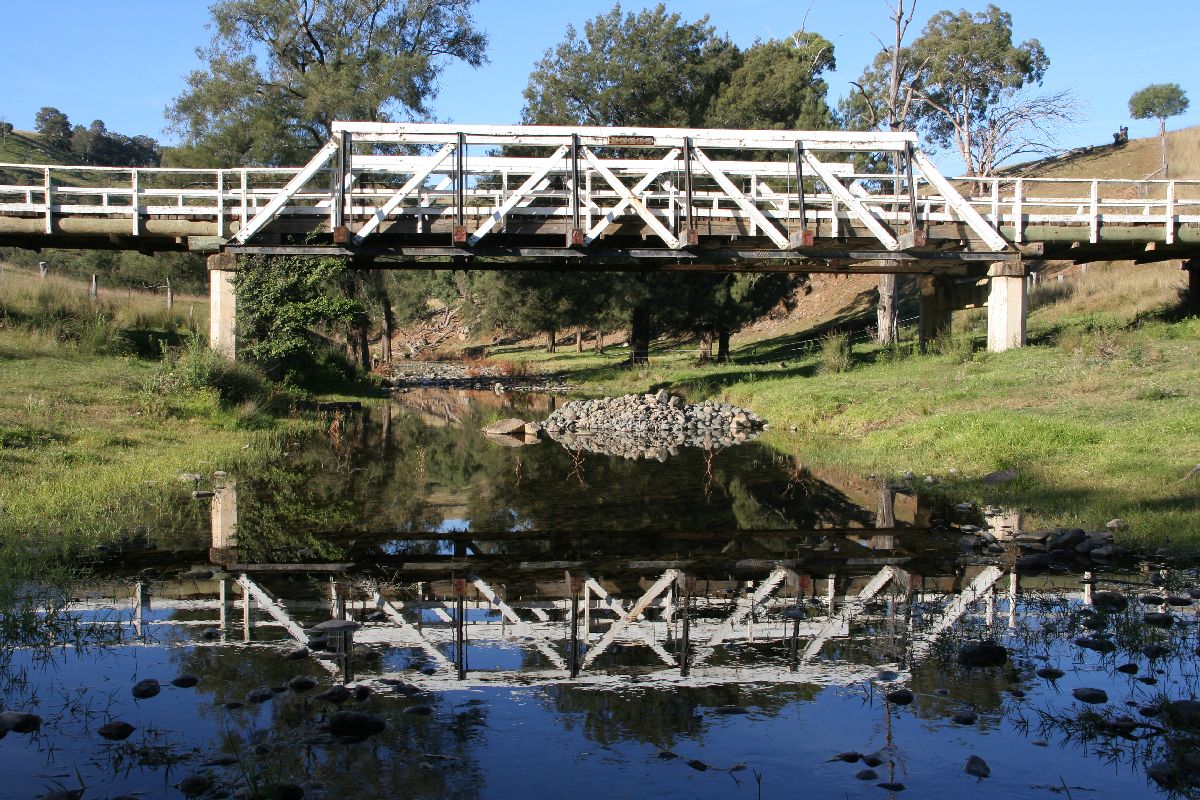

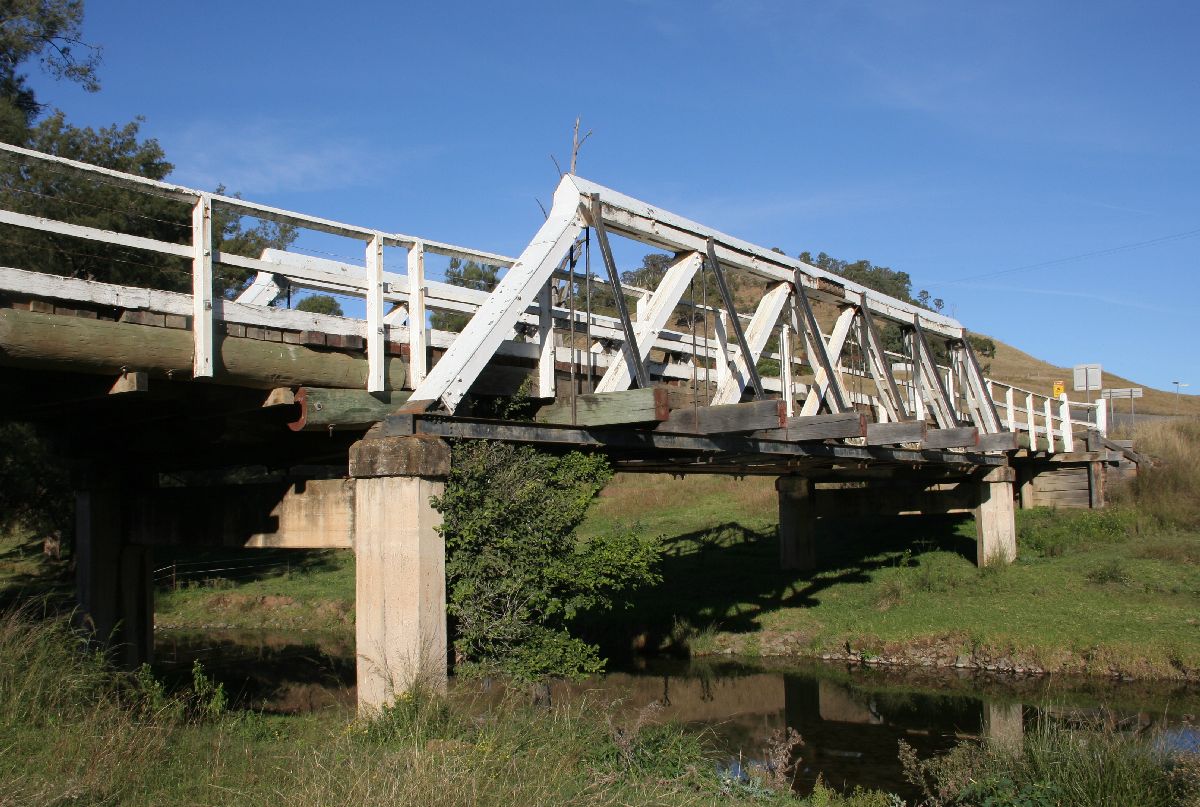

Mirror side view.

Junction5

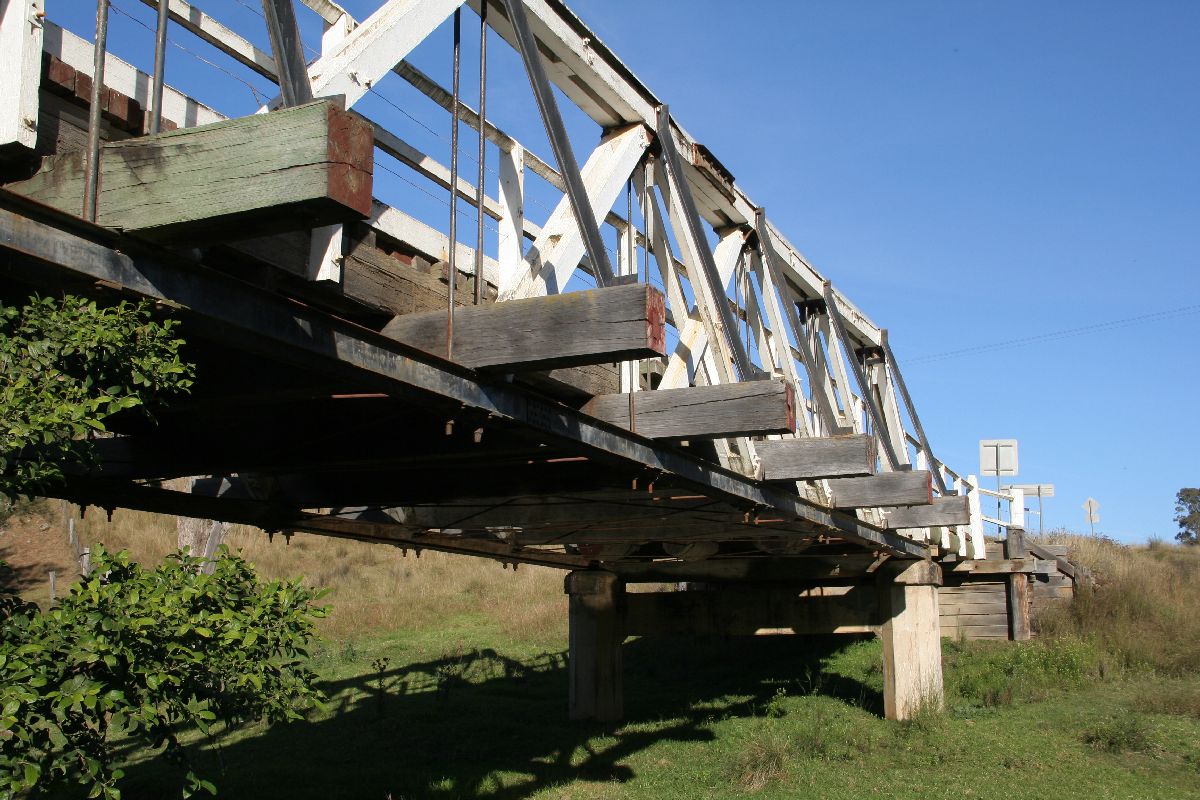

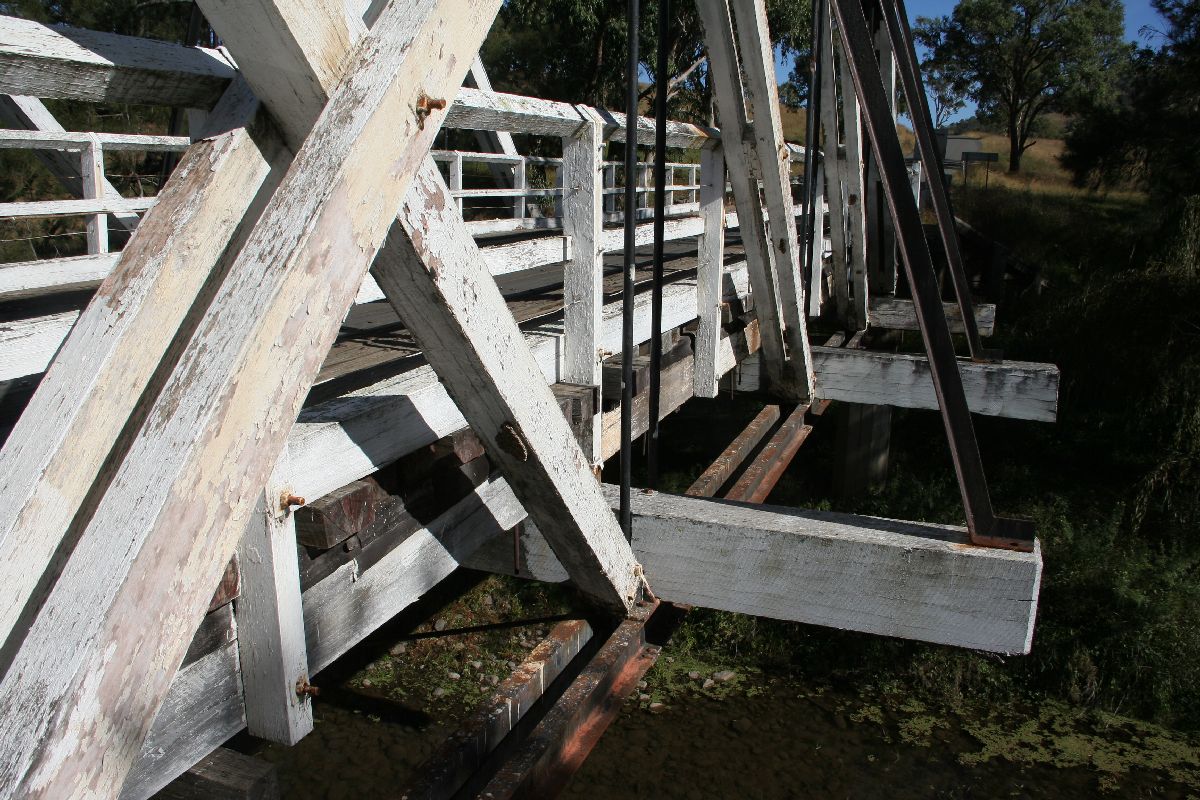

Detail of the steel bottom chord and the cross beams.

Junction6

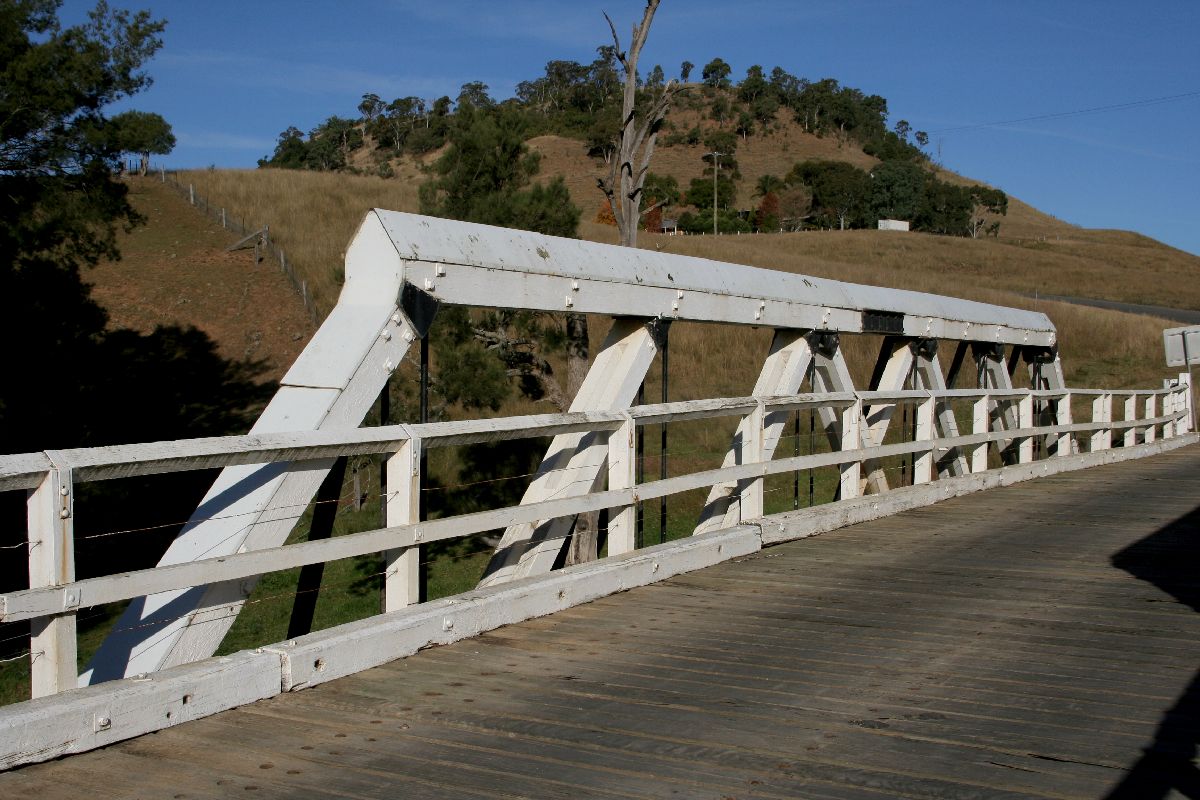

View of the low profile truss.

Junction7

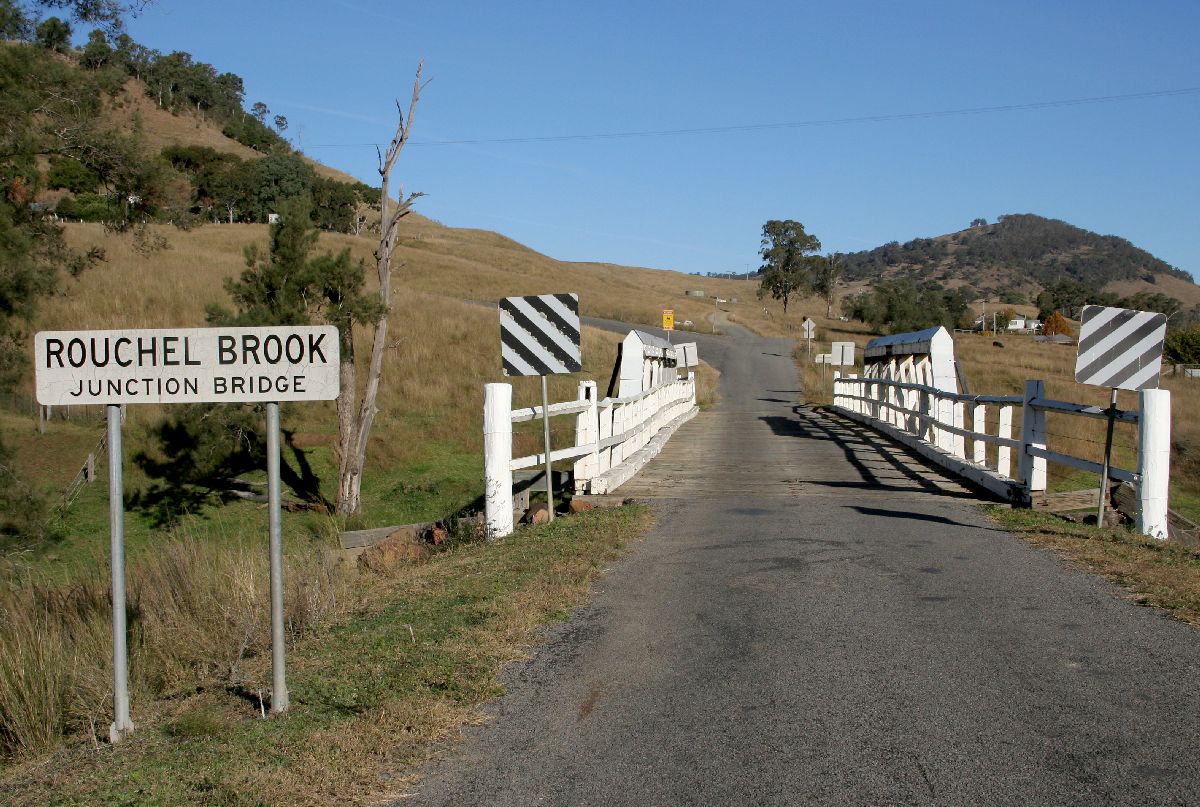

View of the bridge and signage.

Junction8

Closer view from the north side.

Junction9

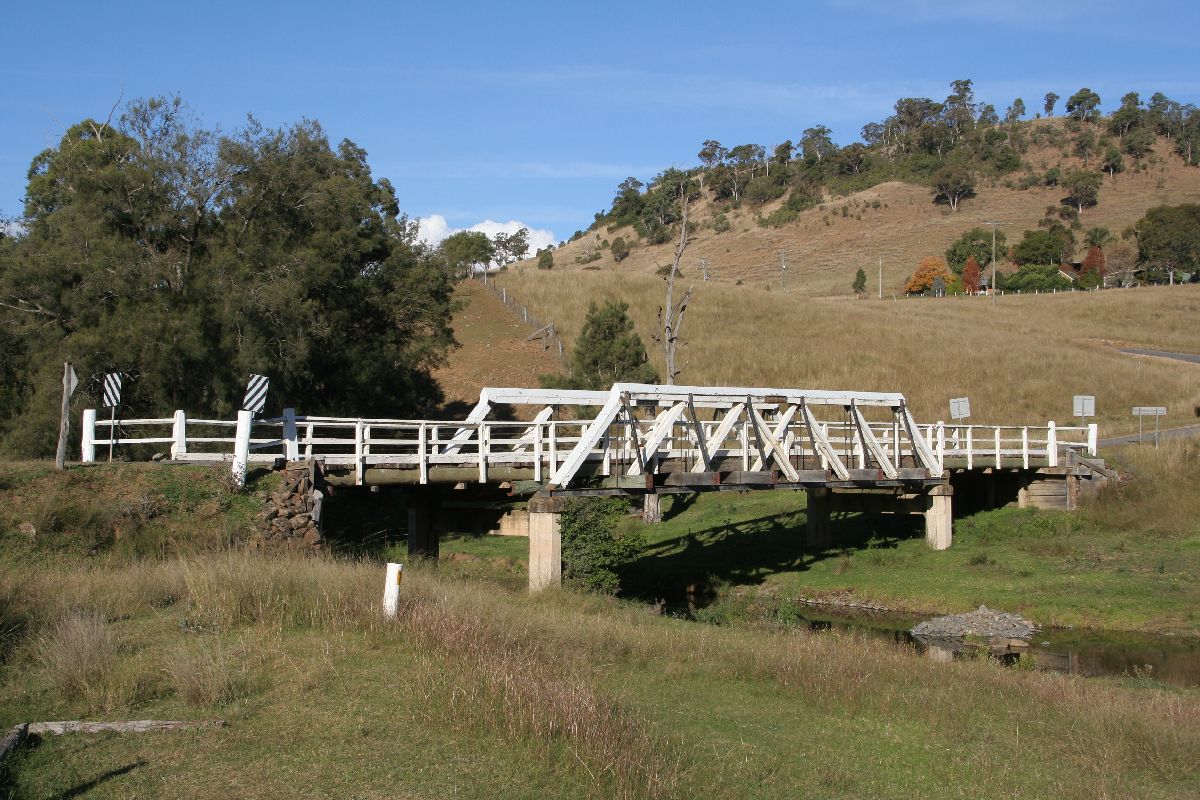

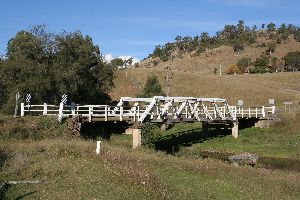

View of the entire bridge and landscape.



Korns Crossing

Back to top
Korns Crossing is a single span bridge located about 8km west of Murwillumbah on the Nerang-Murwillumbah Road.  The bridge was built in 1916 and crosses Rous River.  It has been modified over the years with the addition of weather shielding and new railing. Korns Crossing Bridge is not going to be preserved.

Korns1

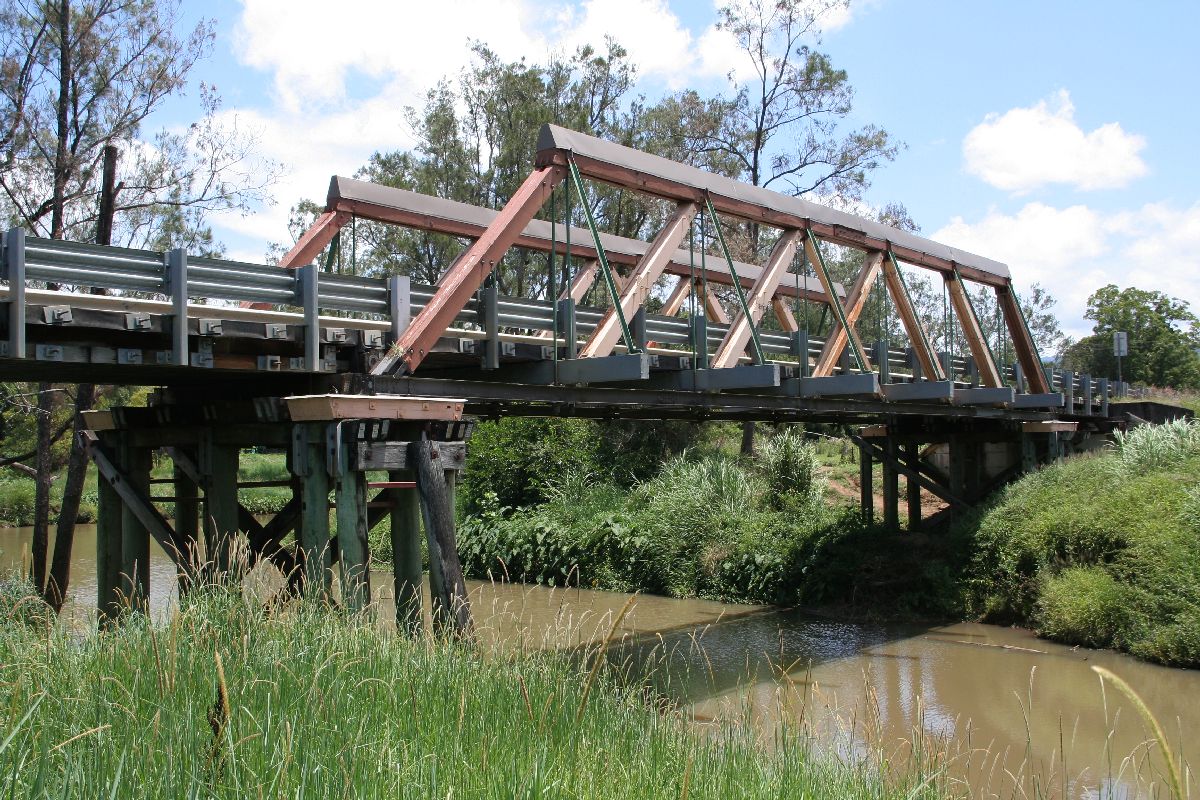

View of the bridge from the east side.

Korns2

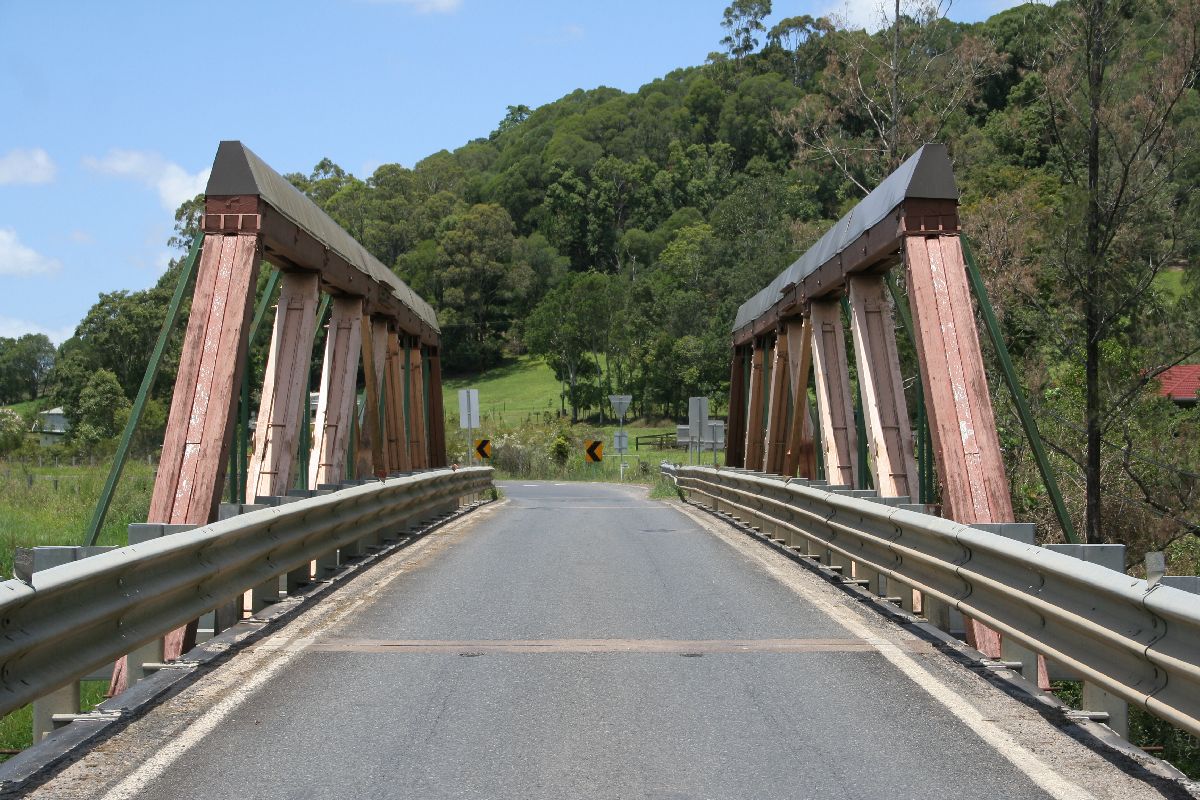

View from the West end.

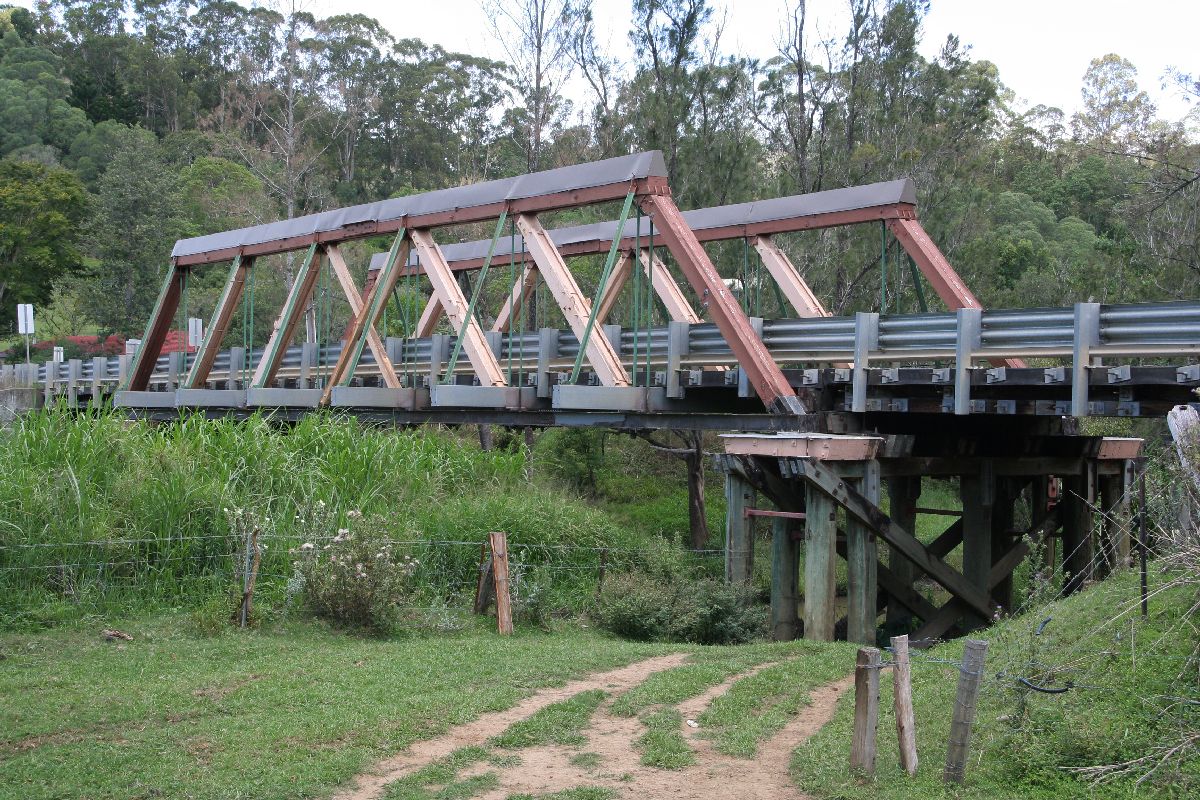

Korns3

View from the west side.

Korns4

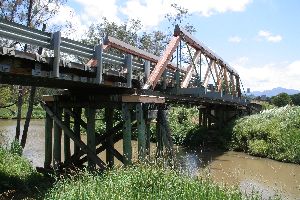

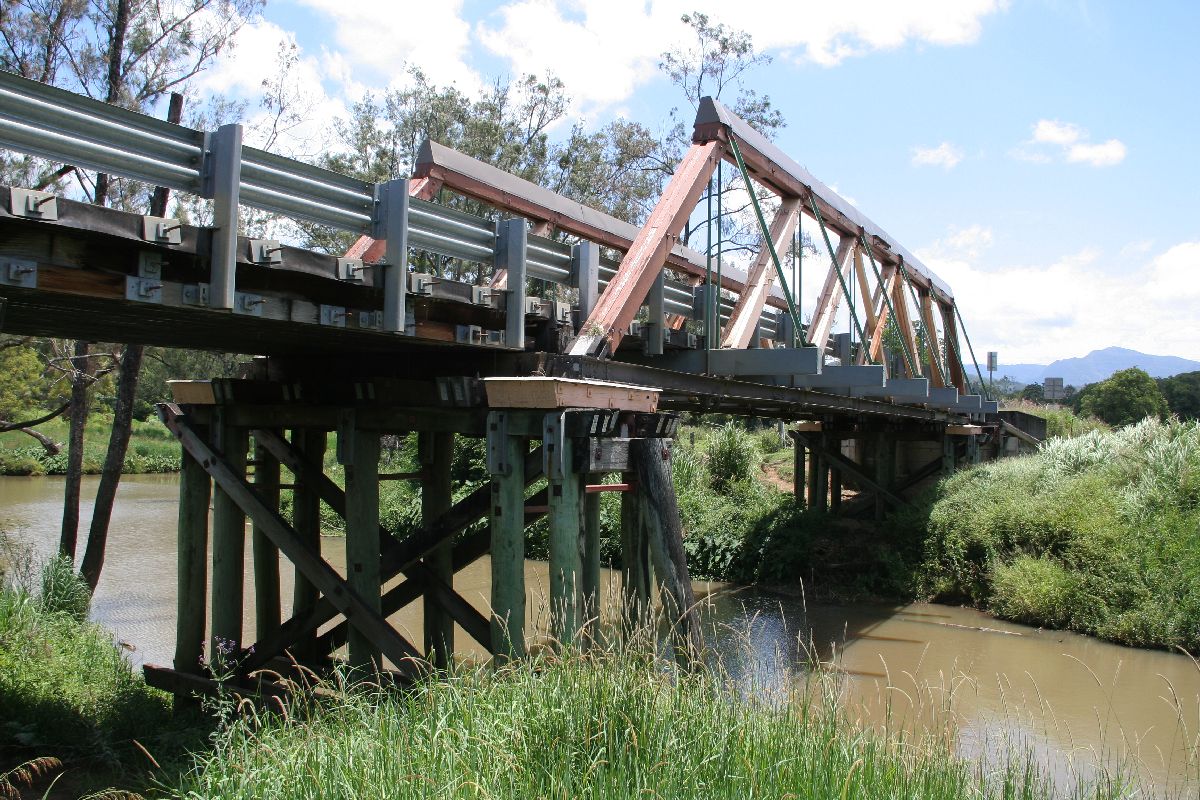

Closer view from the east side showing the double pier..

Korns5

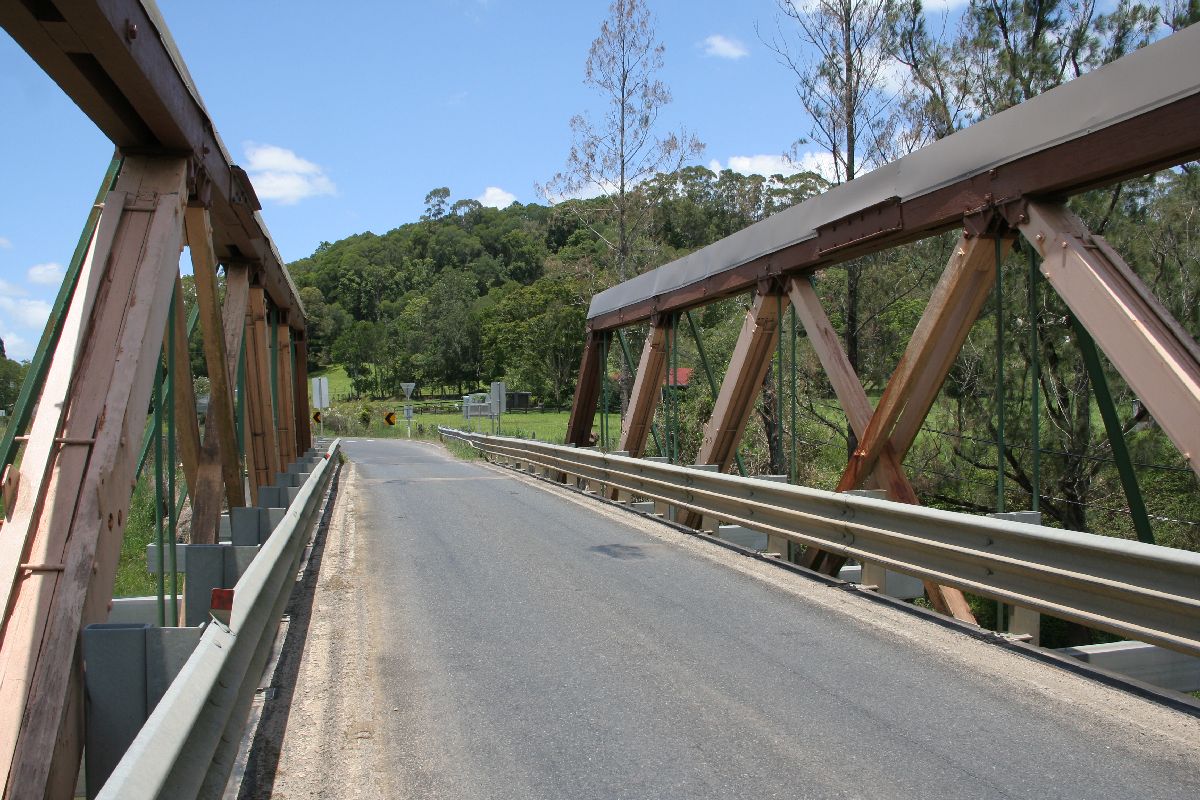

View of the deck and truss.

Korns6

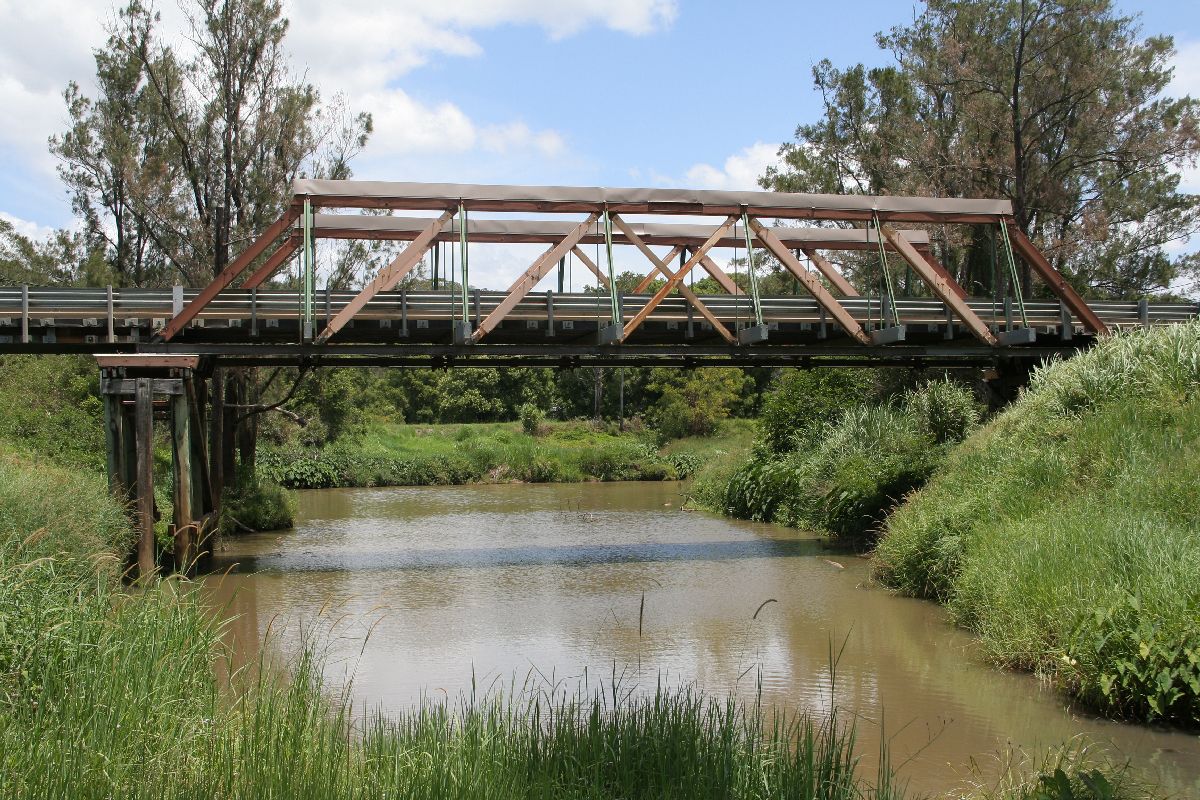

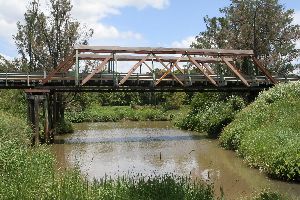

Side view of the truss and river.



Minneys Bridge

Back to top
This bridge is located on Clarence Way, about 12km south of Bruxner Highway near Tabulam.  It is a single span bridge over an unnamed waterway. The bridge was closed to all traffic in March 2014 due to its poor condition.  It is unlikely to be opened before a new bridge is built.  This bridge is surrounded by dense vegetation and is difficult to photograph.

Minneys1

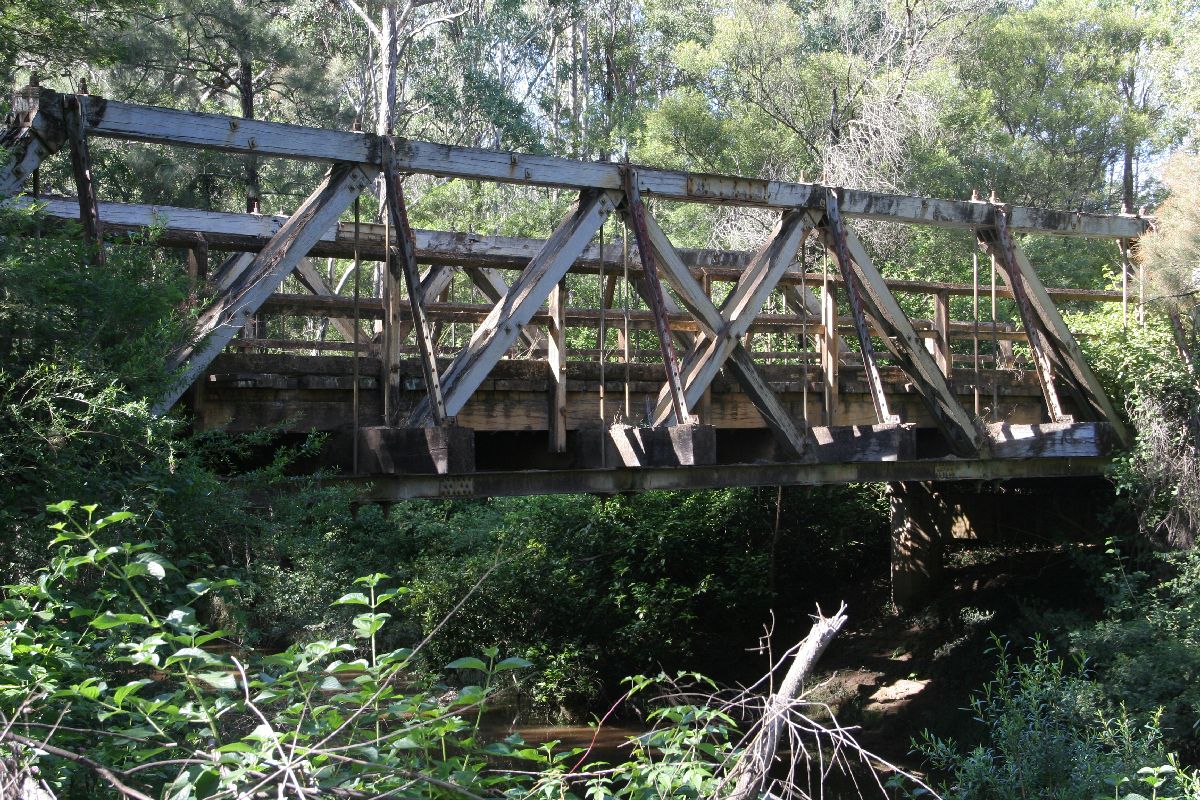

View of (some of) the bridge from the north side.

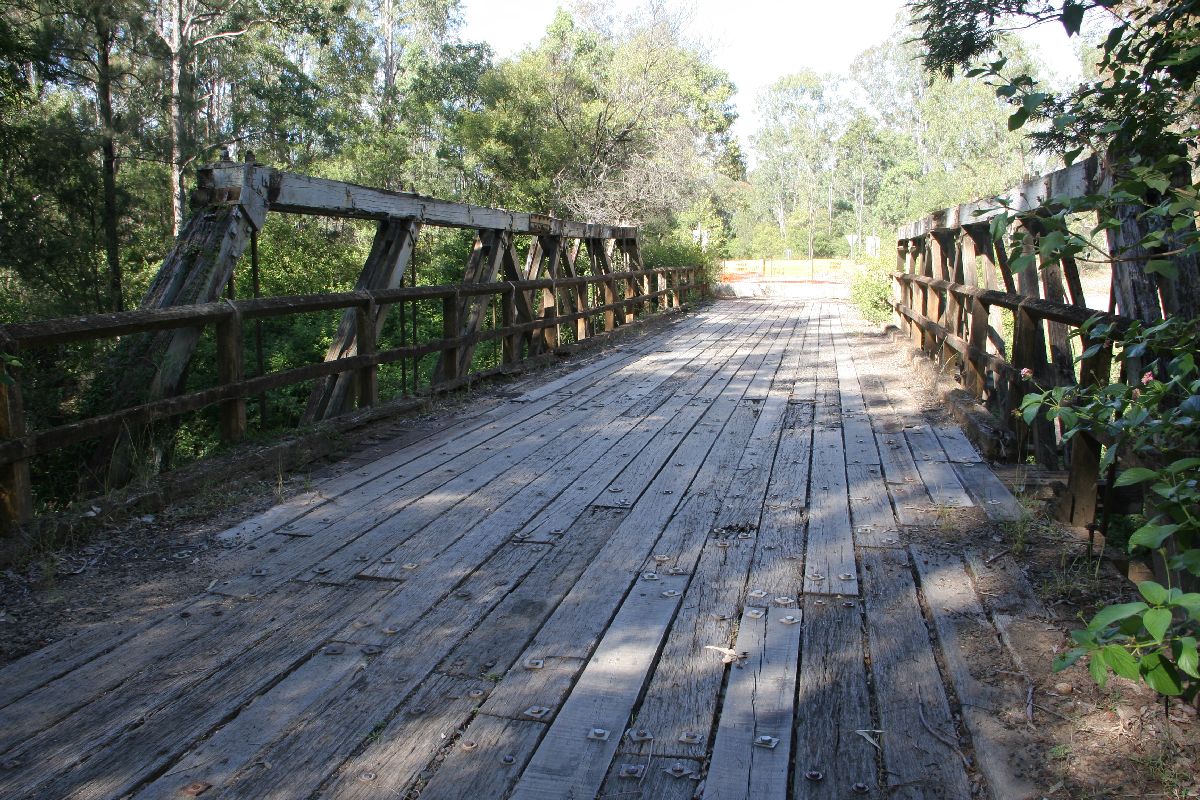

Minneys2

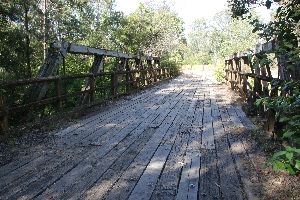

View from the north end.

Minneys3

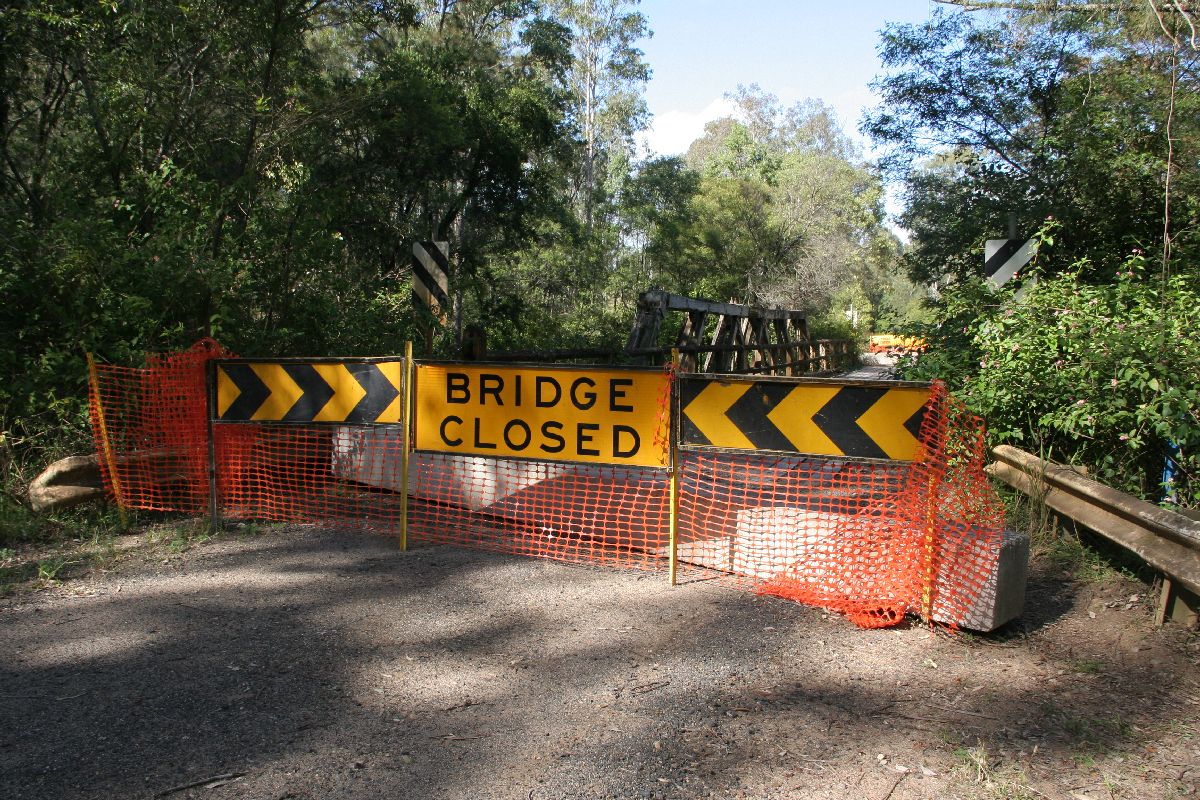

View from the north end showing the blockade.

Minneys4

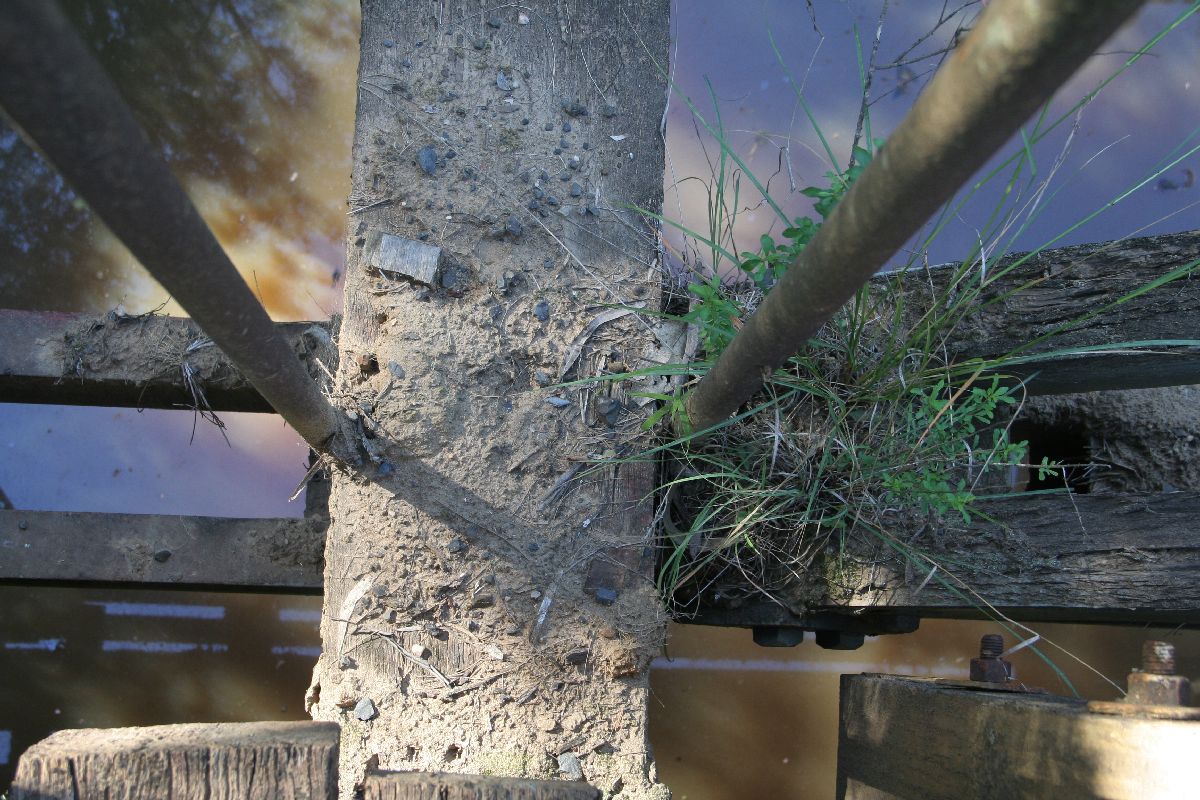

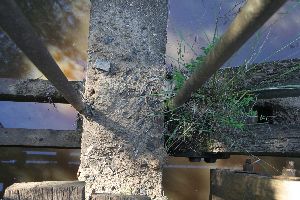

View of the bottom chord and tension rods with weeds.

Minneys5

View of the truss.

Minneys6

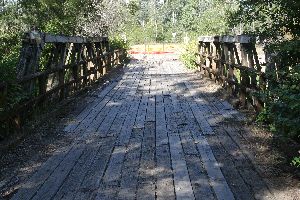

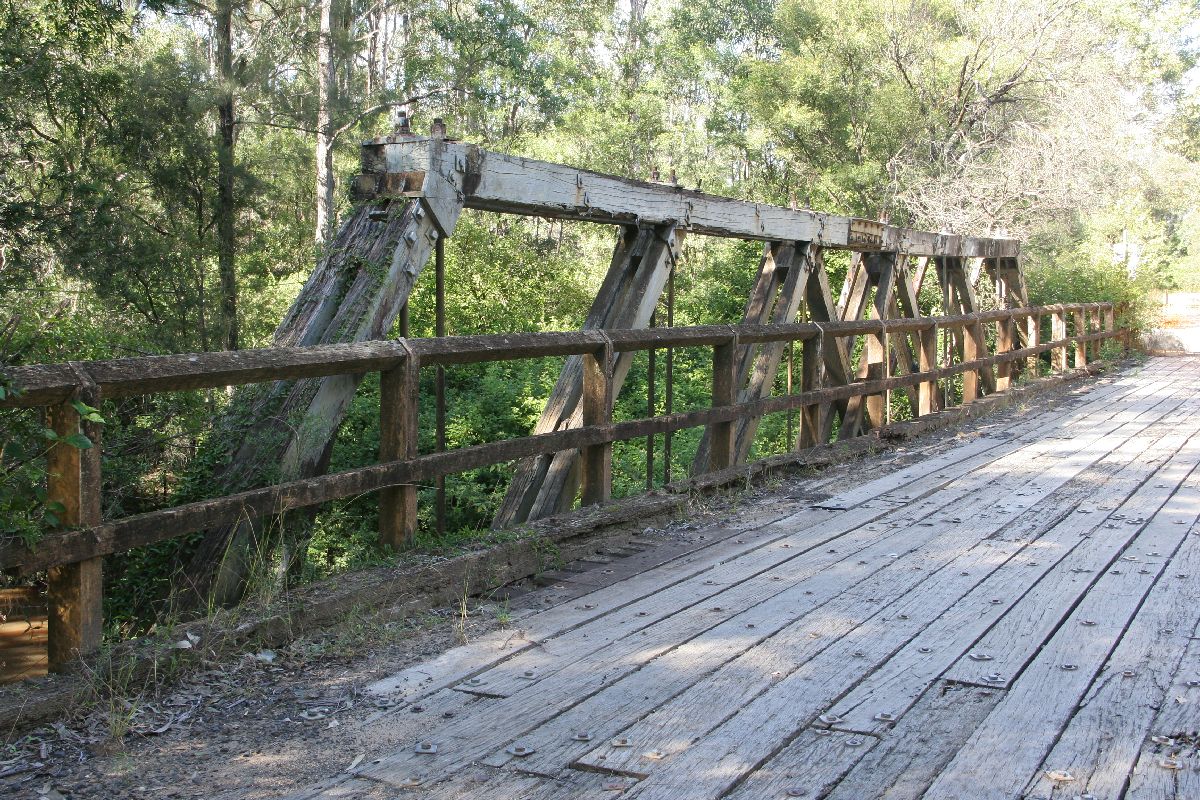

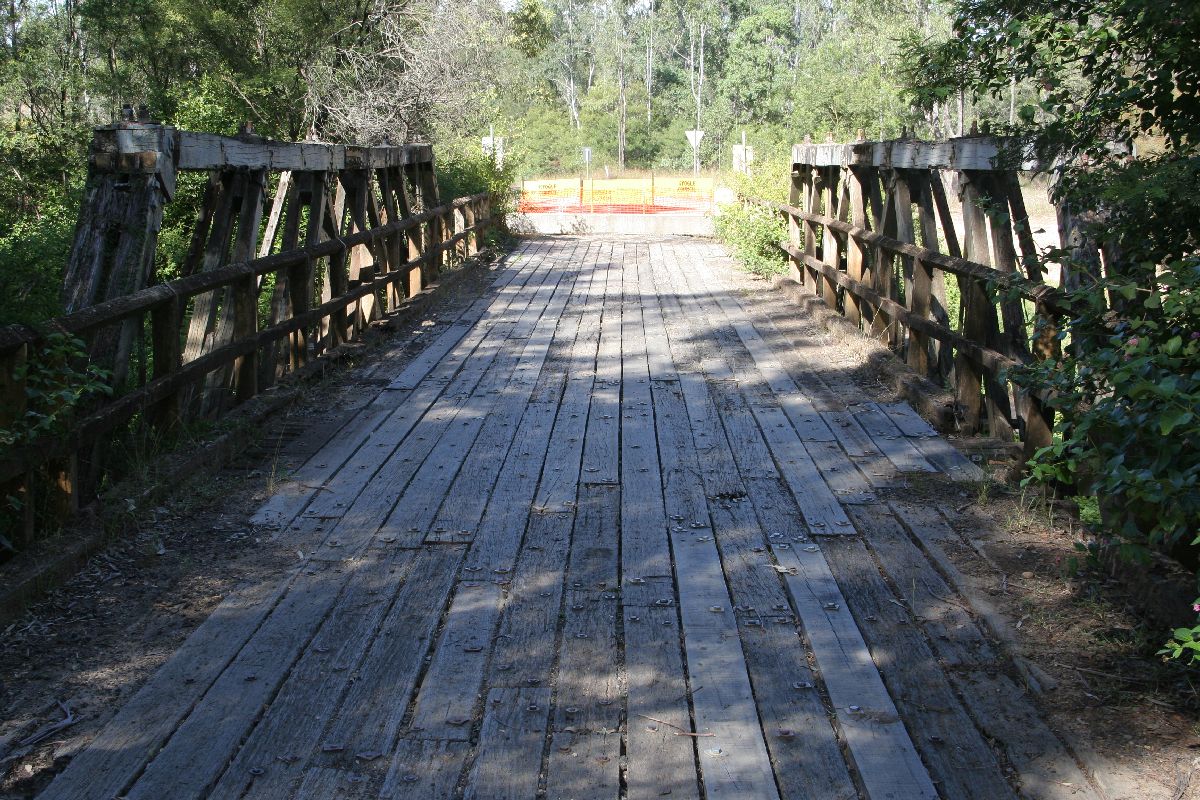

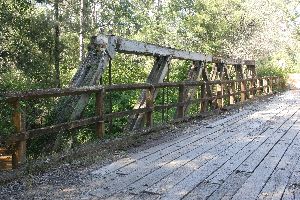

View of the deck and trusses.



New Buildings Bridge

Back to top
New Buildings Bridge is a three span truss built in 1921 over the Towamba River.  It is located on New Buildings Road at the locality of New Buildings, about 38km west of Pambula. It was constructed using parts recovered from the original Towamba Bridge built in 1911. This bridge was located several kilometres downstream and was washed away in a flood in 1919. It was replaced with a low level bridge and New Buildings Bridge was constructed as a high level bridge.  New Buildings Bridge is completely original and will be preserved.  It is the only surviving three span Dare truss.

NewBuildings1

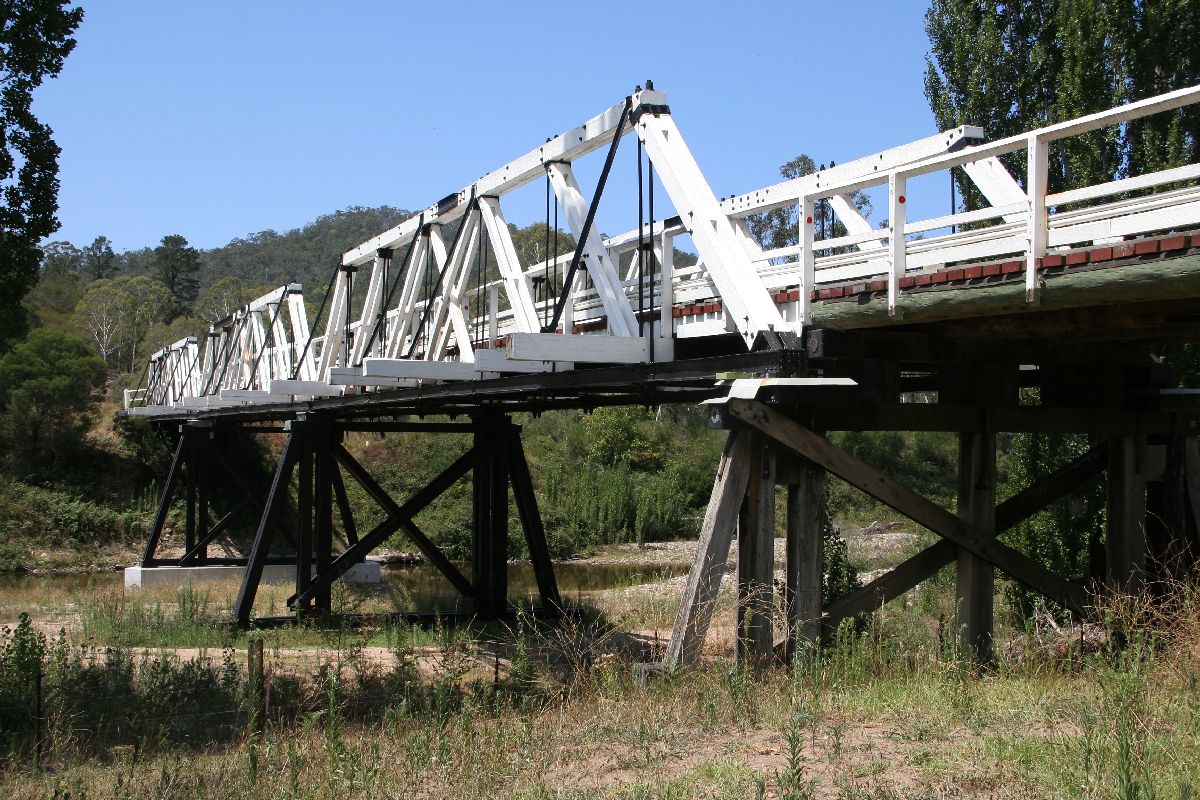

View of the bridge from the west side.

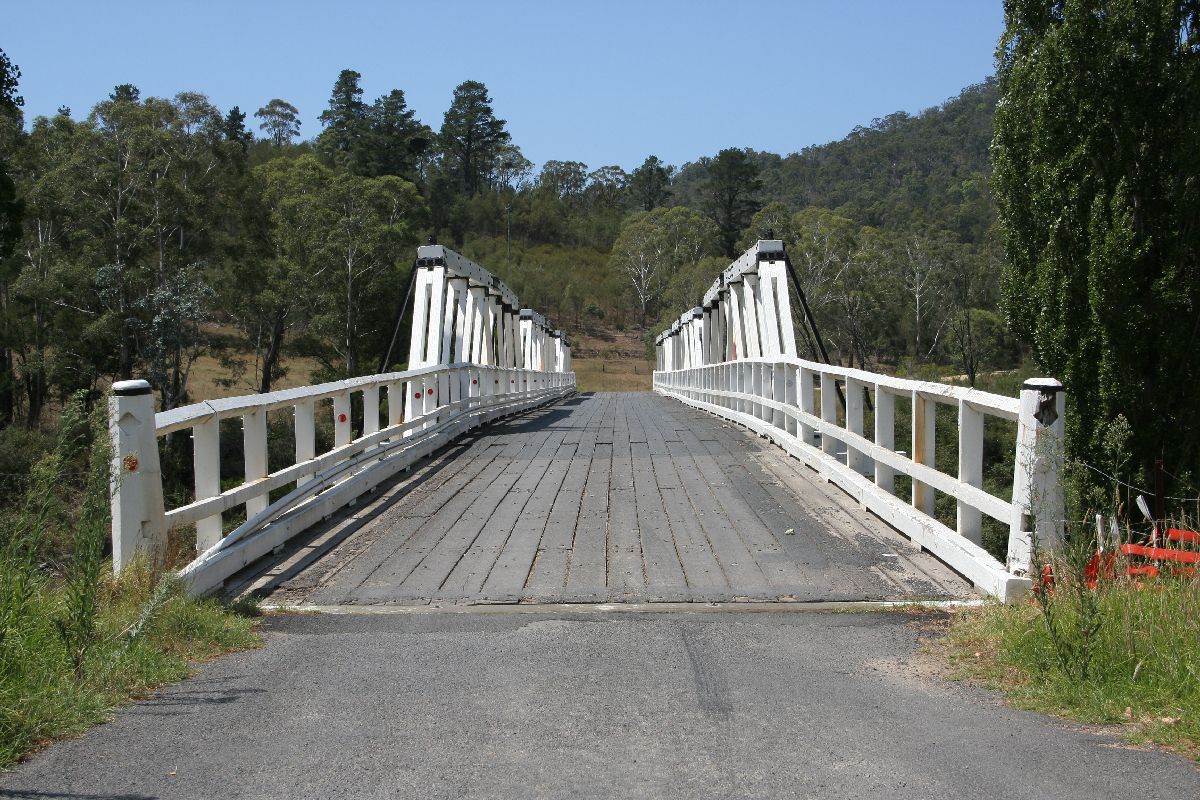

NewBuildings2

View from the west end.

NewBuildings3

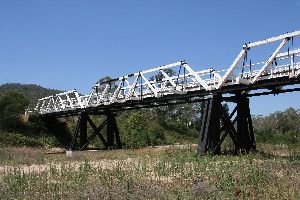

View from west side of the river bed.

NewBuildings4

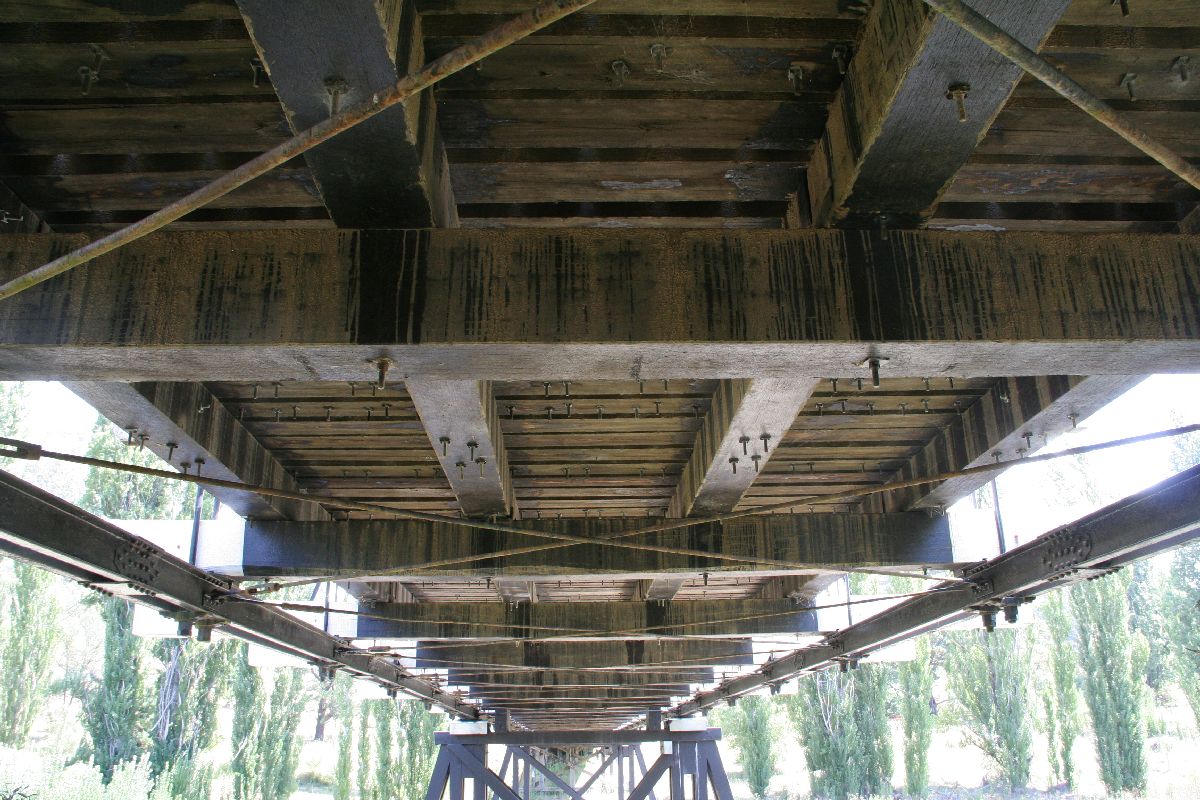

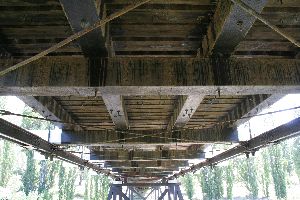

Underside view.

NewBuildings5

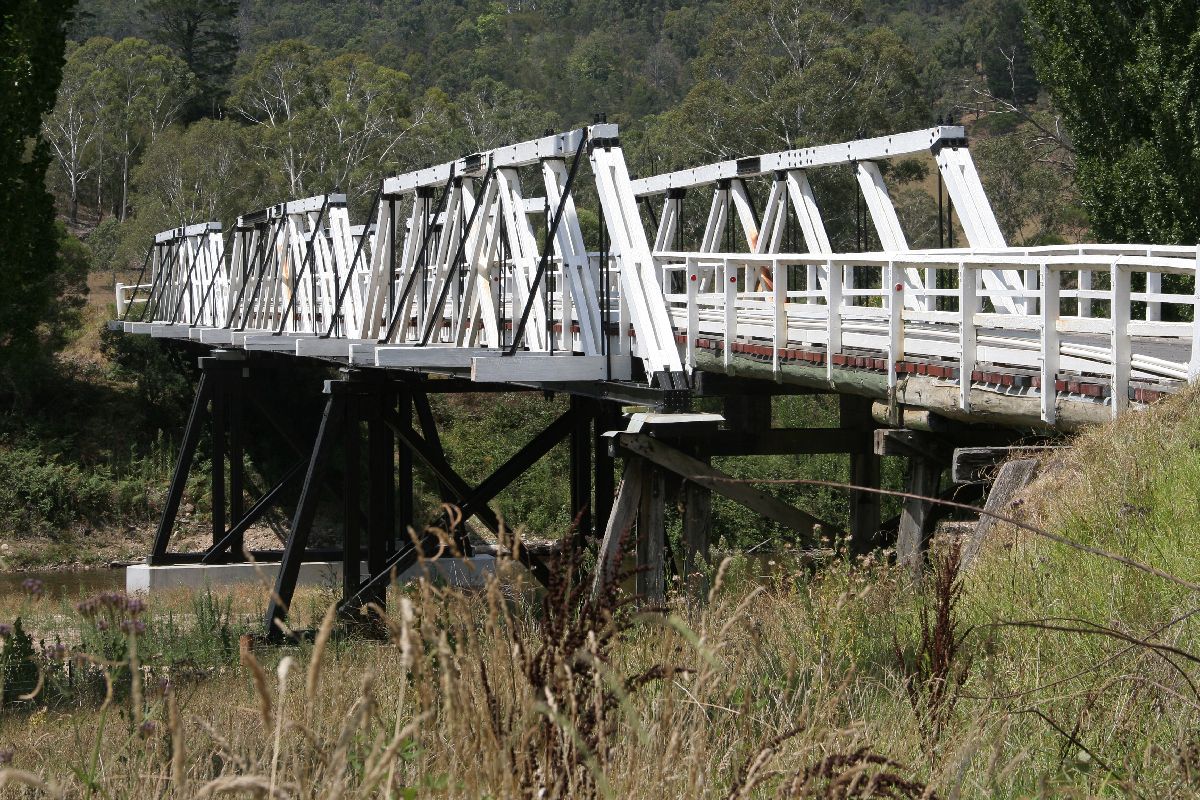

Closer view from the west side.

NewBuildings6

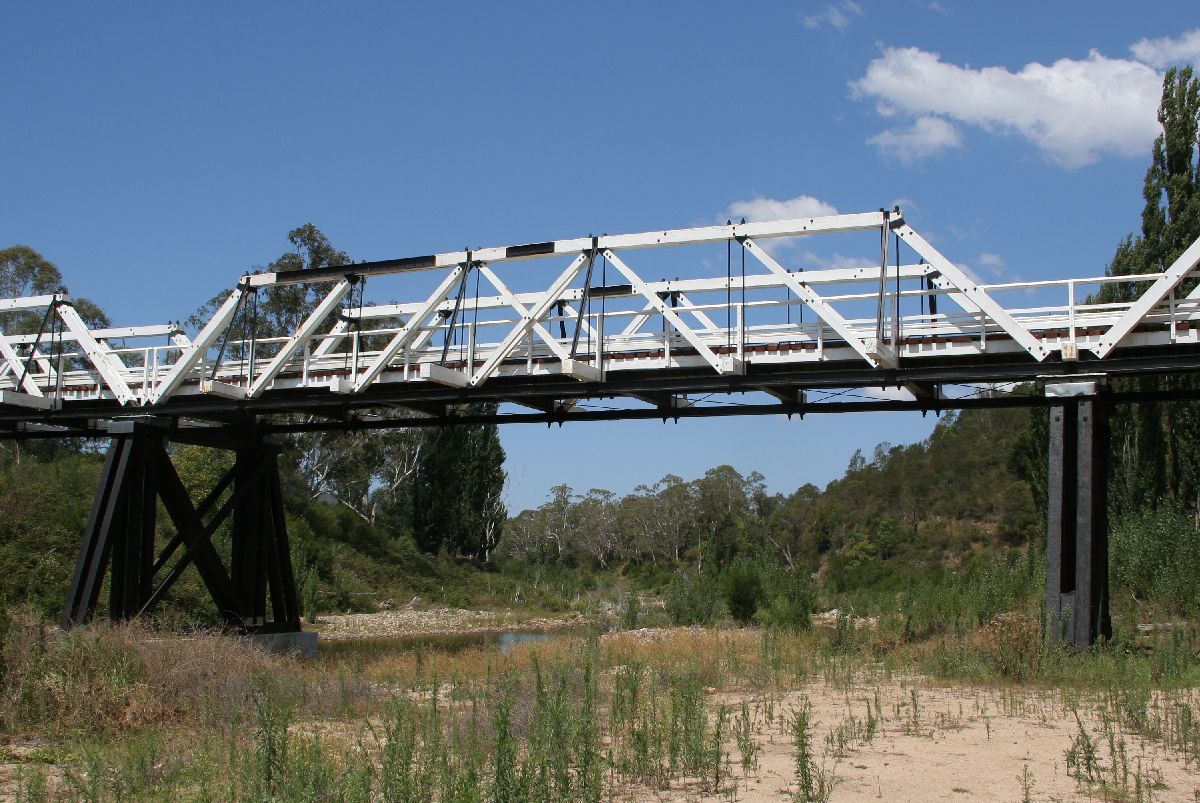

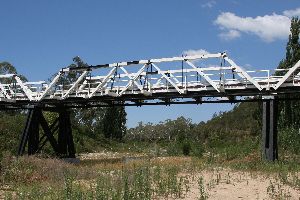

Close up of one of the centre truss.

NewBuildings7

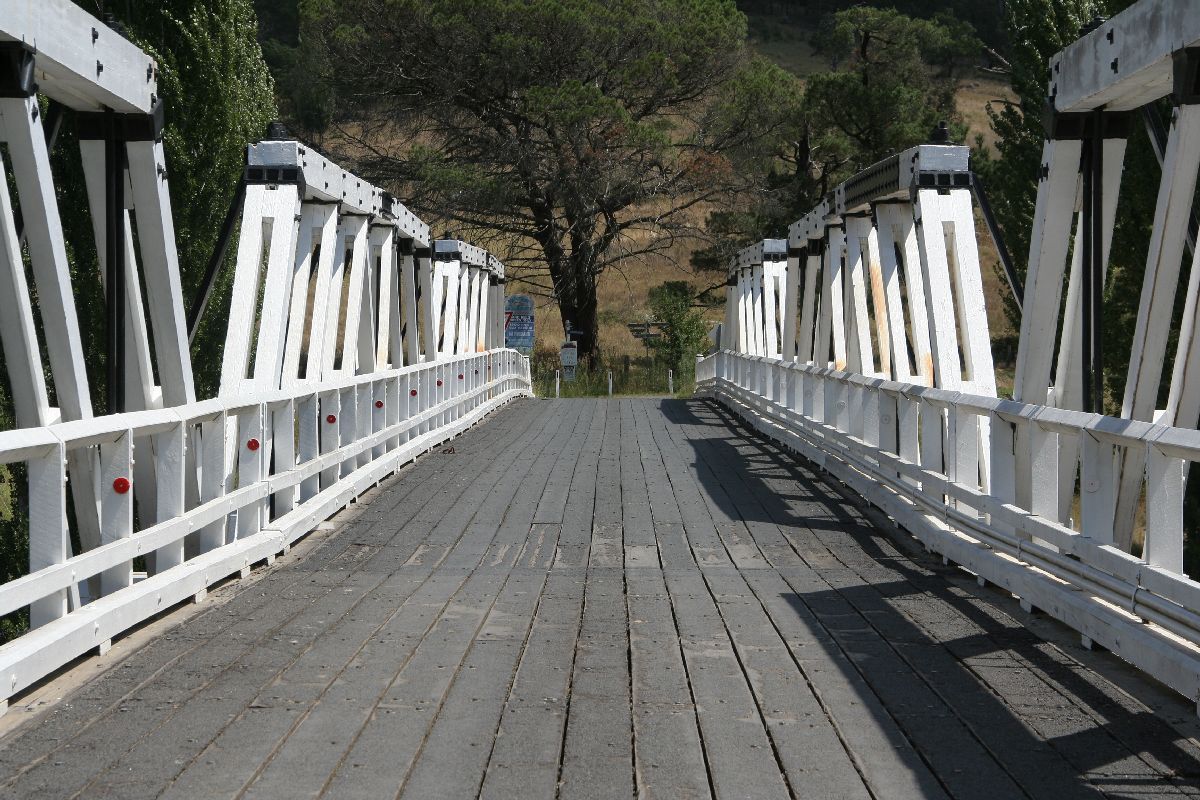

View of the deck and trusses.

NewBuildings8

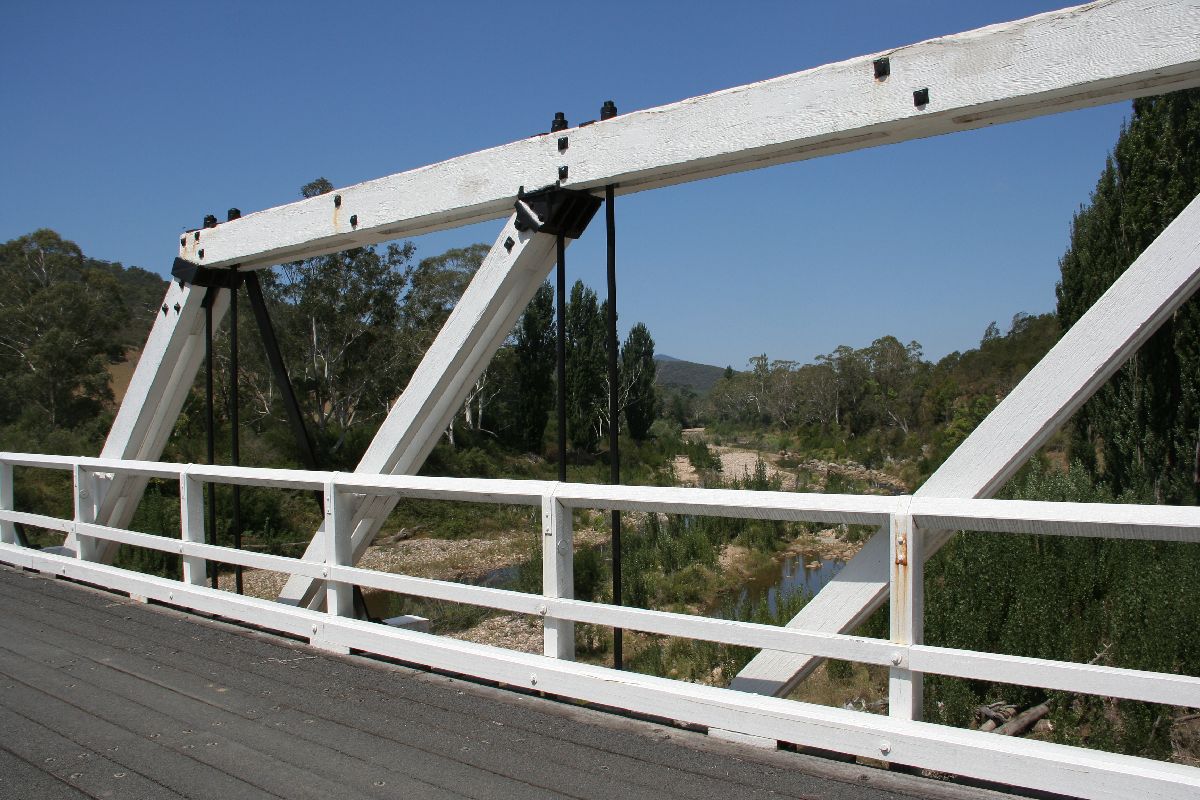

View of the truss and Towamba River.

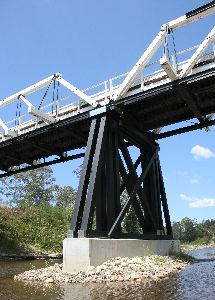

NewBuildings9

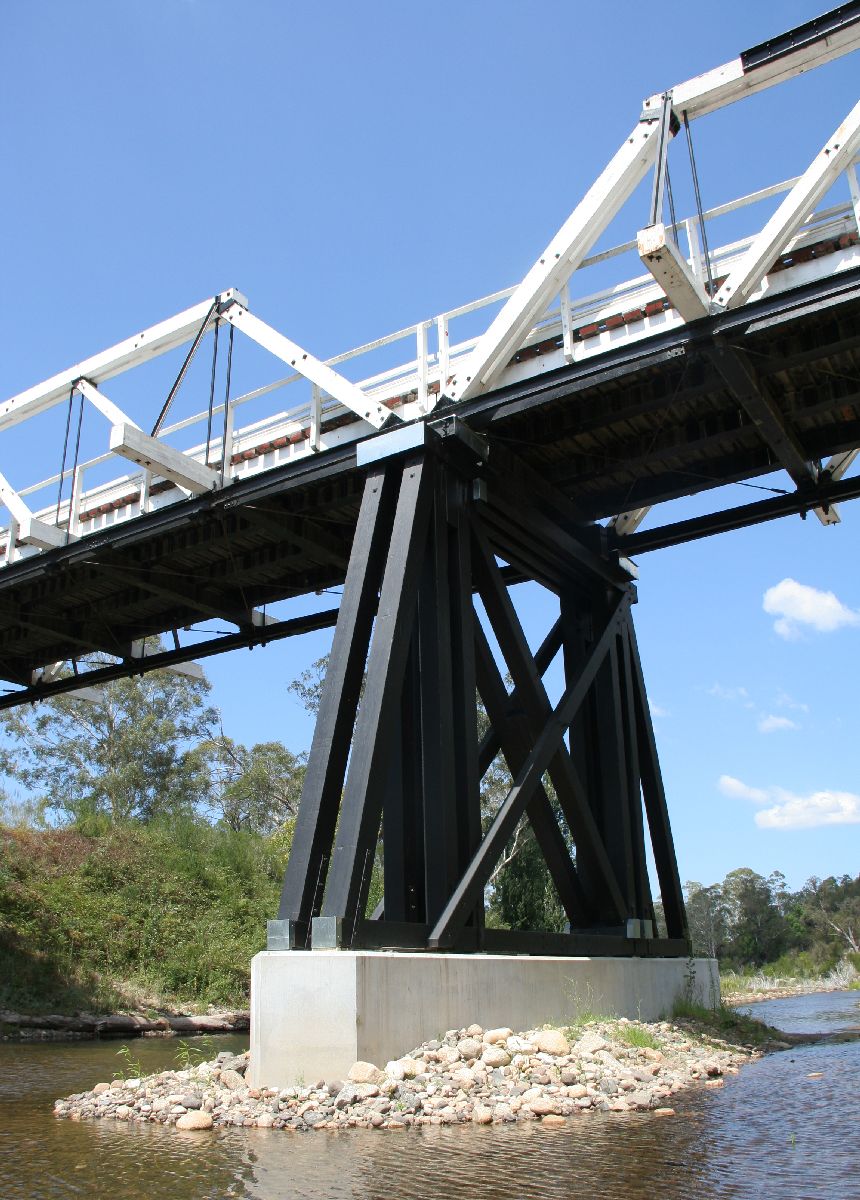

View of one of the piers.



Rawsonville Bridge

Back to top
This two span bridge was built in 1916 over the Macquarie River.  It is located on Rawsonville Bridge Road just north of Mitchell Highway, about 15km east of Dubbo. It features concrete piers. Rawsonville Bridge is going to be preserved.

Rawsonville1

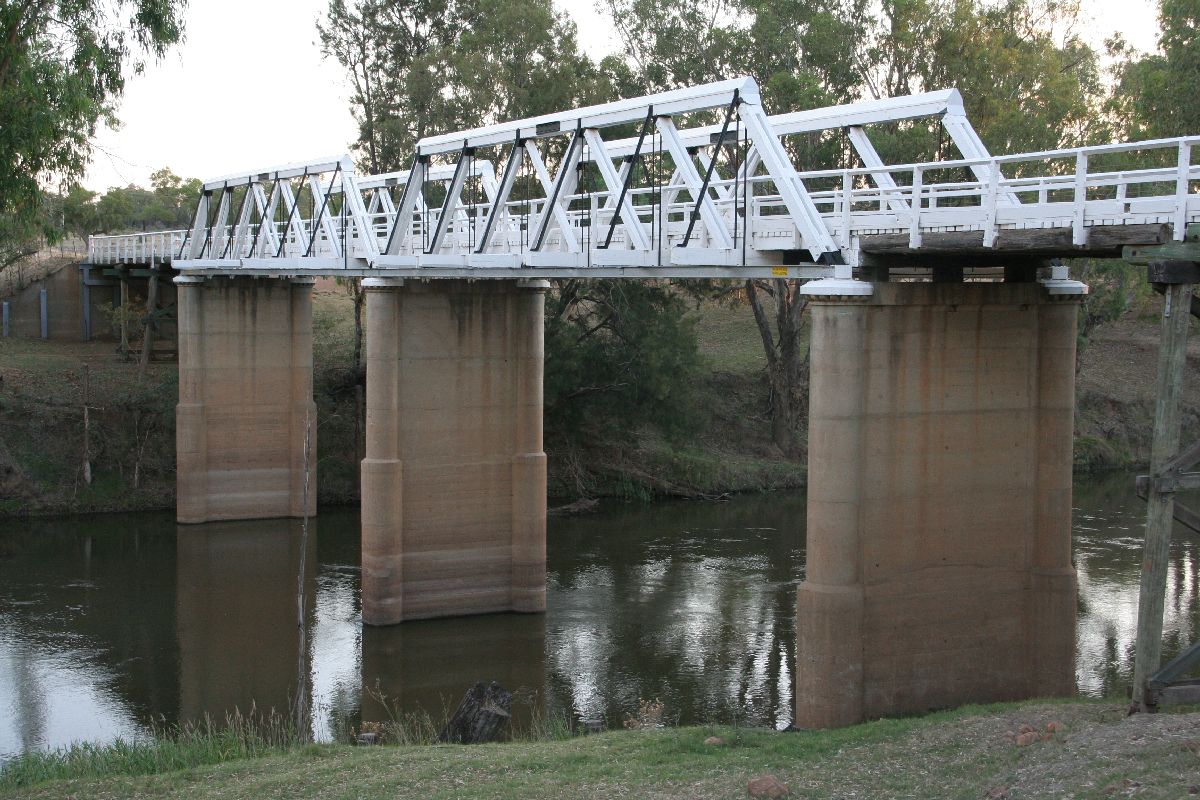

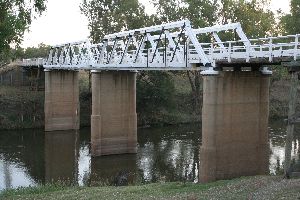

View of the bridge from the north side.

Rawsonville2

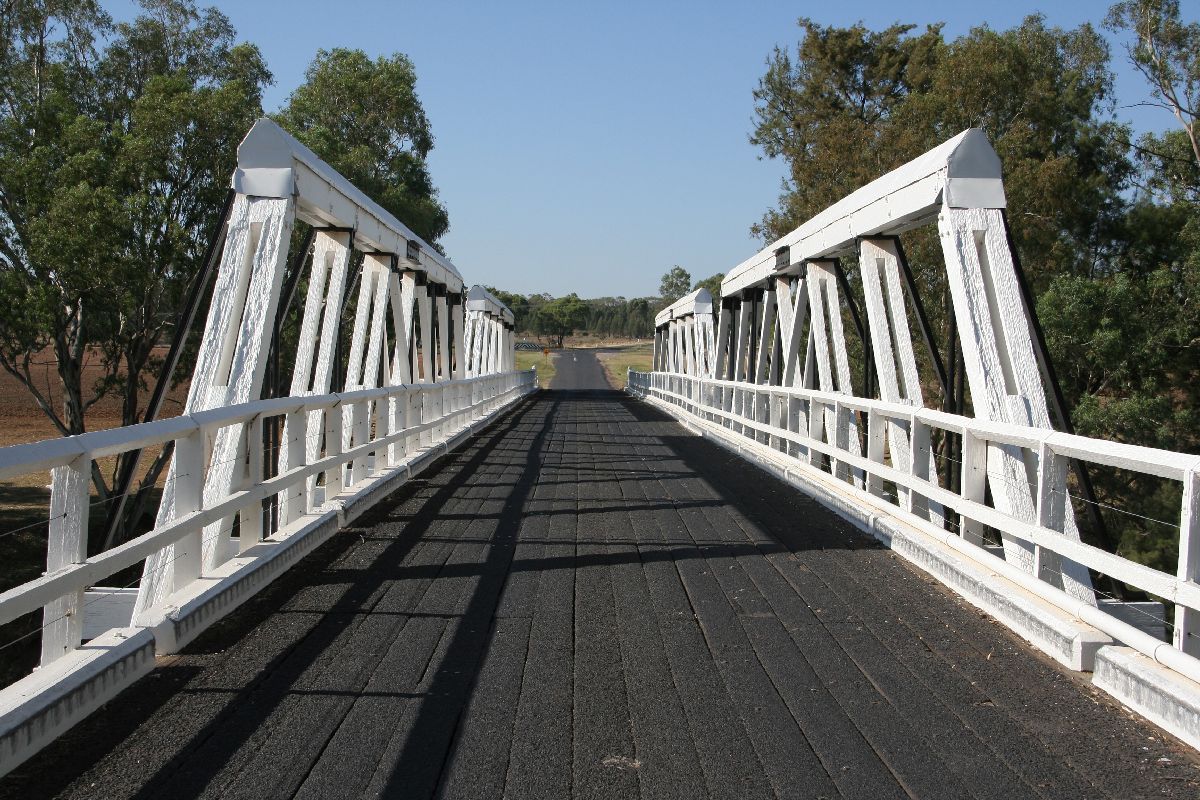

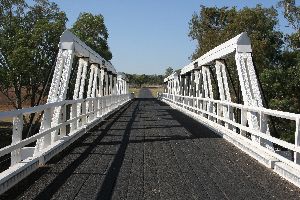

View from the north end.

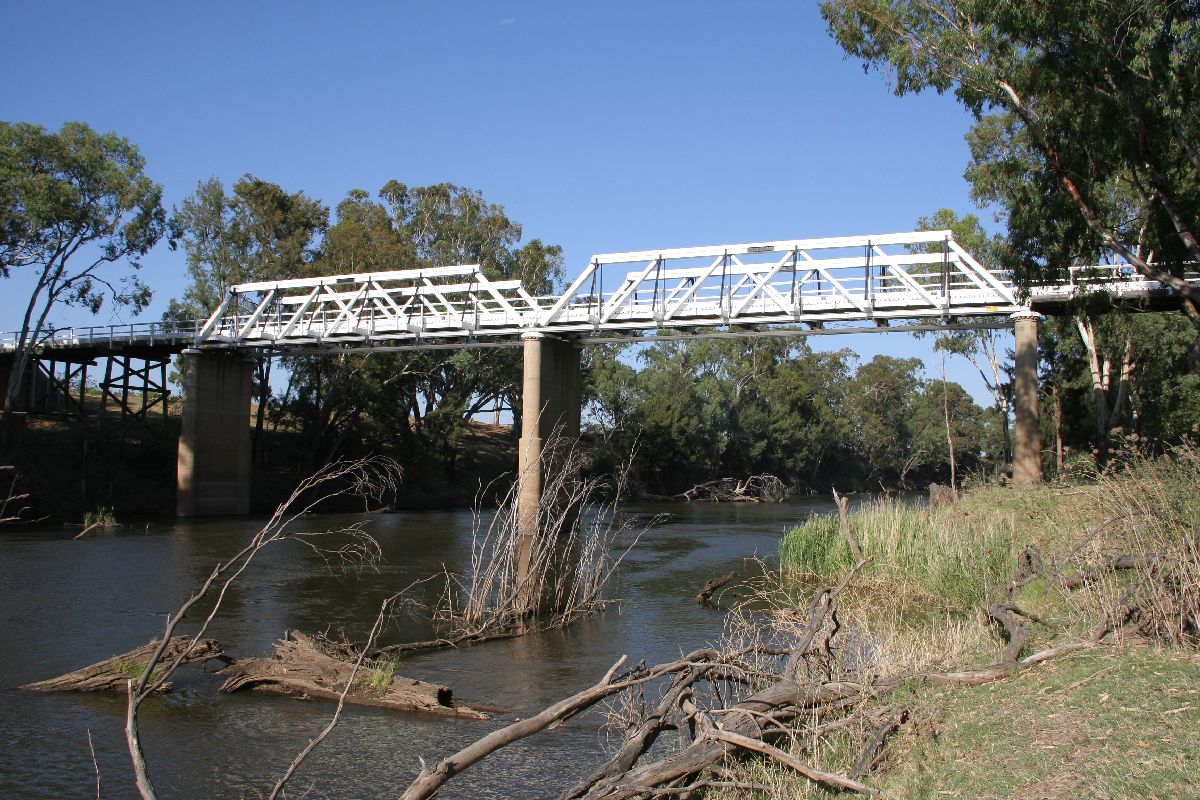

Rawsonville3

View from river bank on the north side.

Rawsonville4

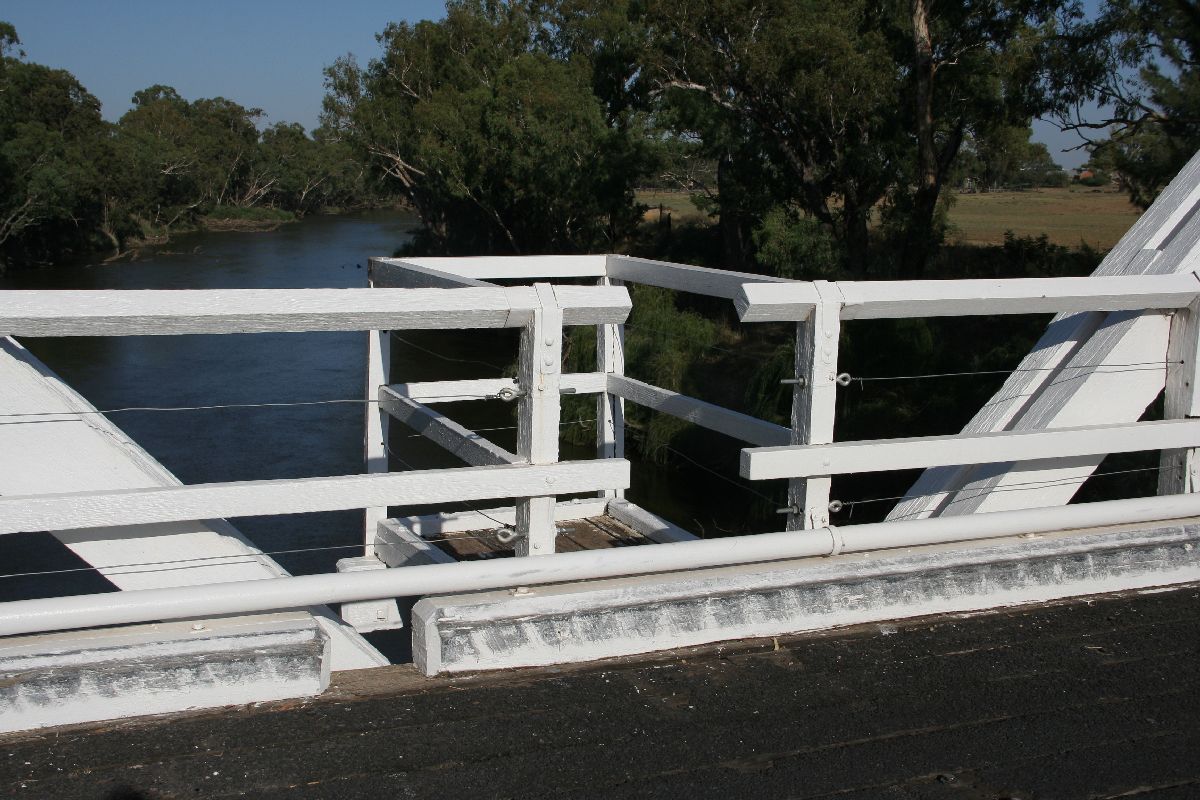

View of the pedestrian alcove.  Not all timber truss bridges have these.

Rawsonville5

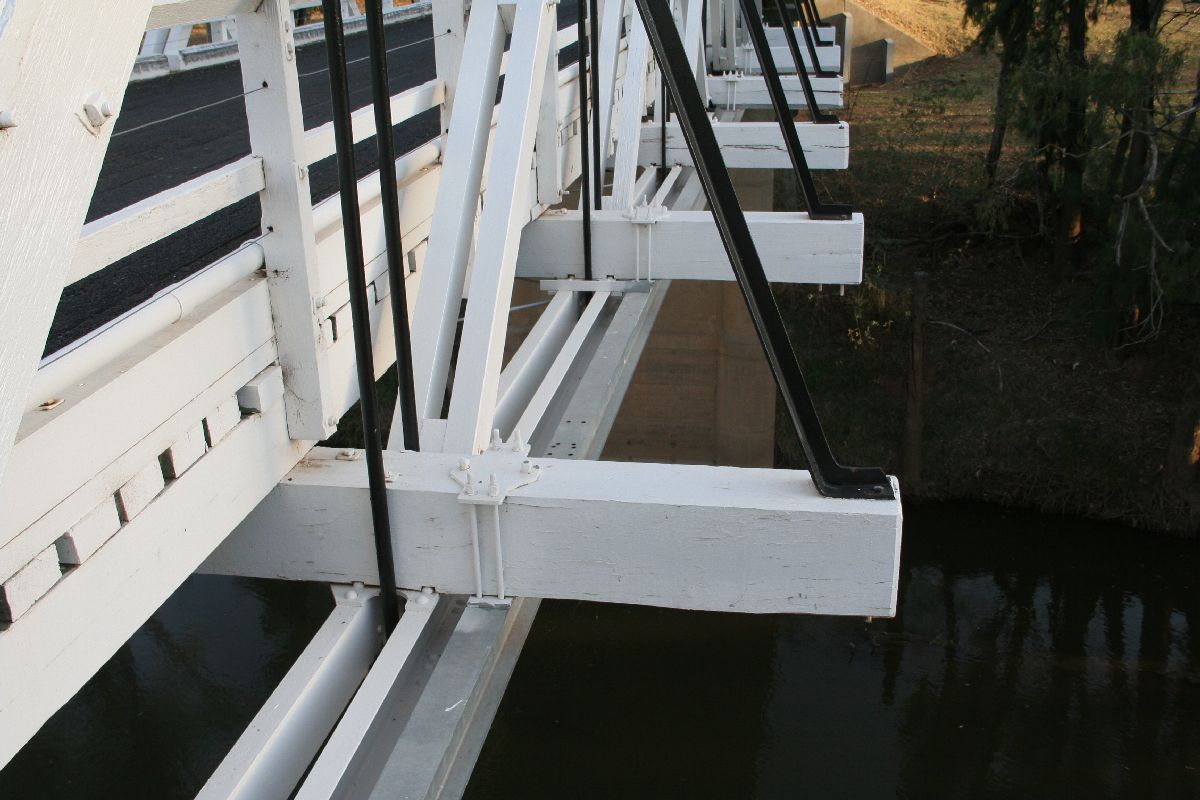

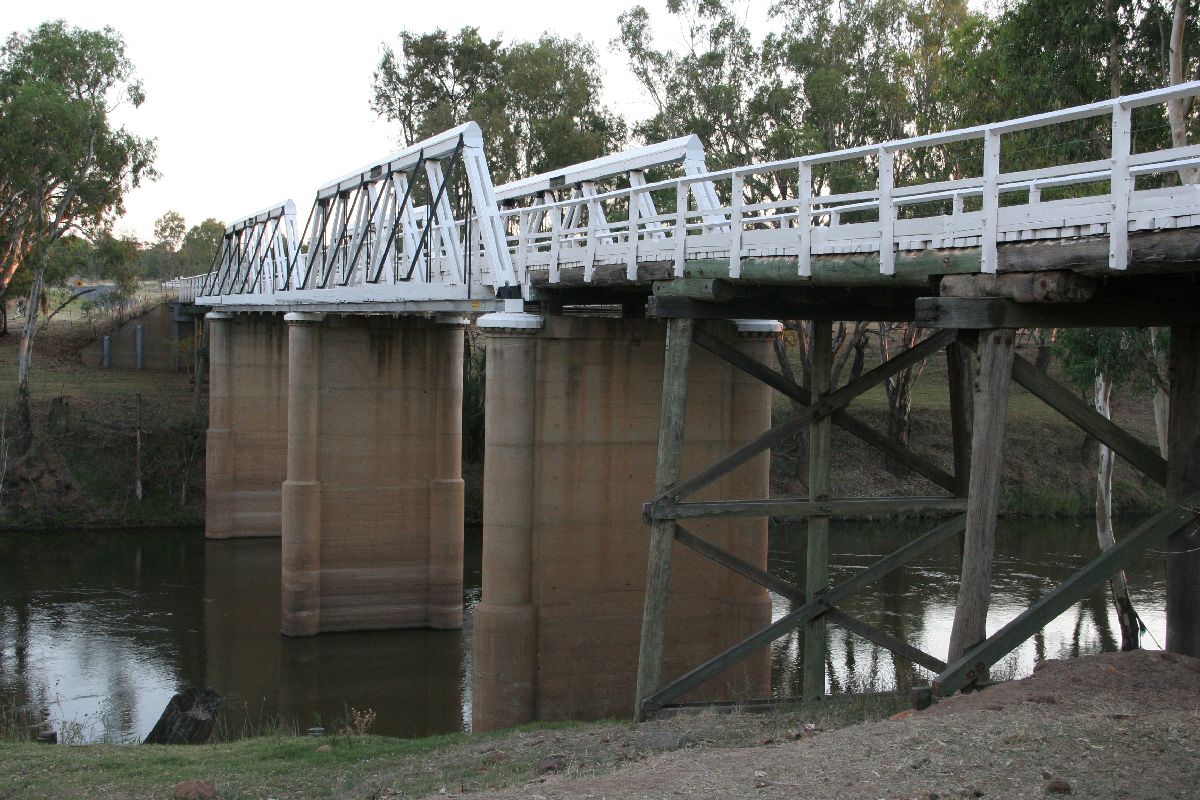

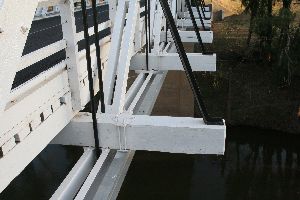

The alcoves give good vantage points to photograph the outside of the truss.

Rawsonville6

Close view from the north side.

Rawsonville7

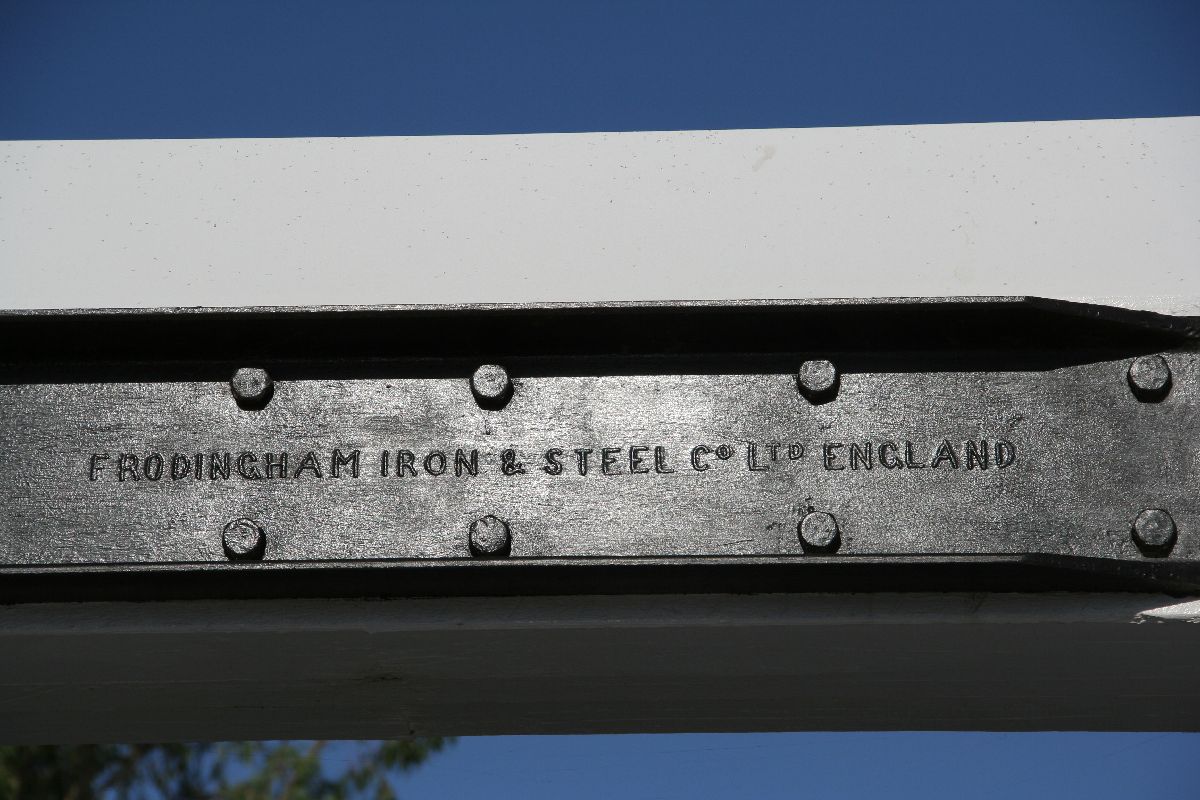

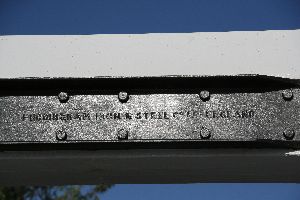

The iron parts are from England as very little iron or steel was made in Australia at the time.

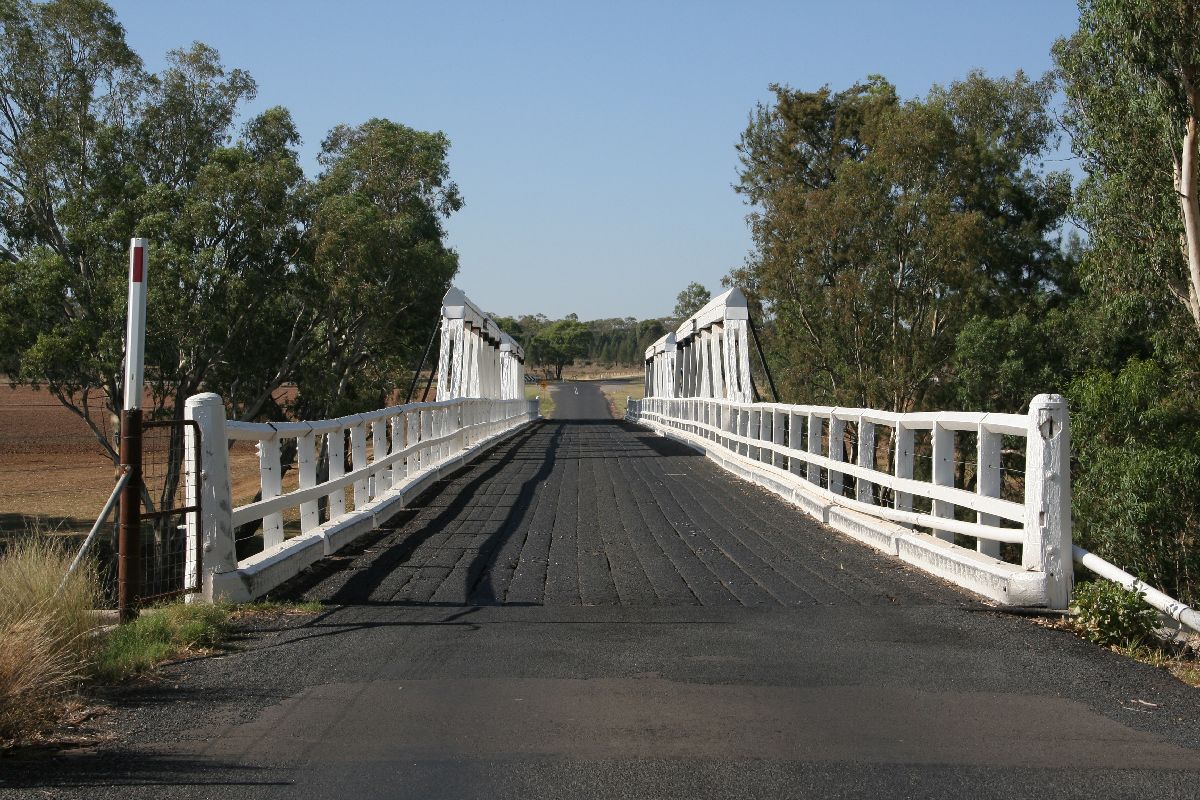

Rawsonville8

View from the north end.



Scabbing Flat Bridge

Back to top
Scabbing Flat Bridge is a two span truss over the Macquarie River. It is located on Arthurville Road about 4km south of Geurie. It has iron piers and was constructed in 1911. It has not been rebuilt or upgraded and is going to be preserved.

ScabbingFlat1

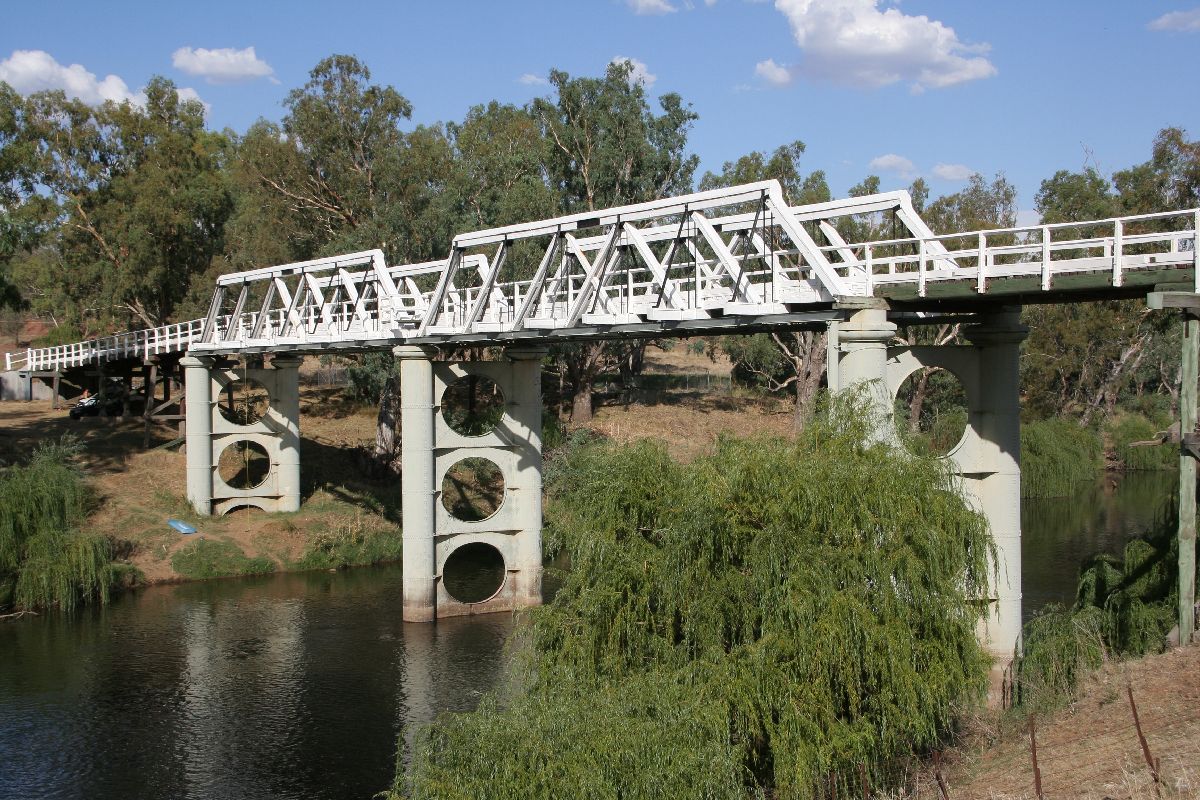

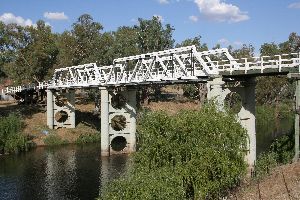

View of the bridge from the south west side.

ScabbingFlat2

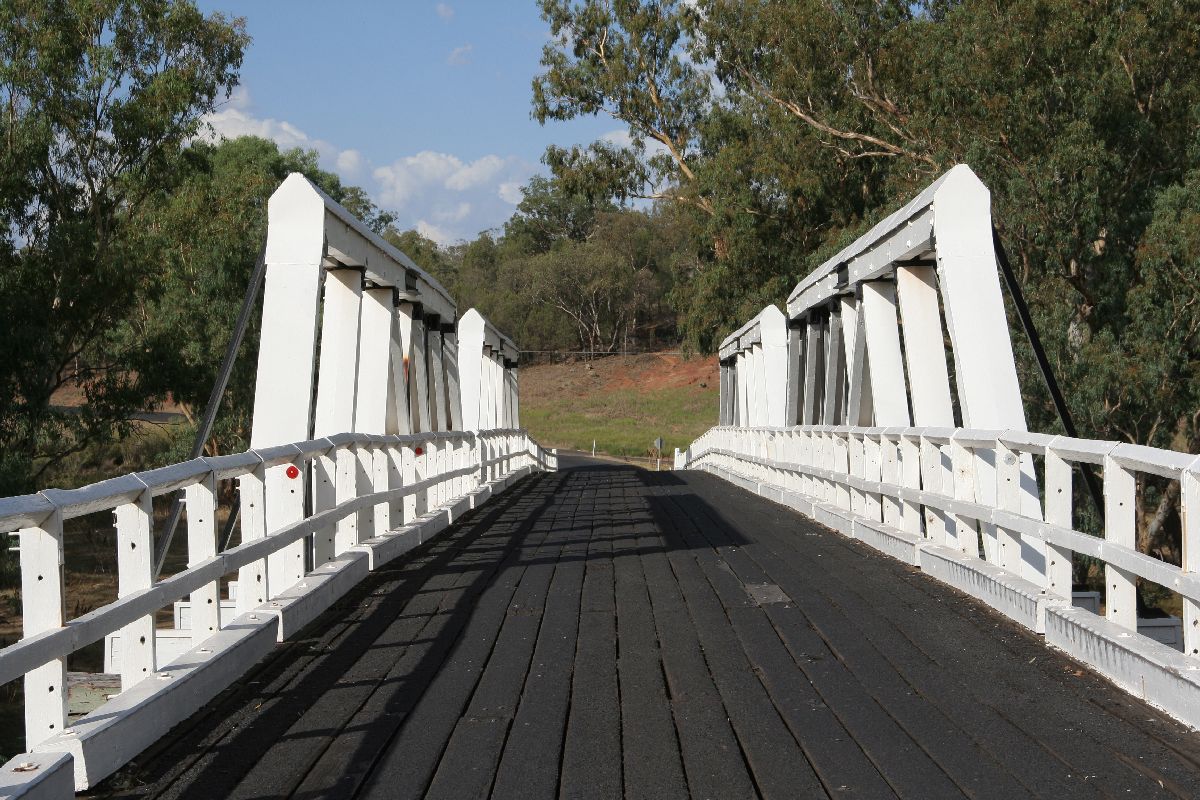

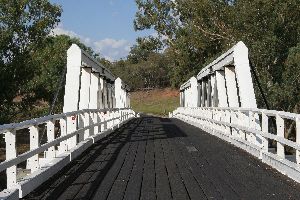

View from the south end.

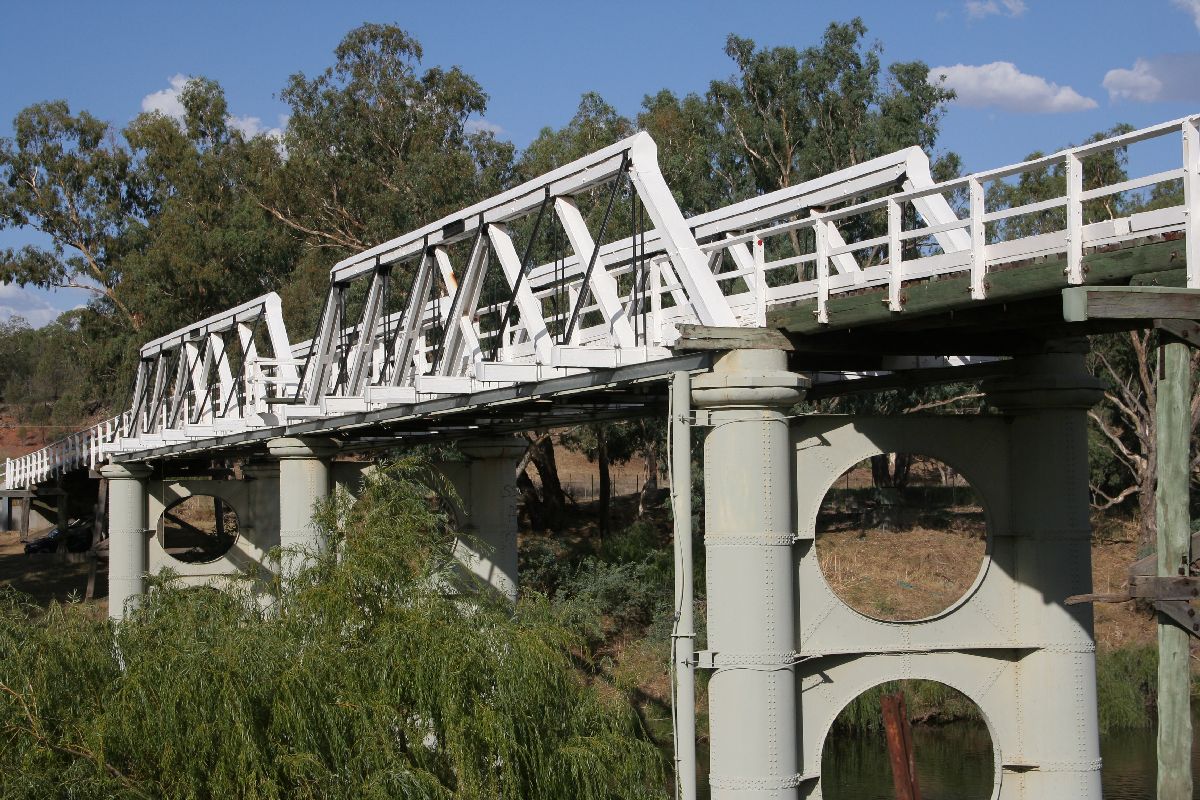

ScabbingFlat3

Closer view from the south west side.

ScabbingFlat4

Many of the truss bridges have these signs.

ScabbingFlat5

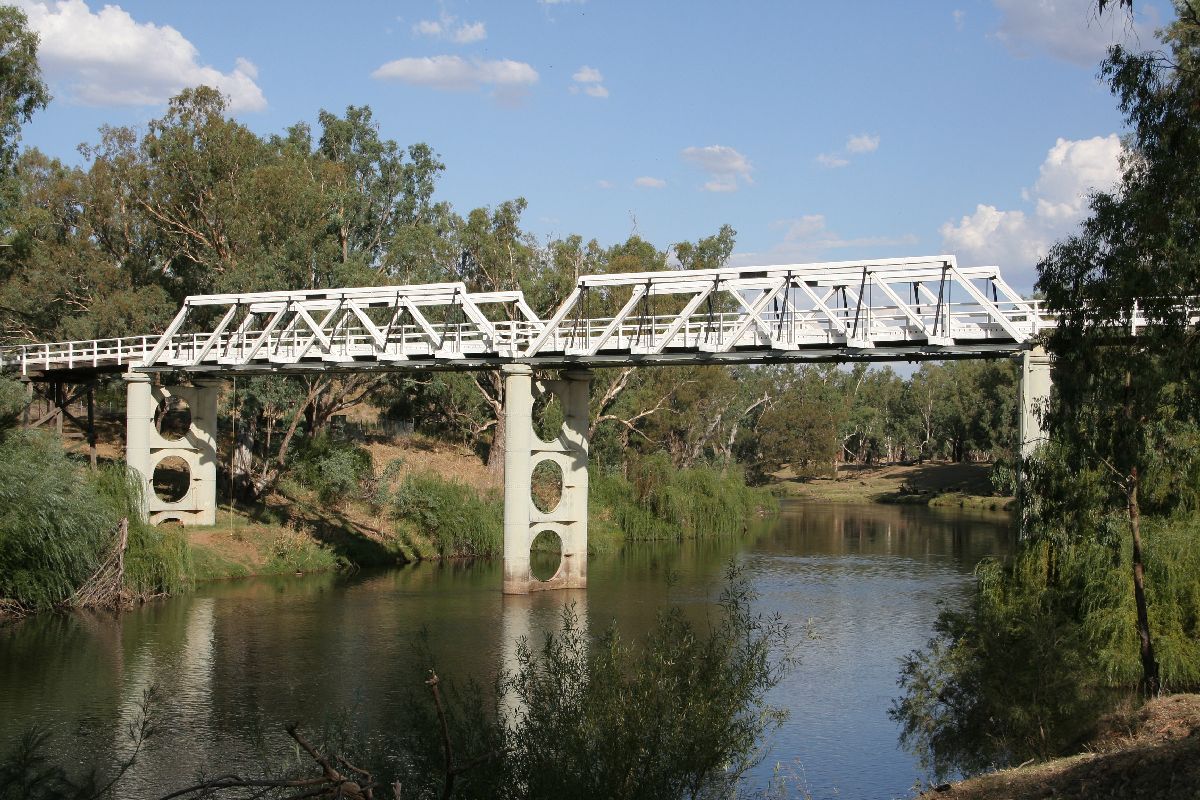

Side view of the bridge and Macquarie River.

ScabbingFlat6

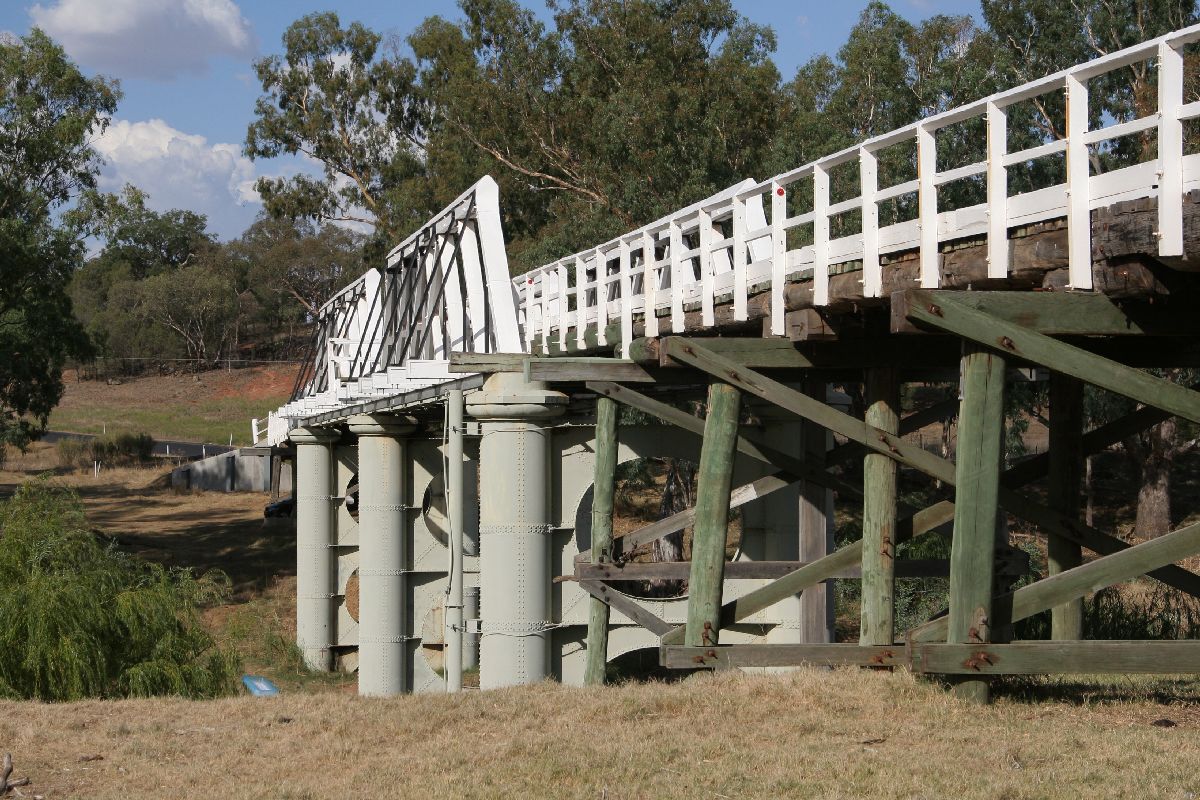

Close view from the south west side.

ScabbingFlat7

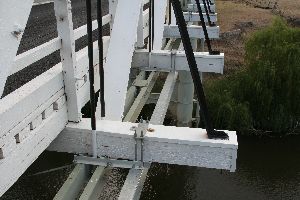

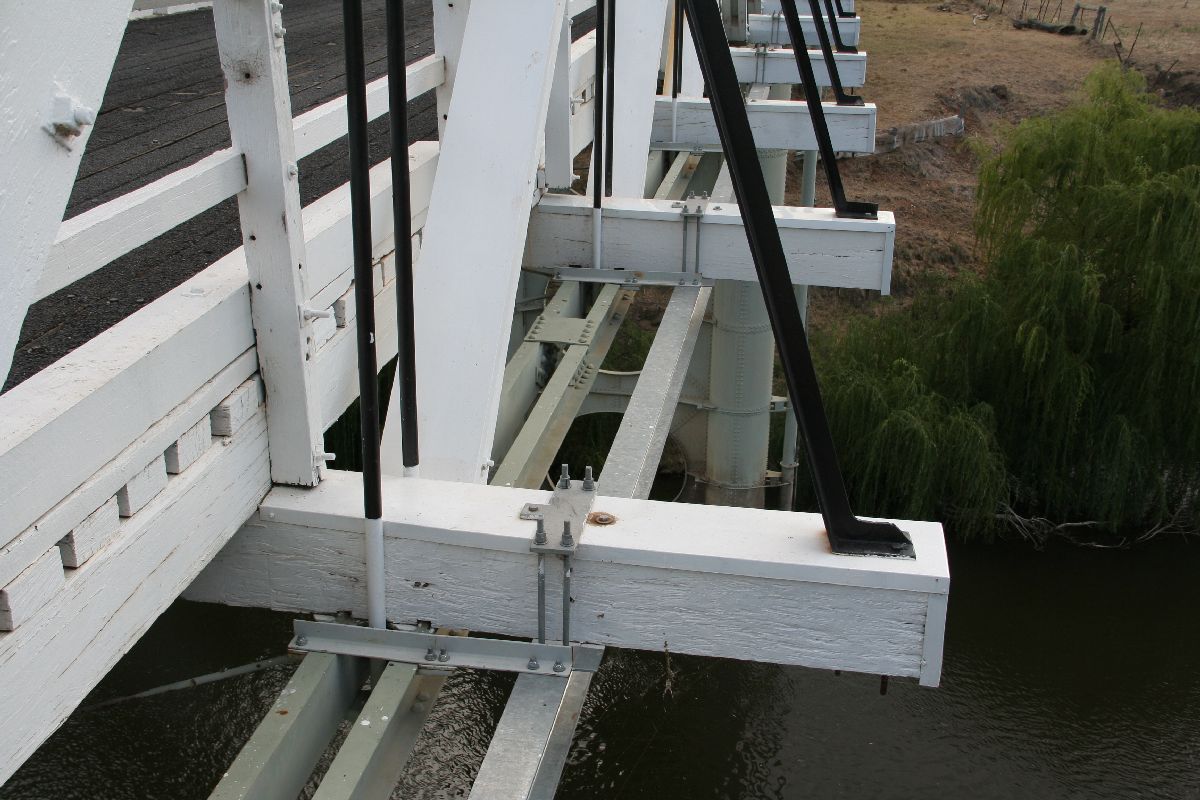

View of the bottom chord and cross beams.

ScabbingFlat8

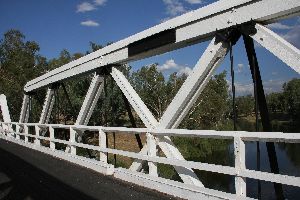

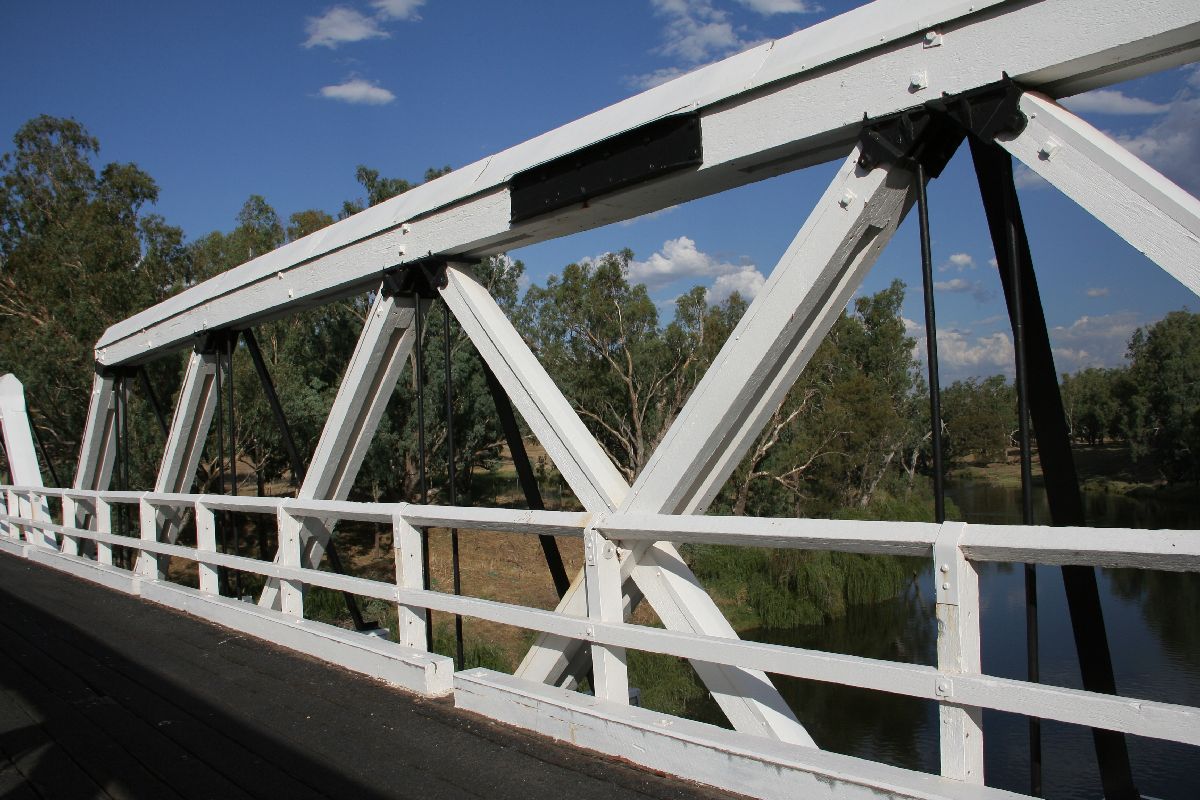

View of the truss.

ScabbingFlat9

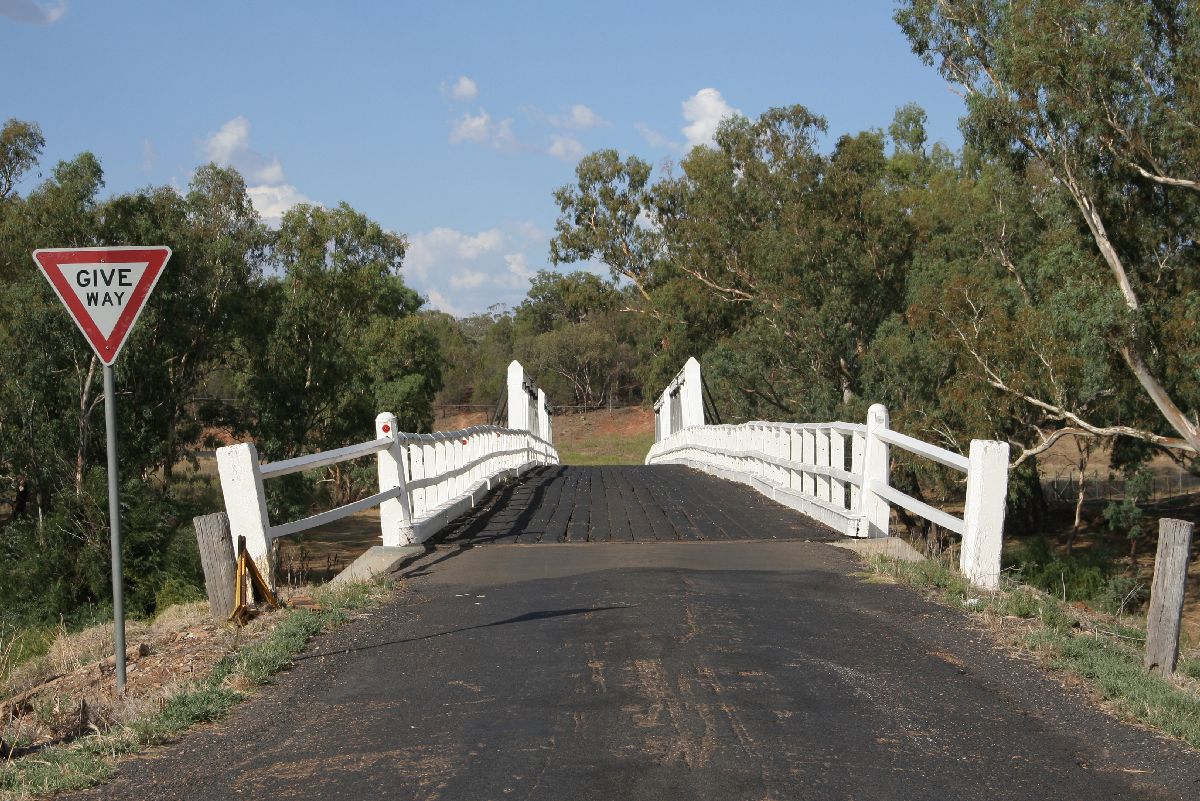

View from the south end.



Sportsmans Creek Bridge

Back to top
Sportsmans Creek Bridge is a two span truss located on Bridge Street on the south side of Lawrence, about 30km north of Grafton. It crosses Sprotmans Creek at the same location as a former Old PWD bride, and the central iron pier was reused. This bridge was built in 1911 and is not going to be preserved.

SportsmansCreek1

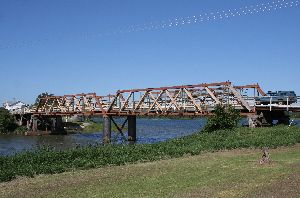

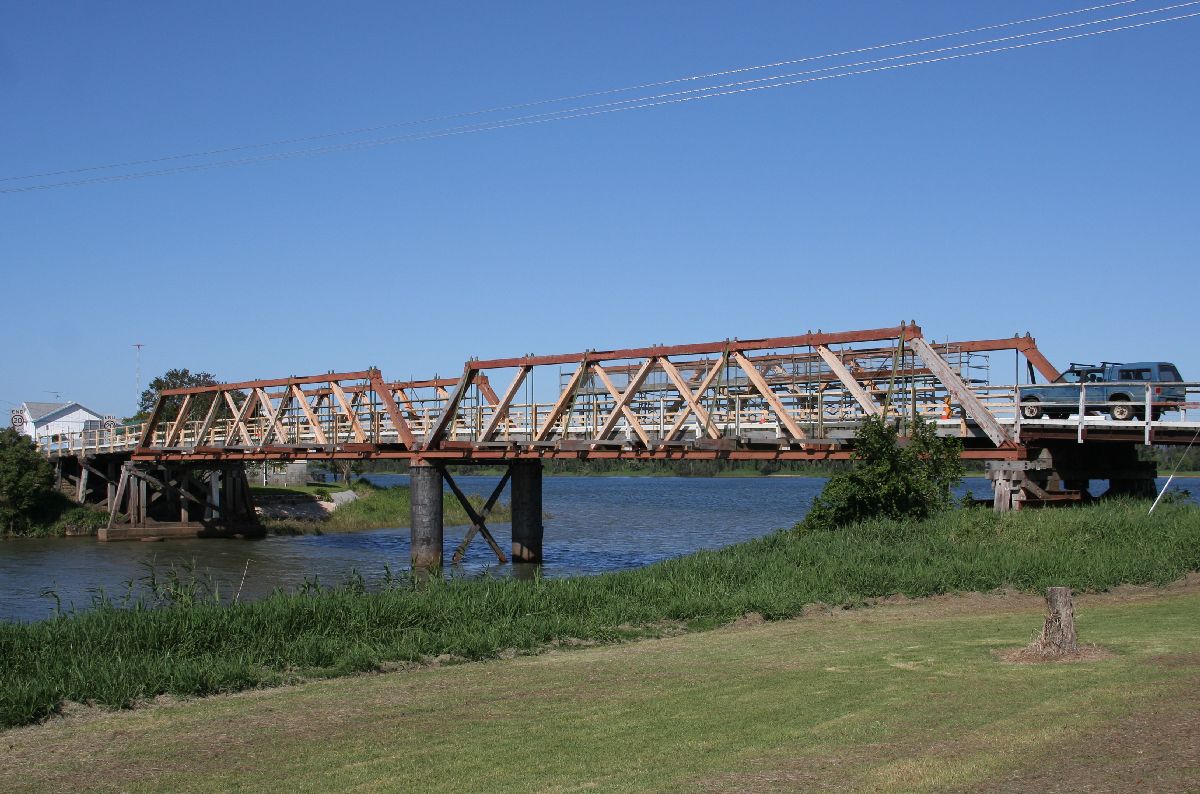

View of the bridge from the south west side.

SportsmansCreek2

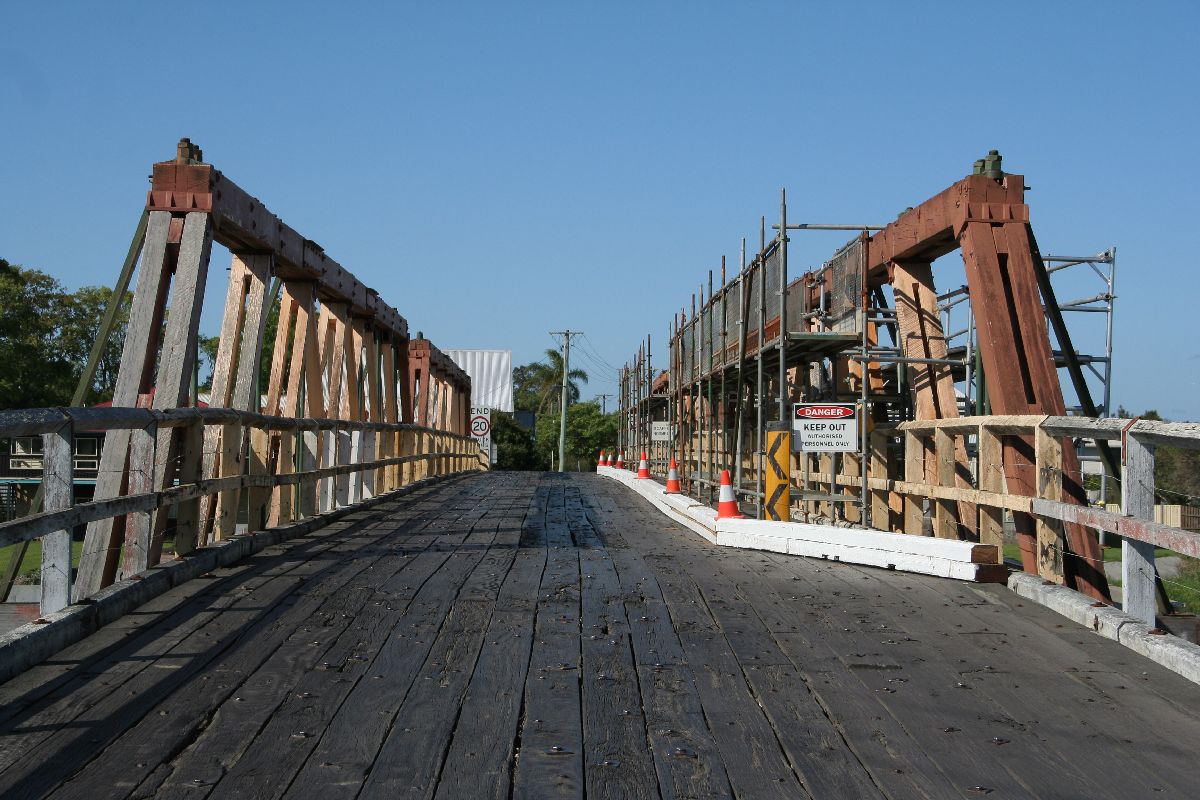

View from the south end.

SportsmansCreek3

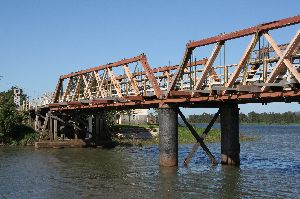

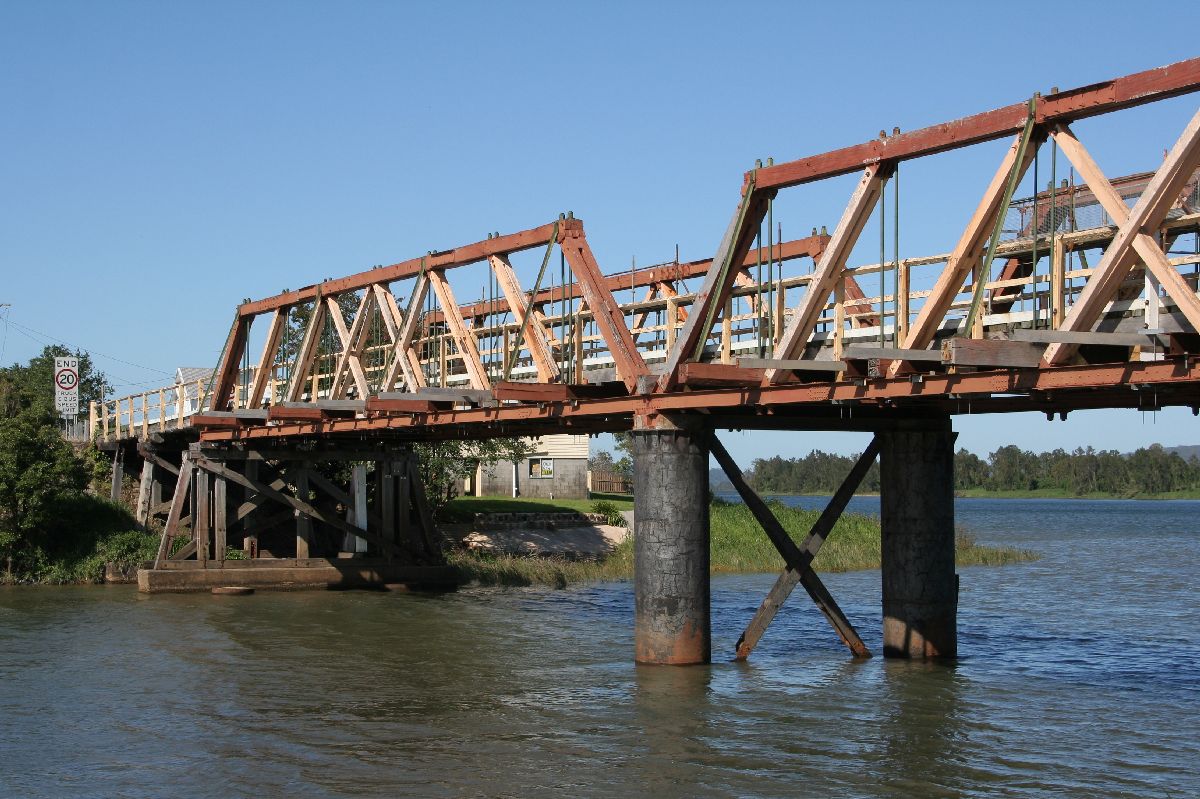

Closer view from the south west side.

SportsmansCreek4

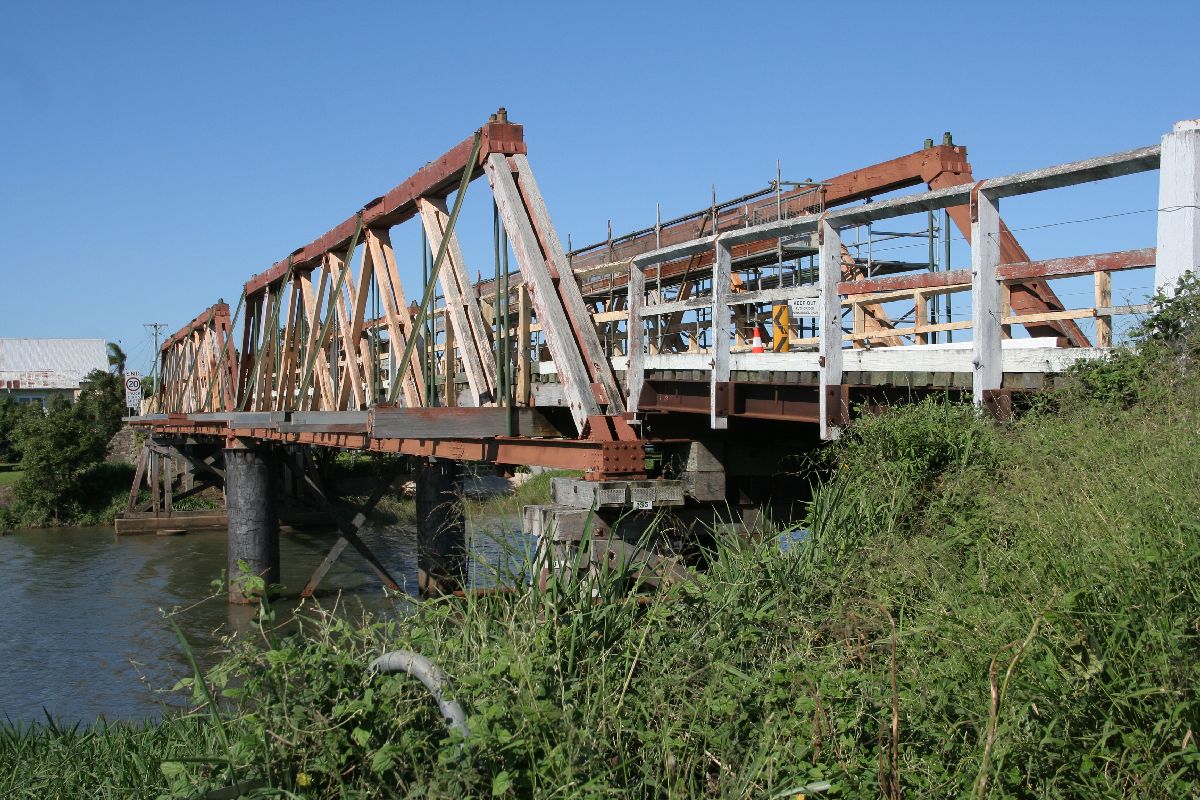

The bridge is located near a grassy park.

SportsmansCreek5

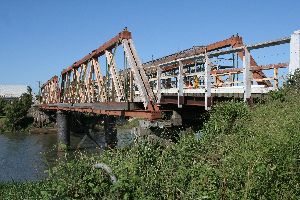

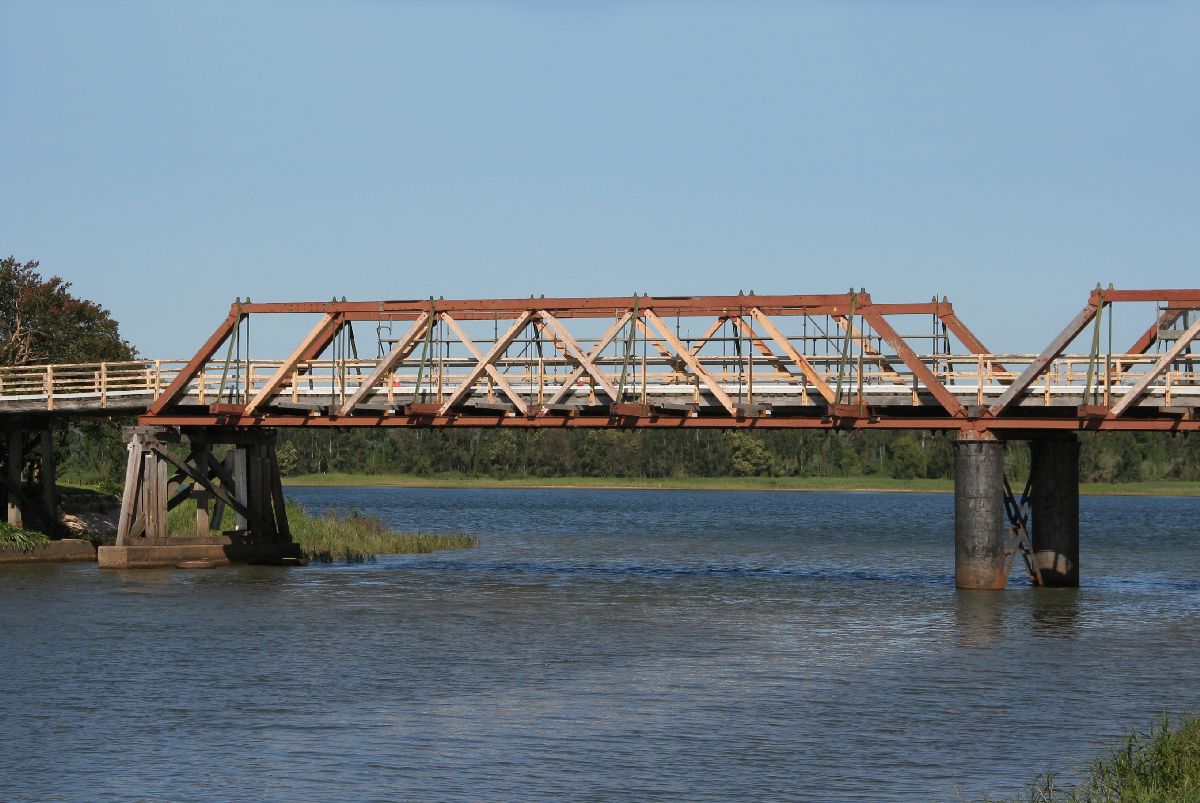

Side view of the truss.

SportsmansCreek6

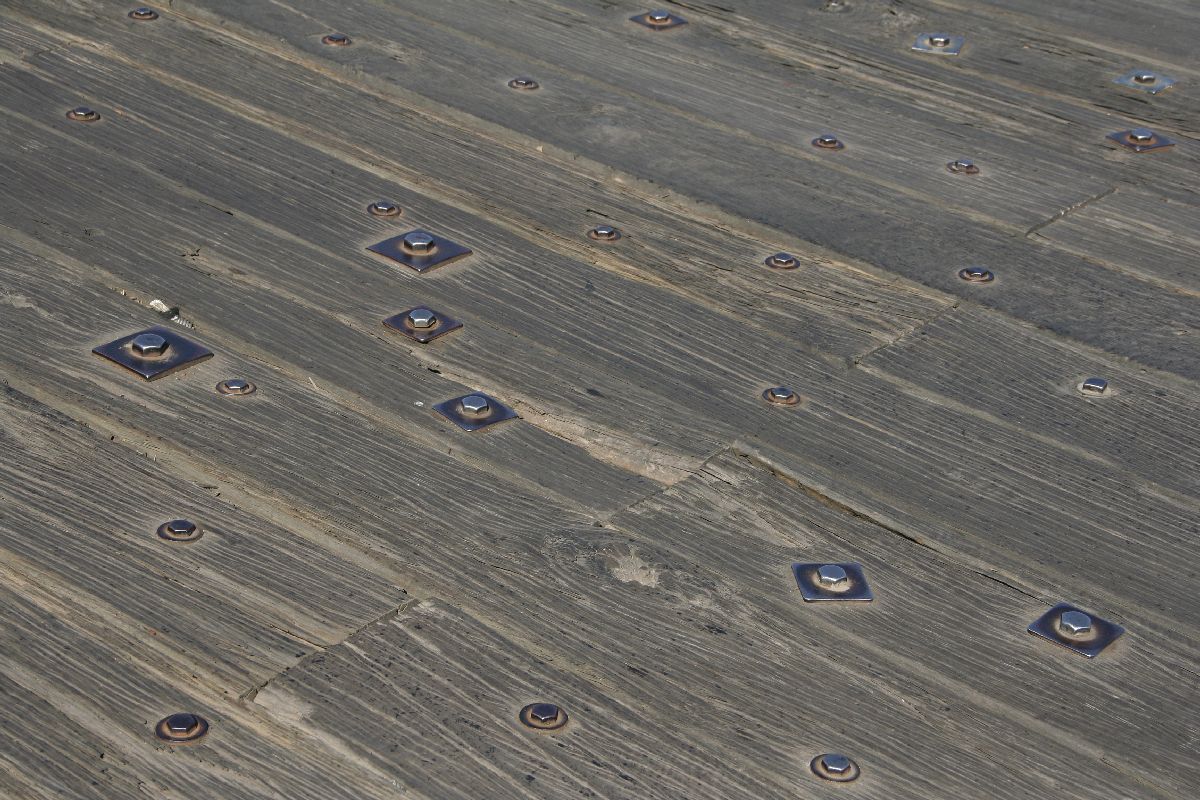

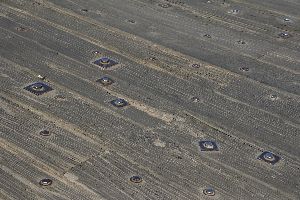

Close view of the original decking.



Waroo Bridge

Back to top
This bridge is a small single span truss over the Lachlan River. It is located on Waroo Bridge Road, just off Lachlan Valley Way, about 45km west of Forbes.  The bridge is completely covered with weather shielding and is one of the few bridges that is not painted white.  This bridge was built in 1909 and is going to be preserved.

Waroo1

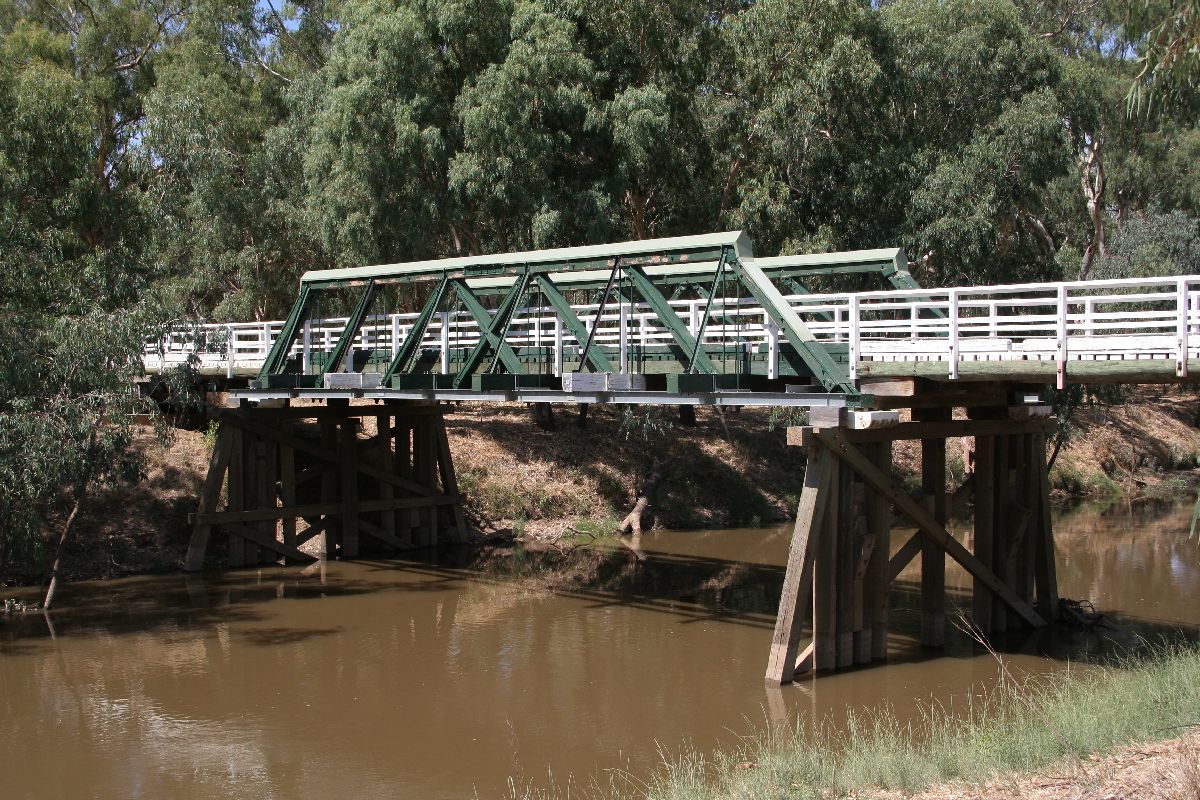

View of the bridge from the south side.

Waroo2

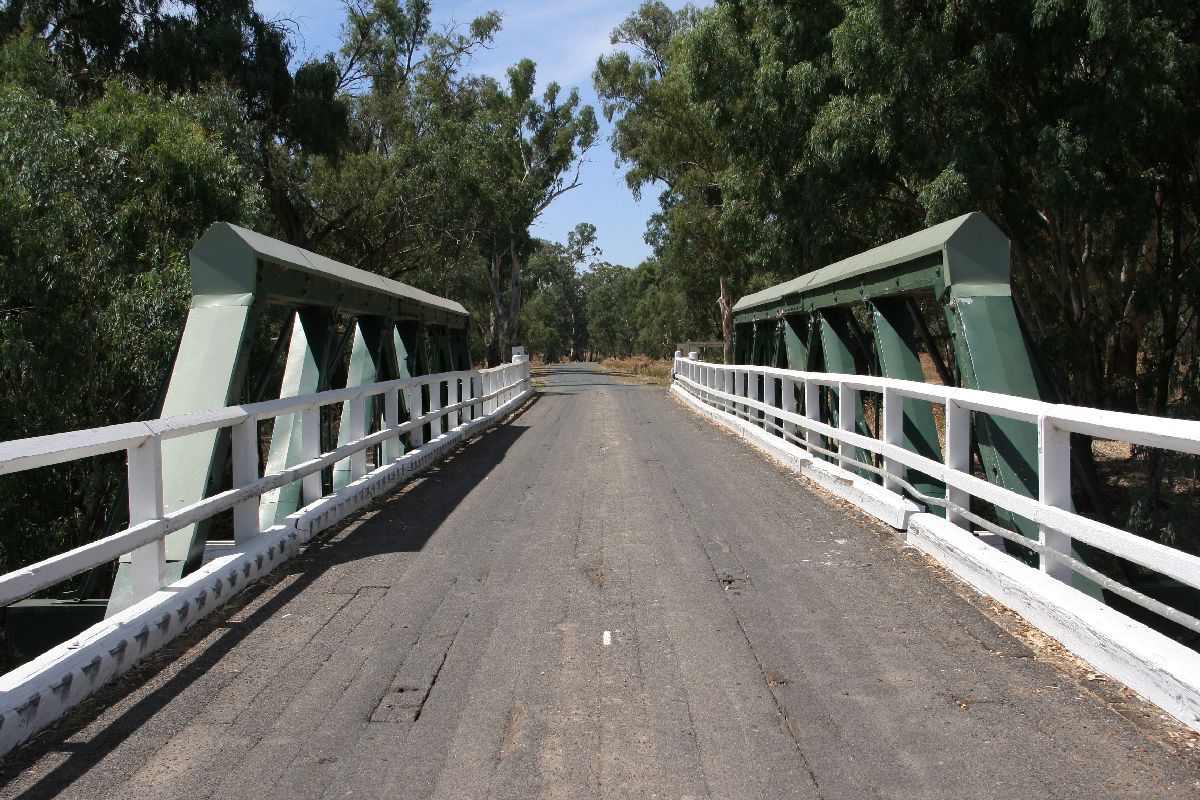

View from the south end.

Waroo3

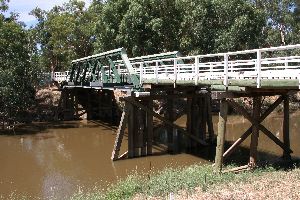

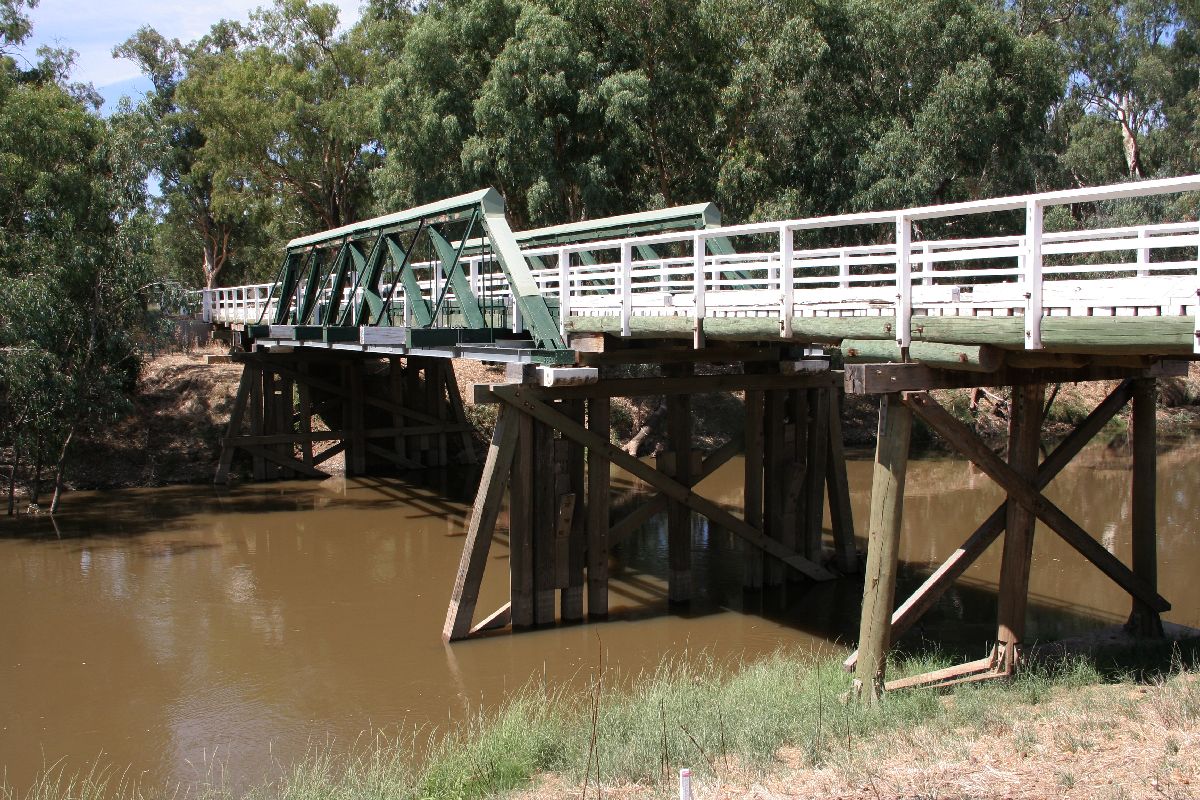

Closer view from the south west side.

Waroo4

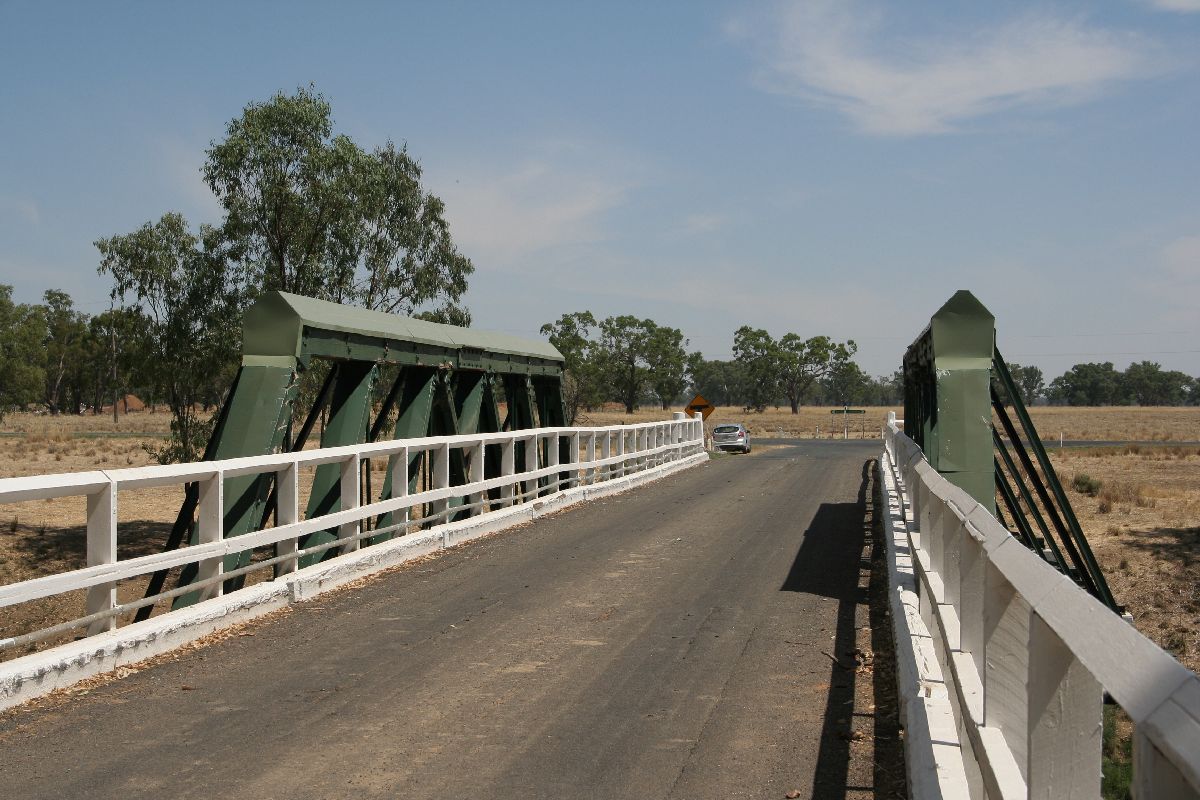

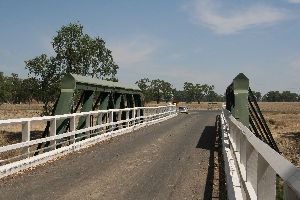

View from the north side.

Waroo5

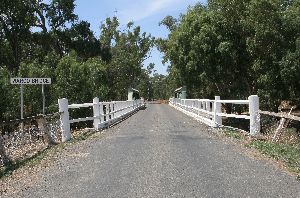

View from the south end.

Waroo6

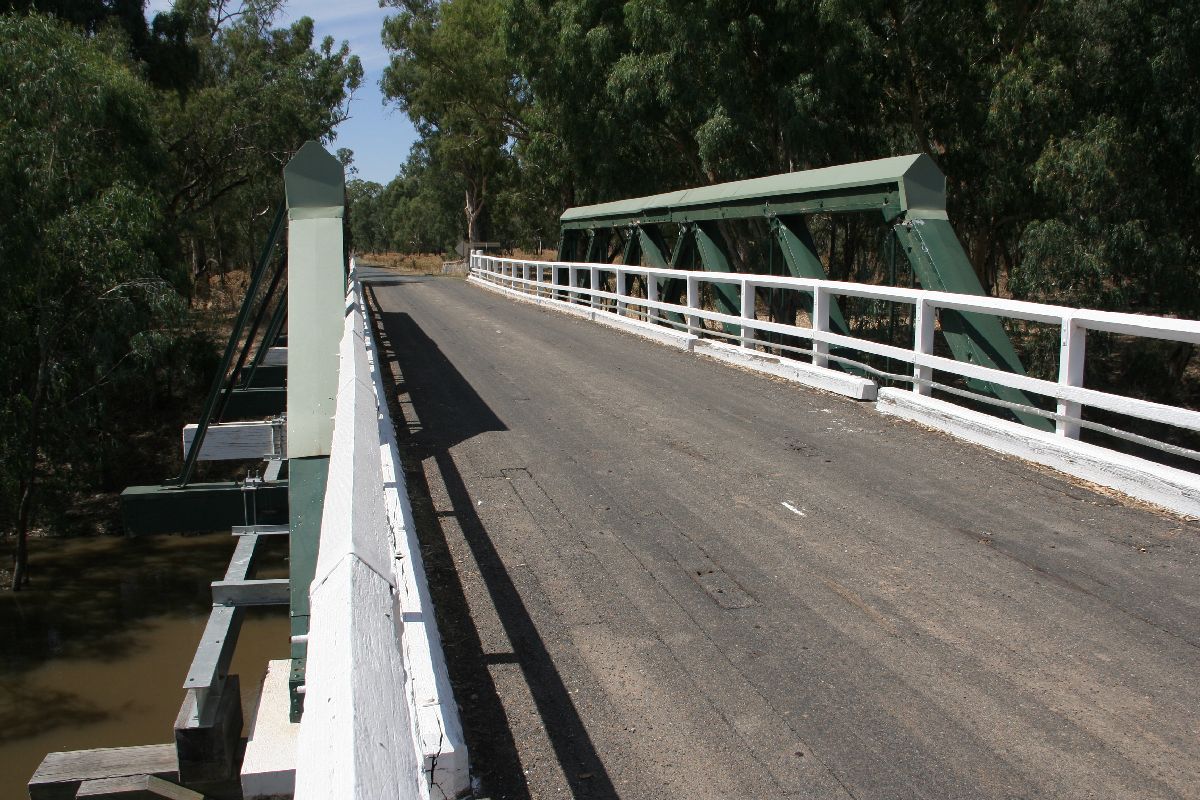

View of the deck and trusses.
